Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | ISG40-160 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Inline Transfer Vertical Pump Pipeline | Power: | Electric Motor |
---|---|---|---|
Material: | Cast Iron/ Stainless Steel | Seal: | Packing Seal,Mechanical Seal |
Voltage: | AC220V AC380V AC415V/50HZ | Application: | Irrigation And Agriculture |
High Light: | JB/T53058-93 Vertical Inline Pump,160m3/h Booster Pressure Water Pump,100m3/h Vertical Inline Pump |

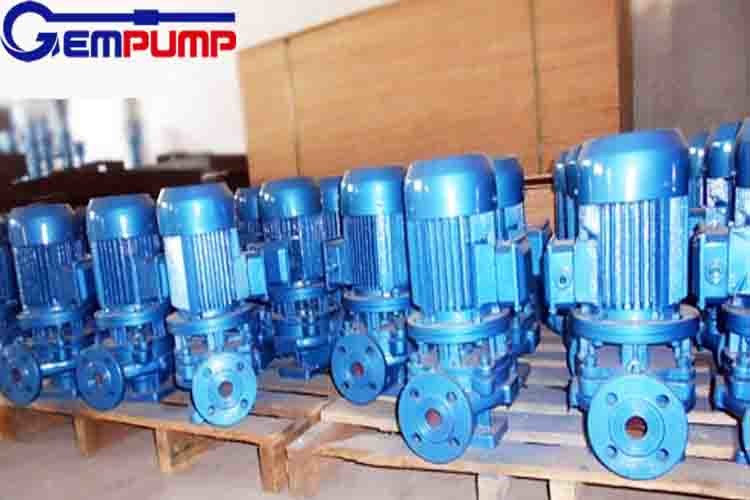

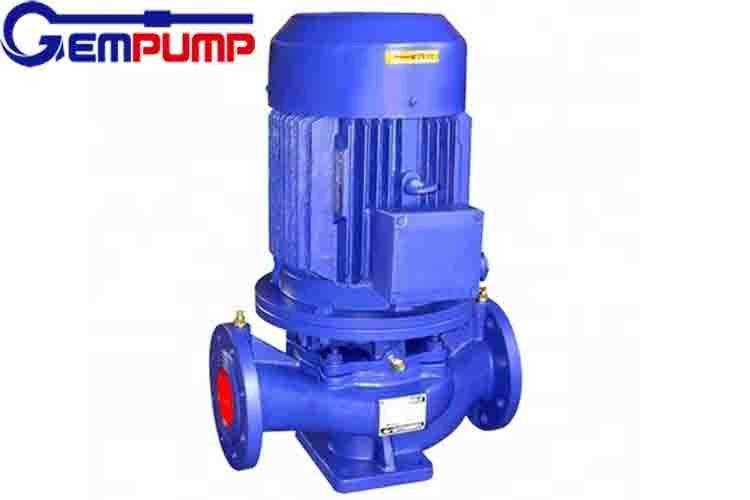

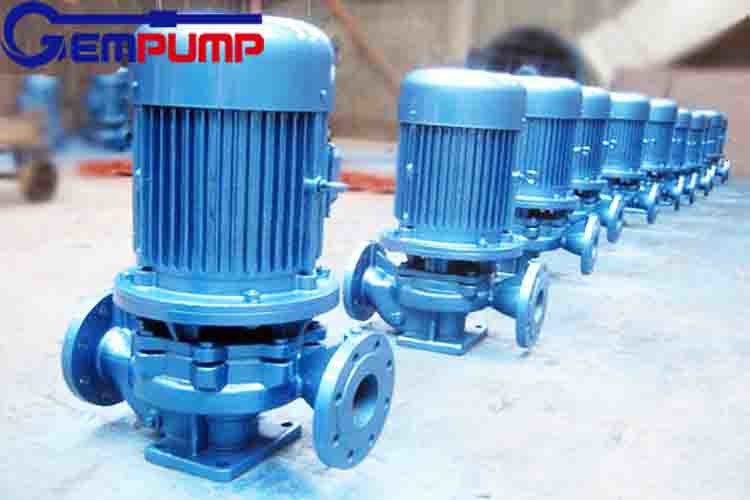

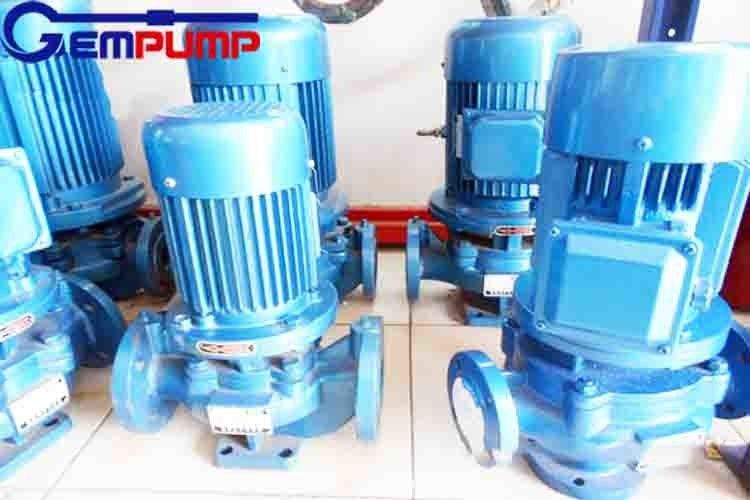

100m3/h 160m3/h Electric Pumps Centrifugal Vertical Pipeline Booster Pressure Water Pump
ISW/ISG inline centrifugal pump is a high-efficient, energy-saving product successfully designed by means of adopting the property data of IS model inline centrifugal pump and the unique merits of vertical pump and strictly in accordance with ISO2858 world standard and the latest national standard JB/T53058-93 and an ideal product to replace IS horizontal pump, DL model pump and other ordinary pumps. ISG vertical inline centrifugal pump is with the characteristics below:
1. Easy to mount. Because the inlet and outlet is located on the same central line, the pump can be directly mounted on any part of the pipeline just as a valve. Covered with a rain-proof cap, it can be operated outdoors.
2. Impeller mounted directly on the long axis of the motor, pump and motor bearing arrangement is reasonable, pump operation can effectively balance the radial and axial loads, thus ensuring the smooth operation of the pump, small vibration and low noise.
3. Mechanical shaft seal, use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide materials, anti-wearing no leakage.
4. Easy installation and maintenance, no need to open pipeline system, the rotation parts of the pump can be pulled out by removing the screws on the pump.
5. According to the needs of flow and head, the pump can be used in series or parallel operation mode.
SPECIFICATIONS FOR QW SUBMERSIBLE SEWAGE PUMP
|
|||
Product Name
|
ISW/ISG Inline Centrifugal Pump
|
||
Structure
|
Single Stage
|
||
Material
|
Cast Iron
|
||
Head
|
8.5-74m (ISG) / 7-153m(ISW)
|
||
Flow
|
1.1-1960 m3/h(ISG) / 1.1-1345 m3/h(ISW)
|
||
Standard
|
ISO9001
|
||
Application
|
suitable for industry and urban water supply and drainage system, also for agricultural, to transfer the liquid medium like water or the physical and chemical feature like water. The temperature lower than 80 ºC.
|
Vertical Pipeline Booster Water Pump Model
Outlet diameter
|
Impeller diameter
|
Flow
|
Head
|
Power
|
mm
|
mm
|
m3/h
|
m
|
kw
|
65
|
250
|
21.6
|
60
|
7.5
|
65
|
315
|
23.7
|
113
|
22
|
80
|
250
|
46.7
|
70
|
18.5
|
80
|
160
|
93.5
|
28
|
11
|
80
|
200
|
87
|
38
|
15
|
80
|
315
|
100
|
125
|
75
|
100
|
250
|
100
|
80
|
37
|
100
|
200
|
140
|
45
|
30
|
100
|
315
|
160
|
125
|
90
|
125
|
160
|
160
|
32
|
22
|
120
|
200
|
150
|
44
|
30
|
150
|
125
|
160
|
20
|
15
|
150
|
160
|
150
|
28
|
18.5
|
200
|
200
|
179
|
10
|
11
|
200
|
400
|
200
|
50
|
45
|
200
|
500
|
200
|
80
|
90
|
200
|
250
|
358
|
16
|
22
|
500
|
500
|
400
|
80
|
132
|
250
|
400
|
550
|
50
|
110
|
250
|
500
|
550
|
80
|
185
|
300
|
315
|
637
|
28
|
75
|
300
|
500
|
626
|
60
|
160
|
350
|
250
|
1200
|
20
|
90
|
350
|
315
|
1120
|
38
|
132
|
350
|
400
|
1200
|
50
|
250
|
350
|
400
|
1120
|
44
|
220
|
Q1: What is your product range?
We supply all kinds of centrifugal water pumps driven by electric or dirsel engine including single stage pumps, multistage pumps, inline pumps, split case pumps, sewage pumps, submersible pumps, deep well pumps, fire pumps, jockey pumps, booster pumps, oil pumps, irrigation pumps, chemical pumps, circulation pumps, boiler feed pumps, condensate pumps, mixed flow pumps, axial flow pumps, related pump parts and etc.
Q2: Are you a manufacturer or trading company?
We are manufacturer for nearly 10 years, and we export our water pumps by ourselves.
Q3: What information shall I provide you when I need your offer?
Normally, please send me your flow, total head, medium, medium temperature, pump material, voltage, frequency, etc so that we can quote you exactly what you need.
Q4: Can the pumps be shipped by air if I need them urgently?
Yes, of course we can deliver them by air. But I have to remind you that the freight costs will be very expensive unless you are related to Bill Gates.
Q5: Do you sell other brands water pumps? And do you accept OEM?
No, we don't sell other brands pumps, but you may send me your detailed specification requirement if our brand is ok for you. And we accept OEM.
Q6: The specification requirements of our pumps are different with what you give out,can you customize them as my data?
Yes, we can. Please send me your detailed specification requirement then we will choose the suitable pumps to quote you.
