680m3/H Multistage Centrifugal Pump

small.img.alt
small.img.alt 680m3/H Multistage Centrifugal Pump 680m3/H Multistage Centrifugal Pump small.img.alt 680m3/H Multistage Centrifugal Pump 680m3/H Multistage Centrifugal Pump small.img.alt 680m3/H Multistage Centrifugal Pump 680m3/H Multistage Centrifugal Pump small.img.alt 680m3/H Multistage Centrifugal Pump 680m3/H Multistage Centrifugal Pump
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001 CE
Model Number: DG6-25X6
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000 SET/Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Multistage Pump For Mining Industry Warranty: 1 Year
Pressure: High Pressure Theory: Multistage Centrifugal
Application: Drinking Water Treatment, Industrial Boilers Power: Electric Motor
Voltage: AC220V AC380V AC415V/50HZ Seal: Mechanical Seal,Packing Seal
High Light:

680m3/h Multistage Centrifugal Pump

,

0.6MPa Boiler Feed Pump

,

0.6MPa Multistage Centrifugal Pump

FMultistage Centrifugal Boiler Feed Hot High Pressure Sea Water Pump by Diesel or Electric Motor



Multistage Centrifugal Boiler Feed Sea Water Pump Overview:

Type DG pump is single-suction, multistage, segmental centrifugal pump. It is used for feeding water if low-middle pressure boiler as well as pumping high lift water of factory and city.It is provided for delivering similar to clear water. The temperature of the liquid for type 200DG43 pump is -20ºC~150ºC. The maximum inlet pressure is not allowed more than 0.59MPa

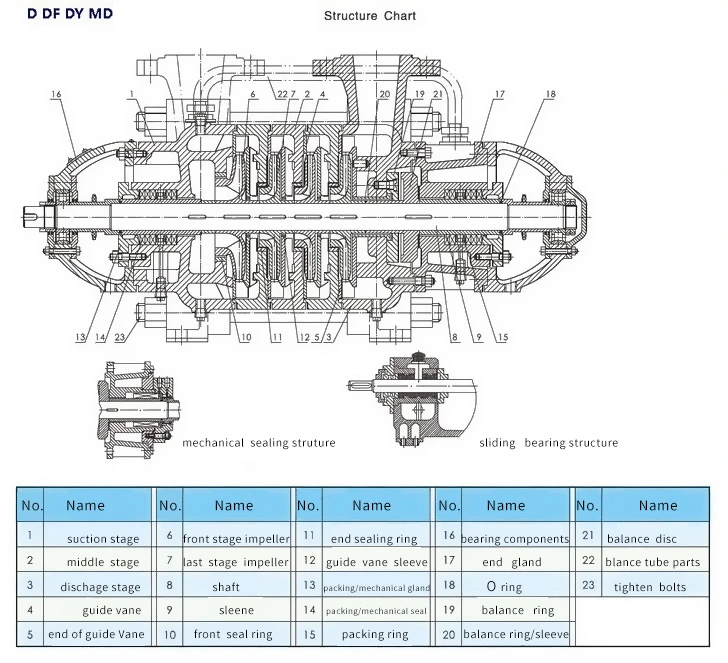

Structure:
Dg Type Horizontal Multistage Boiler Feed Pump

Working Condition : Coal Mining Dewatering Pump

Flow Range 10--680m3/h
Head range 33--840m
Range of temperature

D,MD pump: 80ºC

DG pump: 105ºC

DF pump: 20-105ºC

DY pump: 20-150ºC
Permitted maximum pressure of inlet 0.6MPa
Speed 960rpm1480rpm,2950r/min(50hz)
Voltage 380V,400V,415V,440V,660V,6KV,10KV
Inlet diameter 40-300mm

1) The inlets and the outlets of all type DG pumps are vertical upward.
2) The axial force gets balanced with the help of balance disk. The shaft seal usually uses packing seal or mechanical seal. Type DG85-67 and DG155-67 pumps use sliding bearings which get lubricated with dilute-oil. The others use rolling bearings.


The direction of rotation
The rotation of the pump rotor is clockwise looking from the motor to the pump.
The material of main parts of the pump
The medium-contacting parts are made of cast iron except that of type 200DG43 pumps are cast steel.
Complete provision range
Pump, motor, check valve, sluice valve and common bed-plate or pump bed-plate.
Please give indication of the material of main parts of pump in contract. If you have any special requirement, please contact us without hesitation.
Parameter range
Flow Q:6~346 m³/h
Head H:102~1056m
Type description


For Example:
DG25-50*3
DG--Single-suction, multistage, boiler feed water pump
25--Pump flow(m³/h)
3--Stage number

Characters

Widely used in industrial and mining factories for water supply and booster,water treatment systemsand water supply and booster for civil construction.The produces we made can adape to various condition,with characters of small size,light weight and stable performane and others.

Application

This series of pump for conveying under 80 ºC water or physical and chemical properties similar to water other liquid, is ideal for mine drainage equipment, also suitable for petroleum, chemical industry, metallurgy and factories and cities to, drainage, etc.

RFQ

1. How to get our quotation in time, pls answer following questions:

1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

2) What's the flow or capcity (m3/h, L/m)?

3) What's the discharge head (m, feet, Mpa, bar )

If you do not have any request, we will do as our normal standard.

4) Contact us to get the quotation

2.OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion

8. Warranty Period: One year, except spare parts

Tag:

6 Stage Diesel Dewatering Pump,

10.5MPa Boiler Feed Water Pump,

10.5MPa Multistage Centrifugal Pump
