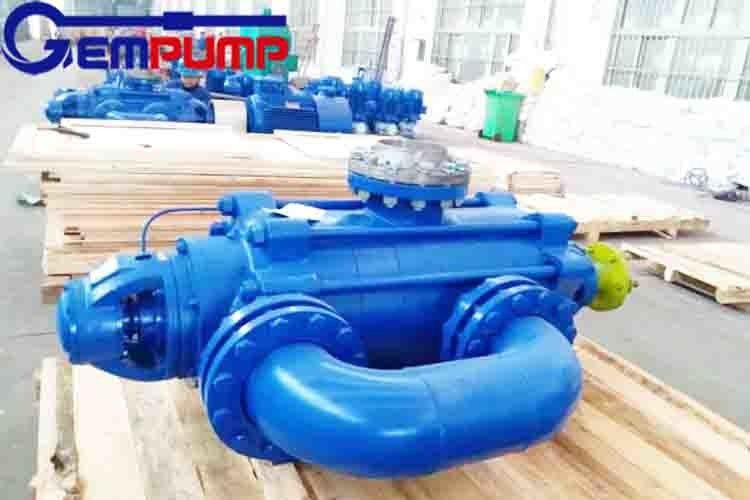

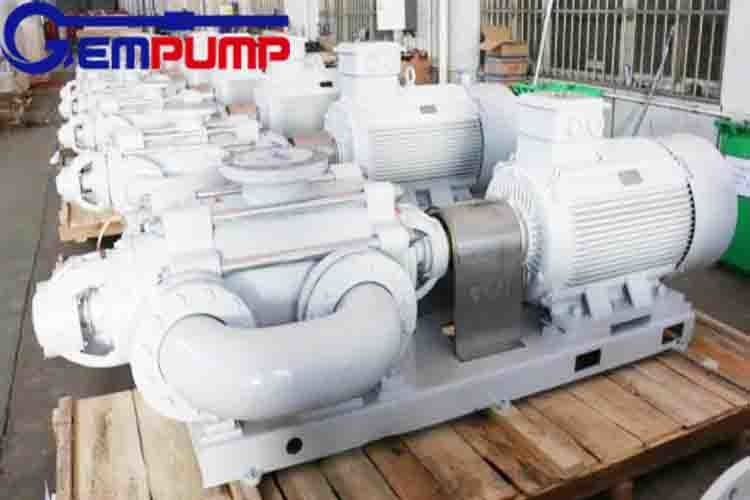

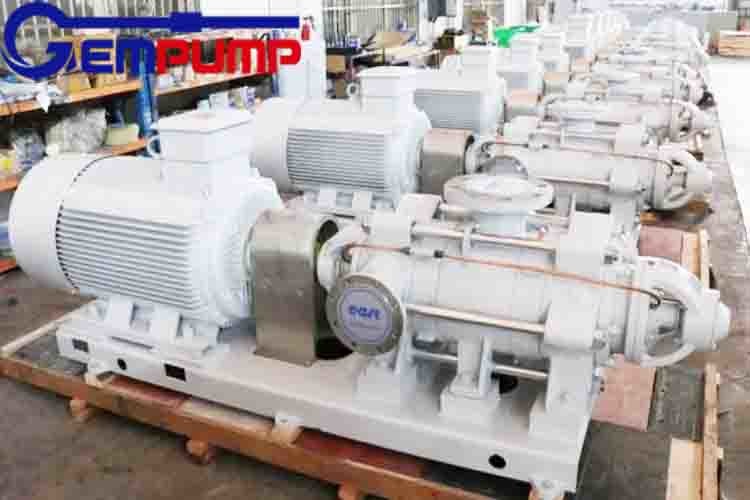

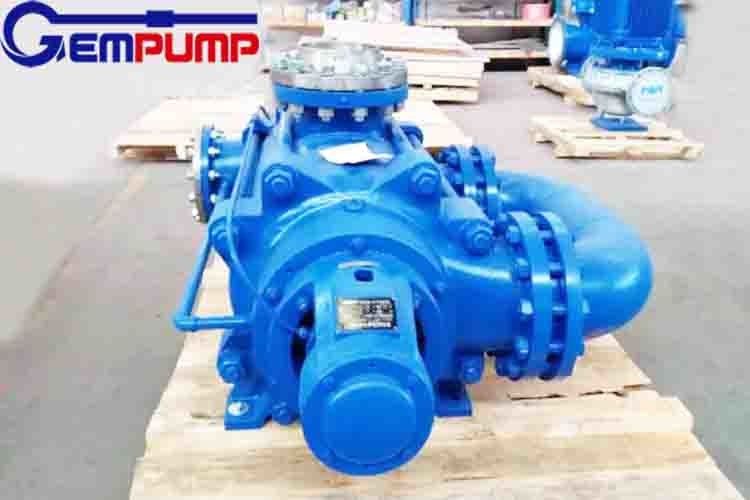

Self Balancing 0.6Mpa High Head Centrifugal Water Pump AC380V

Gempump Company Information
Shijiazhuang Jiemu Machinery Equipment Co.,Ltd is a well-known pump manufacture in China, including scientific
research, manufacture, marketing and service.It owns 16 sub-companies, 8 large manufacturing bases all over china.The sales revenue in 2014 reaches 400 Million dollars.Our products range covers Centrifugal Pump,Stainless steel Multi-stage Pump, Submersible Pump,
Fire-fighting pump,Magnetic Pump,Diaphragm Pump,Slurry Pump,etc.

High Lift Head Horizontal Water Pump Features:

1. Advanced hydraulic models with high efficiency and wide performance range.
2. Smooth operation and low noise.
3. Both packing seal and mechanical seal are available.
4. Completely sealed shaft which is non-contact with fluid.
5. The pump material can be changed to pump corrosive fluids. D(F) stands for a pump which is suitable for corrosive fluids,but its performance and is totally the same to D series.

1. The pump set mainly consists of bearing housing,inlet and out section,middle section,guide vanes.
2. The pump inlet is horizontal and outlet is vertical;The balance hose on the inlet is connected back to the water inlet side.
3. Between bearings structure.The rotary part consists of shaft,impellers and a balance disk.
4. The gaps between pump inlet section,middle section and outlet section are smeared by molybdenum disulfide compound calcium-based lubricating grease as the sealings. The gaps of rotary part and static part are sealed seal rings,guide vane sleeve and packing.
5. Standard shaft sealing is packing,can be customized as mechanical seal.

Horizontal Multistage Electric Pump Application:

1. Widely used in mining,factories and city water supply and drainage.
2. Suitable to pump clean water and fluids have close physical and chemical characters of water,or fluids like hot water,oils,corrosive material and particles.
