Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | DG45-50X6 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Multistage Centrifugal Water Pump | Warranty: | 1 Year |
|---|---|---|---|
| Pressure: | High Pressure | Theory: | Multistage Centrifugal |
| Application: | Drinking Water Treatment, Industrial Boilers | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Seal: | Mechanical Seal,Packing Seal |
| High Light: | D Typ Multistage Horizontal Centrifugal Pump,1480r/min High Pressure Centrifugal Water Pump,1480r/min Multistage Horizontal Centrifugal Pump |
||

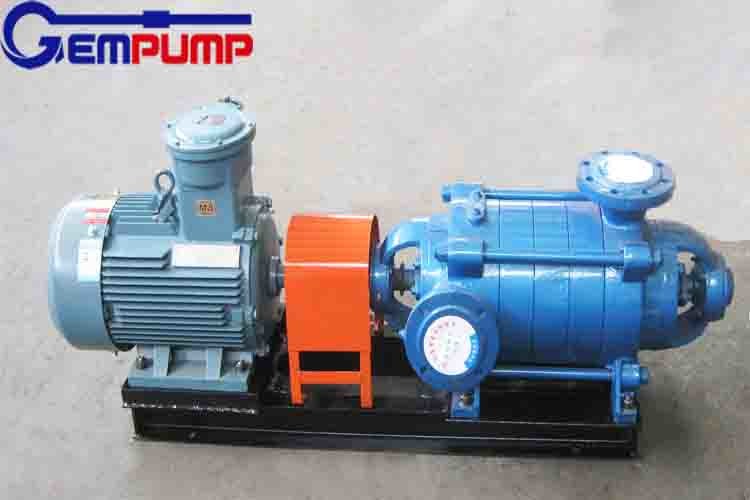

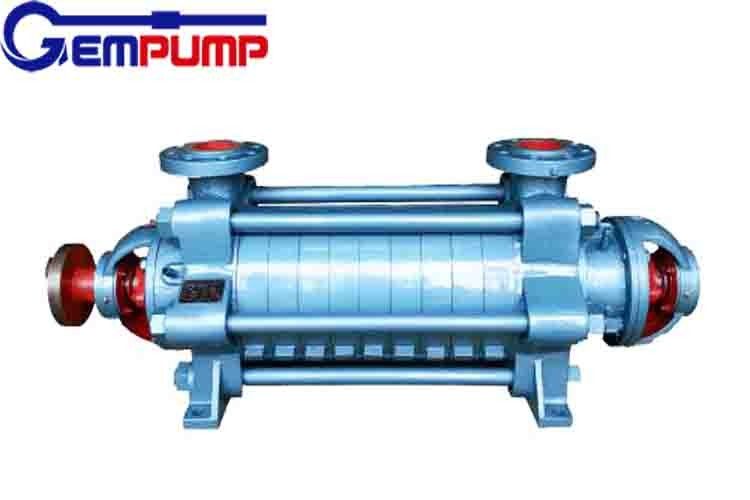

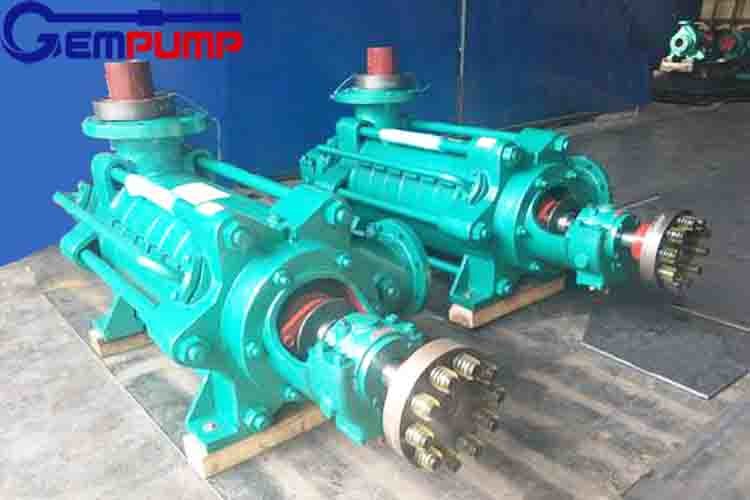

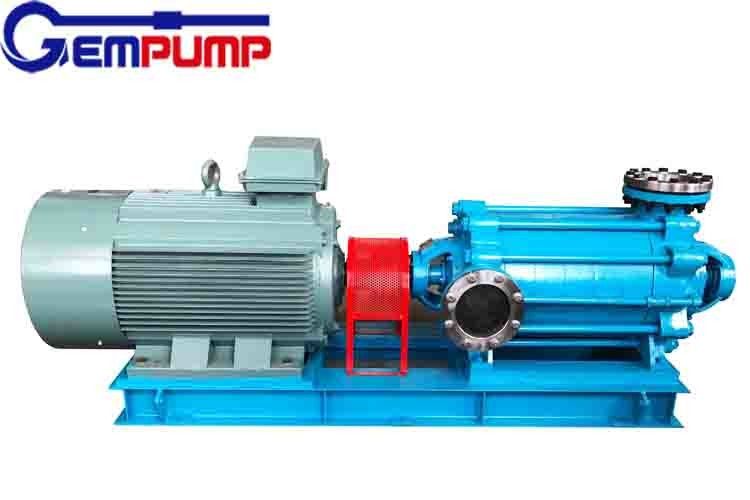

D Type China Manufacture High Pressure Horizontal Multistage Centrifugal Pump
D type China manufacture high pressure multistage horizontal centrifugal pump
D type pump is horizontal, single-suction multi-stage, sectional centrifugal pump. With high efficiency, performance range, operation safety smooth, low noise, long life, easy installation and maintenance etc. For conveying water or physical chemical properties similar to other liquid water. Can also by changing the pump flow components material, seal form and increase the cooling system used in conveying hot water, oil, corrosive or containing abrasive media. Product executive JB/T1051-93 "multistage centrifugal pump water of" types and basic parameters for standard.
Horizontal Centrifugal Pump Scope of Application:
Suitable for industrial and urban water supply and drainage, high-rise building charging water supply, garden sprinkler irrigation, fire booster, distant distance water delivery, heating, bathroom, etc, cold and hot water circulation pressurization and equipment matching, etc., especially suitable for small boiler feed water.
Multistage Centrifugal Pump Product features:
1, hydraulic model is advanced, high efficiency, performance range.
2, pump smooth operation, low noise.
3, shaft seals use soft packing seal or mechanical seal, seal, and safe and reliable, simple structure, convenient maintenance.
4, shaft to all the seal structure, ensure the not contact with the media, no corrosion and long service life.
D Type High Pressure Multistage Centrifugal Pump Technical Parameter
| Item | D Horizontal Multistage Centrifugal Pump |
| Model | D series |
| Material | Cast iron or stainless steel |
| Color | Blue and adjustable |
| Mode | Horizontal |
| Drive | Belt or coupling |
| Impeller | Open impeller |
| Seal | Soft packing seal or mechanical seal |
| Speed | 2950r/min,1480r/min |
| Theory | Centrifugal pump |
| Structure | Multistage pump |
| Usage | irrigation, transfer water and fire |
| Power | Electric |
| Standard or Non | Standard |
| Outlet diameter | 45-200mm |
| Capacity | 3.75-850m³/h |
| Head | 17-1000m |
| Power | 3-1800kw |
| Warranty | 1year |
| Certificate | ISO9001:2008 |
| OEM | Acceptable |
| Feature | Cheap, mature technology, widely used |
Capacity: up to 125L/s (450m3h), or as per any request.
Head: up to 960m(3150ft), or as per any request.
Working temperature: up to 80°C
Design pressure: 4.0Mpa/6.3Mpa/10.0Mpa/16Mpa or as per any request.
Nozzle: up to 250mm or special design. Flange standard can be DIN, ANSI or other standard.
