Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | D25 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Multistage Centrifugal Water Pump | Warranty: | 1 Year |
|---|---|---|---|
| Pressure: | High Pressure | Theory: | Multistage Centrifugal |
| Application: | Drinking Water Treatment, Industrial Boilers | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Seal: | Mechanical Seal,Packing Seal |
| High Light: | D25 Horizontal Multistage Centrifugal Pump,D25 Boiler Feed Pumps,37KW Boiler Feed Pumps |
||

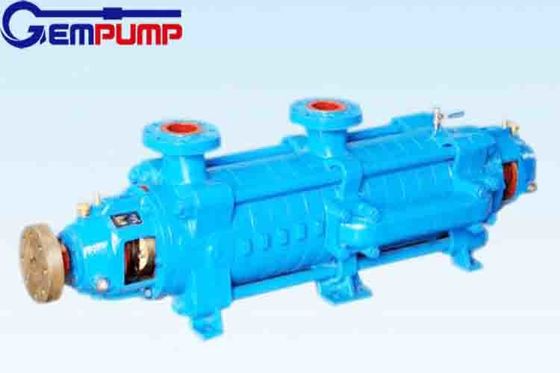

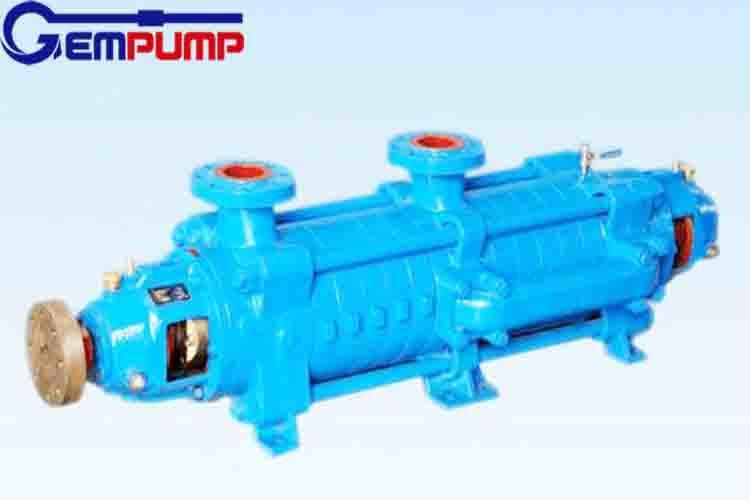

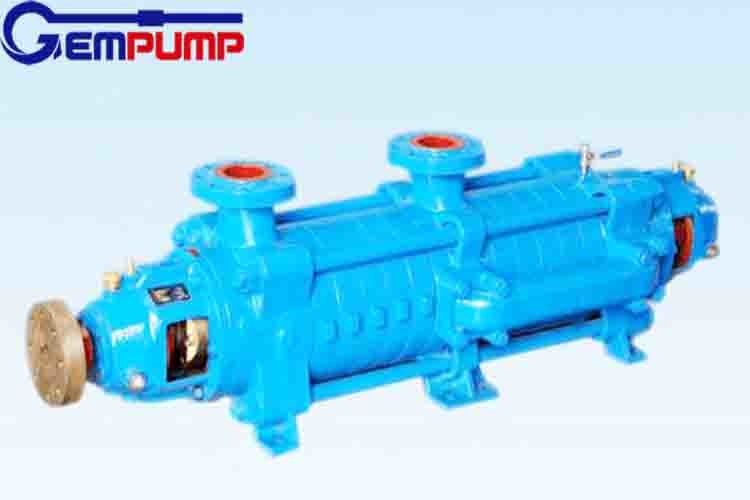

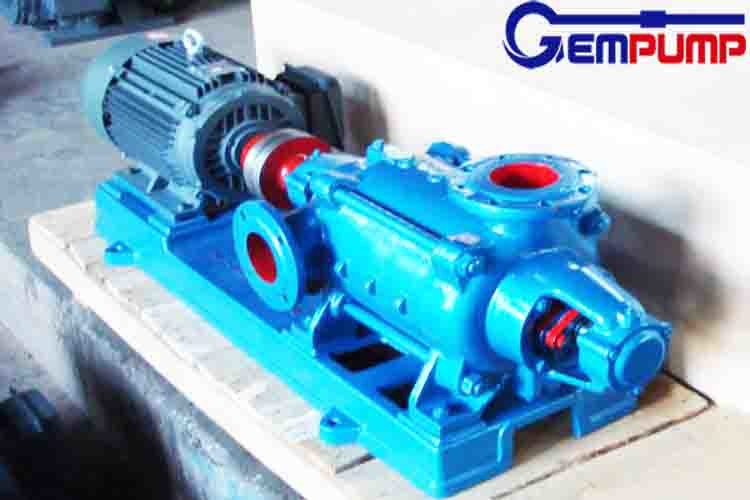

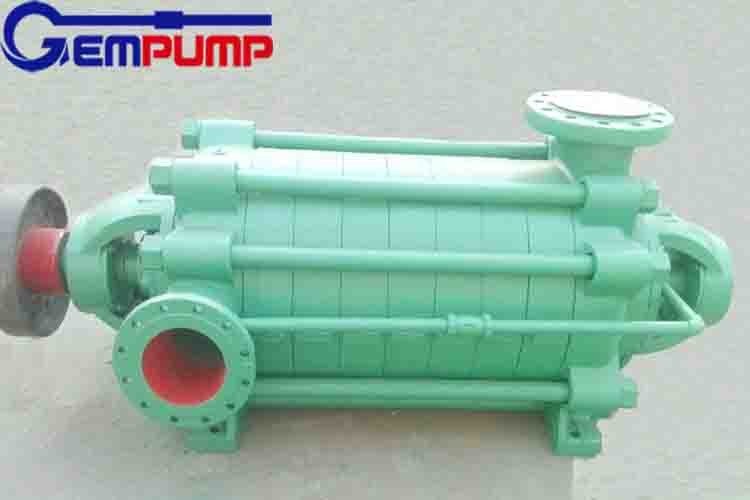

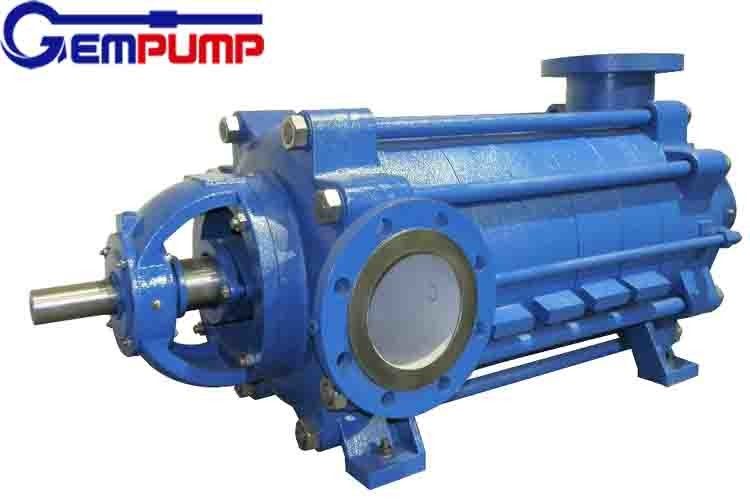

High Pressure Boiler Feed Pumps Electric Horizontal Multistage Centrifugal Water Pump
High Pressure Boiler Feed Pumps Electric Horizontal Multistage Centrifugal Water Pump is a common horizontal centrifugal pump used in conjunction with boilers. This type of centrifugal pump adopts the nationally recommended hydraulic model with high efficiency and energy saving, with wide performance range, high operating efficiency. The boiler feed water pump adopts horizontal installation and multi-stage stage type on the structure, which is stable in operation and convenient in installation and maintenance.
High Pressure Boiler Feed Pumps Electric Horizontal Multistage Centrifugal Water Pump overview:
High Pressure Boiler Feed Pumps Electric Horizontal Multistage Centrifugal Water Pump Technical data:
| Flow | Head | Power | Inlet diameter | Outlet diameter |
| m3/h | m | kw | mm | mm |
| 6.3 | 75 | 4 | 40 | 40 |
| 7.5 | 98 | 5.5 | 40 | 40 |
| 3.7 | 153 | 7.5 | 40 | 40 |
| 6.3 | 175 | 7.5 | 40 | 40 |
| 7.5 | 196 | 11 | 40 | 40 |
| 3.7 | 280 | 15 | 40 | 40 |
| 6.3 | 300 | 15 | 40 | 40 |
| 12.5 | 75 | 5.5 | 50 | 40 |
| 15 | 92 | 7.5 | 50 | 40 |
| 30 | 110 | 18.5 | 65 | 65 |
| 15 | 204 | 30 | 65 | 65 |
| 25 | 240 | 37 | 65 | 65 |
| 30 | 275 | 45 | 65 | 65 |
| 46 | 90 | 22 | 80 | 65 |
| 55 | 108 | 30 | 80 | 65 |
| 55 | 230 | 75 | 80 | 80 |
FAQ
Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international
courier.Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also
acceptable.The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
