Home / Products / Multistage Centrifugal Pump

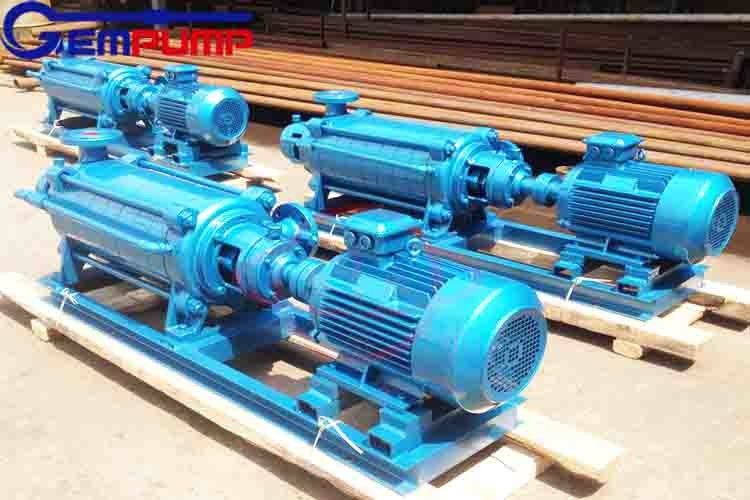

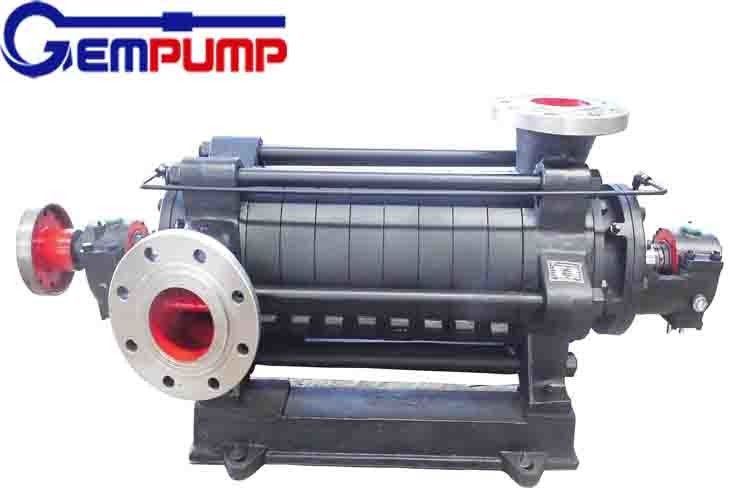

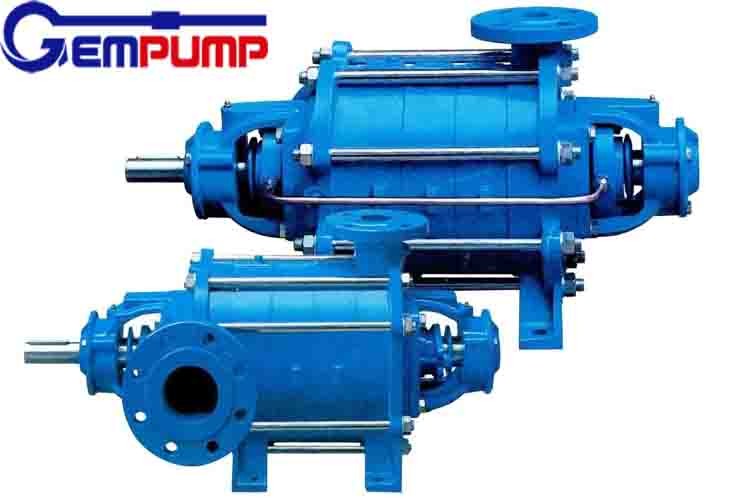

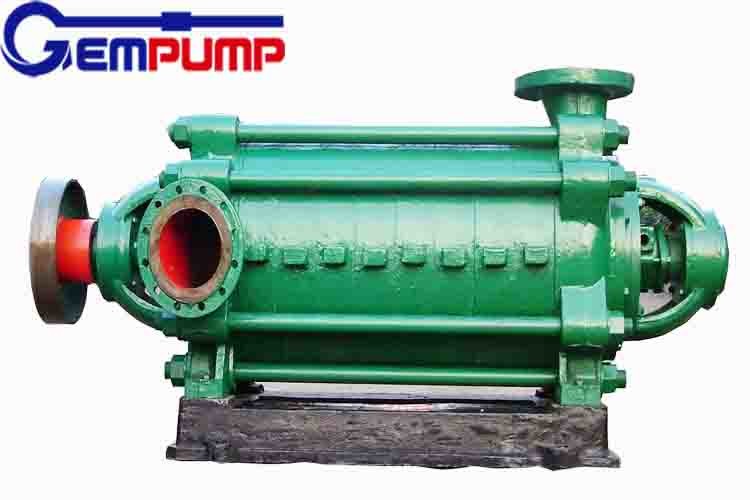

Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw

small.img.alt
small.img.alt Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw small.img.alt Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw small.img.alt Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw small.img.alt Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001 CE
Model Number: D25
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000 SET/Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Horizontal Hot Feed Water Pump Warranty: 1 Year
Pressure: High Pressure Theory: Multistage Centrifugal
Application: Drinking Water Treatment, Industrial Boilers Power: Electric Motor
Voltage: AC220V AC380V AC415V/50HZ Seal: Mechanical Seal,Packing Seal
High Light:

3kw multistage high pressure centrifugal pump

,

single suction High Pressure Centrifugal Pump

,

450kw Multistage Centrifugal Pump

D Centrifugal Horizontal Hot Feed Water Boiler Pump Multistage Pump



Centrifugal Multi-stage Water Pump Product Overview



D, DG single suction multistage pumps are suitable to deliver the water or other liquids with similar physical.

D single suction multistage pumps are suitable to deliver the water or other liquids with similar physical and chemical properties as that of water, which temperature not exceed 80oC, are used for water supply duties in municipal engineering and factories as well as water drainage in mining.



DG pumps are suitable to deliver the water or other liquids with similar physical and chemical properties as that of water, which temperature not exceed 110oC, are used for handling feed water in small and medium power plant as well as chemical and other industries.



Type D/ MD/ DF/ DY multistage horizontal centrifugal pump consists of stator, rotator, bearing and shaft seal:

1) Stator: main parts is suction casing, stage casing, discharge casing and diffusor, they are screw up by poles to become a working house. The suction direction of D pump is horizontal, its discharge direction is upword; the discharge direction of MD/DF/DY pumps are upward, the suction direction is horizontal, they can be made upword according to user requirement.



2) Rotor: it is consist of shaft, impeller, balance disc, and shafe sleeve etc. Shaft supplied power to impeller. The axial force is balanced by disc. The shaft sleeve is mounted on shaft to protect shaft.



3) Shaft seal: it is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the seal house have some pressure water to cool. Lubricate and seal pump. Type D pump pressure water come from pump itself; type MD/DF/DY pump pressure water is come from pump itself or outer water, type MD/DF/DY pump usually adopt mechanical seal.



4) Drive: The pump is driver directly by motor through coupling.



Centrifugal Boiler Pump Performance Range



Capacity Q = 3.75 ~ 850 m3/ h

Head H = 19 ~ 816 m

Inlet and outlet diameter of the pump : 40~300mm



Multi-stage Pump Advantages



1. High efficiency and energy saving

2. Advanced process equipment

3. Horizontal structure and good stability

4. Smooth and safe operation
5. Low noise and long life
6. Easy to install and easy to maintain

7. Wide range of performance



D Centrifugal Horizontal Hot Water Pump Application



1.Pressure boosting installations
2.Boiler feed water plants
3.Hot and cold water circulation
4.Fire fighting



How to choose a suitable Horizontal Multistage Water Pump

Single Suction Multistage High Pressure Centrifugal Pump 3kw-450kw 0



How to choose a suitable pump ?
1. What's kinds of liquid ? Clean water , Sewage ,Sand ?
2. What's the flow rate /capacity per hour ?
3. What's the lift/ head ? Please check the above picture , we need the Veritical height (H), The length of pipe ( L ), and the dredging Depth (D) .
4. The max size of the solid particle .



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is15-20days

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Tag:

6 Stage Diesel Dewatering Pump,

10.5MPa Boiler Feed Water Pump,

10.5MPa Multistage Centrifugal Pump
