Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 50WQ20-7-0.75 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | WQ Submersible Waste Dredge Pump | Material: | Cast Iron |
|---|---|---|---|
| Application: | Sewage,Slurry,Tailing,Mine | Theory: | Centrifugal Water Pump |
| Warranty: | 1 Year | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V 50HZ | Place Of Origin: | Shijiazhuang China |
| High Light: | 5 hp submersible sewage pump,2900RPM Submersible Sewage Pump,2900RPM Submersible Wastewater Pump |
||

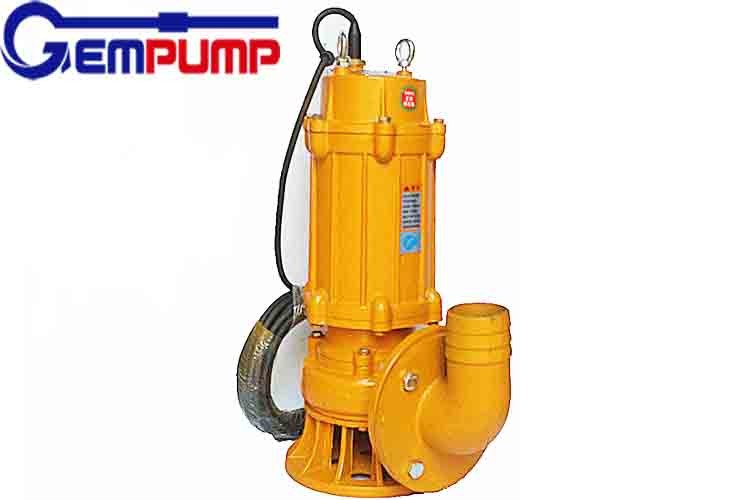

Automatic Control Portable Sewage Sea Water Submersible Pumps Sewage Pump
About the WQ Pump Products
The WQ series of submersible sewage pumps were developed on the basis of absorbing and digesting foreign advanced technology concerning the same type of products. They feature high efficiency, no clogging, winding prevention, automatic coupling, simple installation, a high degree of reliability, automatic control, no need to be attended by people, etc. and have a unique effect in discharging solid particles and long-fibre waste.
The discharge bore of the pumps of this series is 50-600mm, capacity 6-6,000m3/h, head 5-80m and motor power 1.5-560 kw.
Only products of some of the specifications are listed in the brochure. Please contact the company for special models and specifications.
Main uses and conditions of application
The WQ series of submersible sewage pumps are mainly used in such sectors as industry, municipal construction, water conservancy, tap water, hospital, building, hotel, restaurant and sewage treatment plant for discharging waste water, sludge, urban domestic waste water (including cases where there are corrosive media), rainwater, etc
The WQ series of submersible sewage pumps feature a compact structure, a small size and high efficiency. Automatic water-level control can be achieved and an automatic protection device and control system can be made available based on the user's requirement.
Conditions of application
1. The PH value of the liquid to be conveyed is to be 4-10.
2. The medium to be conveyed is to be ≤40℃.
3. The average density of the medium is not to exceed 1, 050kg/m3.
4. Depth of submersion: maximum 20m.
5. Lowest water level: see the table of installation dimensions.
About the structure
The WQ series of submersible sewage pumps feature a compact structure and various state protection devices so that the running of the pumps is safer and more reliable.
|
Outlet diameter
|
Model
|
Flow rate
|
Head
|
Power
|
|
|
mm
|
WQ Series
|
m3/h
|
m
|
kw
|
hp
|
|
50
|
50WQ15-20-2.2
|
15
|
20
|
2.2
|
3
|
|
65
|
65WQ25-20-3
|
25
|
20
|
3
|
4
|
|
80
|
80WQ50-13-4
|
50
|
13
|
4
|
5
|
|
80
|
80WQ45-22-7.5
|
45
|
22
|
7.5
|
10
|
|
100
|
100WQ65-15-5.5
|
65
|
15
|
5.5
|
7
|
|
100
|
100WQ100-15-7.5
|
100
|
15
|
7.5
|
10
|
|
150
|
150WQ145-9-7.5
|
145
|
9
|
7.5
|
10
|
|
100
|
100WQ100-25-11
|
100
|
25
|
11
|
15
|
|
150
|
150WQ130-15-11
|
130
|
15
|
11
|
15
|
|
200
|
200WQ300-7-11
|
300
|
7
|
11
|
15
|
|
100
|
100WQ100-30-15
|
100
|
30
|
15
|
20
|
|
150
|
150WQ100-30-15
|
100
|
30
|
15
|
20
|
|
200
|
200WQ220-12-15
|
220
|
12
|
15
|
20
|
|
100
|
100WQ100-35-18.5
|
100
|
35
|
18.5
|
25
|
|
150
|
150WQ180-20-18.5
|
180
|
20
|
18.5
|
25
|
|
200
|
200WQ250-15-18.5
|
250
|
15
|
18.5
|
25
|
|
250
|
250WQ400-7-18.5
|
400
|
7
|
18.5
|
25
|
|
100
|
100WQ100-40-22
|
100
|
40
|
22
|
30
|
|
150
|
150WQ180-25-22
|
180
|
25
|
22
|
30
|
|
200
|
200WQ300-15-22
|
300
|
15
|
22
|
30
|
|
250
|
250WQ450-7-22
|
450
|
7
|
22
|
30
|
|
150
|
150WQ160-45-30
|
160
|
45
|
30
|
40
|
|
200
|
200WQ400-13-30
|
400
|
13
|
30
|
40
|
|
250
|
250WQ600-9-30
|
600
|
9
|
30
|
40
|
|
300
|
300WQ850-7-30
|
850
|
7
|
30
|
40
|
|
150
|
150WQ200-30-37
|
200
|
30
|
37
|
50
|
|
200
|
200WQ350-25-37
|
350
|
25
|
37
|
50
|
|
250
|
250WQ600-12-37
|
600
|
12
|
37
|
50
|
|
300
|
300WQ800-10-37
|
800
|
10
|
37
|
50
|
|
350
|
350WQ1000-8-37
|
1000
|
8
|
37
|
50
|
Submersible sewage pump specifications:
1.Flow rate: 15m3/h-1300m3/h
2. Head: 7m-45m
3. Voltage: 380v/420v/440v or as per request
4. Feature: large capacity, high head
5. Speed: 1450r/min, 2900r/min, 3450r/min
6. Motor: copper wire
