Centrifugal 0.36MPa Submersible Sewage Water Pump For Waste Dredge Drainage

Basic Information

Place of Origin:	China
Brand Name:	Gempump
Certification:	ISO9001 CE
Model Number:	50WQ20-7-0.75

Minimum Order Quantity:	1 set
Price:	1000 USD/SET
Packaging Details:	Ply wooden box
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000 SET/Month

Get Best Price Contact Now

Product:	WQ Submersible Waste Dredge Pump	Material:	Cast Iron
Application:	Sewage,Slurry,Tailing,Mine	Theory:	Centrifugal Water Pump
Warranty:	1 Year	Power:	Electric Motor
Voltage:	AC220V AC380V AC415V 50HZ	Place Of Origin:	Shijiazhuang China
High Light:	0.36MPa Submersible Sewage Water Pump , Centrifugal Submersible Sewage Water Pump , 0.36MPa Submersible Drainage Pump

WQ Centrifugal Sewage Water Submersible Sewage Pump for Waste Dredge Drainage

Products Description

WQ type submersible sewage pump is made up of motor and pump, which are separated through oil isolation room and mechanical seal, it is short in length that motor and pump share the same axle (rotor), the structure is compact.

WQ Waster River Sand Pump Structure Features
1. Signal line: for motor power above 11kw, we suggest pump equipped with control box, which would protect the pump fully from leakage, phase reversal, short circuit, overheated, overload, etc..
2. Motor stator: its insulation is B grade or F grade.
3. Water leakage probe. This component is installed in the oil room, if the mechanical seal was damaged, and water enters into the oil room, it will send out the signal to the control system so as to stop the pump.
4. Mechanical seal: Adopting in-series seal, the material is the wear-resisting carbonization tungsten, featuring being reliable, wear-resisting, longer life, etc.
5. Impeller: have better handling capacity, can reduce the trouble of jamming and twisting of big fiber rubbish, etc.
6. Pump body: harmonize with impeller, ensure the pump has high efficiency.
7. Seal rings: Installed at the mouth place of pump body, can change the sealed ring after long time operating, so as to ensure the pump runs with the best efficiency.

WQ Centrifugal Sewage Water Pump Advantages
1. Adopt big flow non-clog design, improving the ability to pass dirty things greatly.
2. The design is rational, with high efficiency, and the energy-saving is remarkable.
3. Adopts in series mechanical seal, the material is the wear-resisting carbonization tungsten, featuring being durable,
wear-resisting, long service life.
4. The structure of the pump is compact, small, may move conveniently, installation is simple and convenient, it is submerged into the water, no need to build the pump house, reduce construction cost greatly.
5. There is probe in the oil room of the pump, if the pump side mechanical seal is damaged and water enter into the oil room, it would give off signals so as to protect the pump.
6. Can be equipped with control box according to the needs of user, it will protect the pump from electric leakage, water leakage, overload and overheated, etc. guarantee the pump operates reliably and safely.
7. The automatic coupling installation system of one pair of guides, it is convenient for the installation and maintenance of the pump, no need to enter into the sewage hole.
8. The float switch, according to the necessary water level changing. Control the start and stop of the pump automatically, no people needed to guard it.
9. According to use situation, the motor can adopt water jacket circulation cooling system type, which can guarantee the safe operation of the pump under the dry state.
10. Installation can be fixed automatic coupling installation or non-fixed portable installation, which can satisfy different
occasions.

WQ Dredge Pump Working Conditions
1. Temperature 0f medium not exceeding 60°C,gravity 1.0~1.3kg/dm3,and PH value between 5~9.
2. For pump without internal gravity flow circulation cooling system,its motor above liquid surface by less than 1/3.
3. Generally, pumps shall be working within the range of head to protect the motor from overloading.To work at the full
head.please specify when placing an order for our convenience in manufacturing.
4. The current of motor during the process of operation shall not exceed the rated value.

WQ Submersible Sewage Pump Applications
This series of pumps are mainly used in municipal engineering, buildings, industrial sewage discharge ,sewage treatment in environmental protection, factories and mines to deliver sewage, wastewater and rainwater etc, containing solid substances and long fiber. Stainless steel type may also be used to deliver corrosive medium.

China Gempump WQ Pump Paramenters

Working Principle:	Centrifugal, QW WQ YW submerged, vertical
Main applications:	Sewage Water
Driver:	Electric motor
Power Specs:	220/380/415V 3phase, 110/220/240V single phase; 50hz/60hz
Max. fluid temperature:	80°C(176°F)
Type of connection:	Flange, Fast coupling, Elbow
Installation position:	Vertical
Casing material:	Cast iron, Stainless steel
Shaft seal type:	Double Mechanical seal
Maximum free passage:	50% of caliber diameter
Maximum drive rating:	315KW(420HP)
Maximum caliber:	500mm(20nch)
Max discharge-side pressure:	0.36MPa(3.6bar)
Maximum head:	60m
Flow rate range:	7-2650m3/h(30.8-11660US.GPM

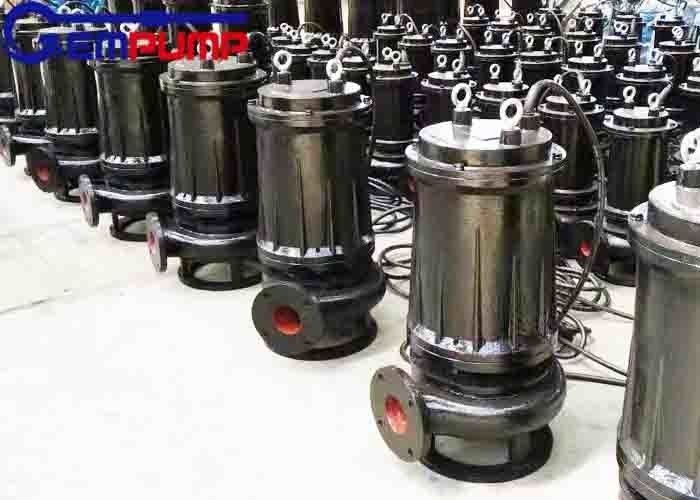

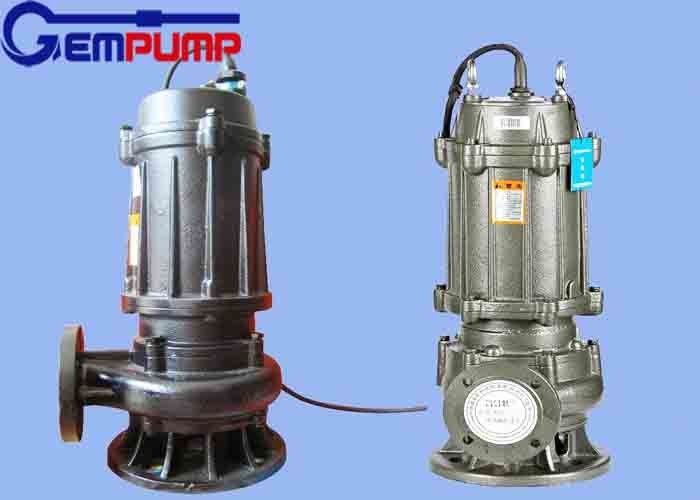

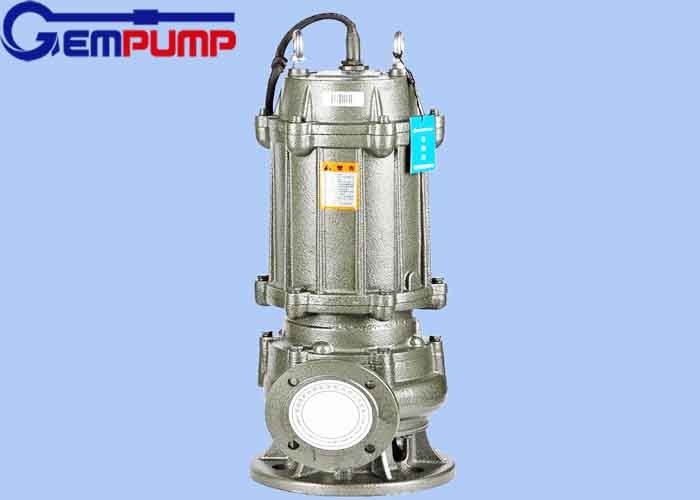

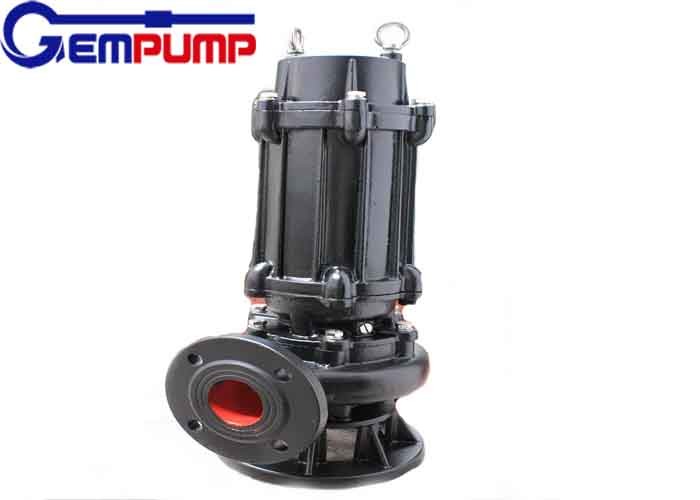

WQ Pump Product Show

FAQ

Q: What type of company Gempump is?
A: Gempump is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.

Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.

Q: What is your payment terms?
A: Western Union, Paypal, T/T, L/C, etc.

Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.

Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.

Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
