Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 50WQ20-7-0.75 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | WQ Submersible Waste Dredge Pump | Material: | Cast Iron |
|---|---|---|---|
| Application: | Sewage,Slurry,Tailing,Mine | Theory: | Centrifugal Water Pump |
| Warranty: | 1 Year | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V 50HZ | Place Of Origin: | Shijiazhuang China |
| High Light: | 0.75KW High Pressure Sewage Pump,AC415V High Pressure Sewage Pump,0.75KW non clog submersible pump |
||

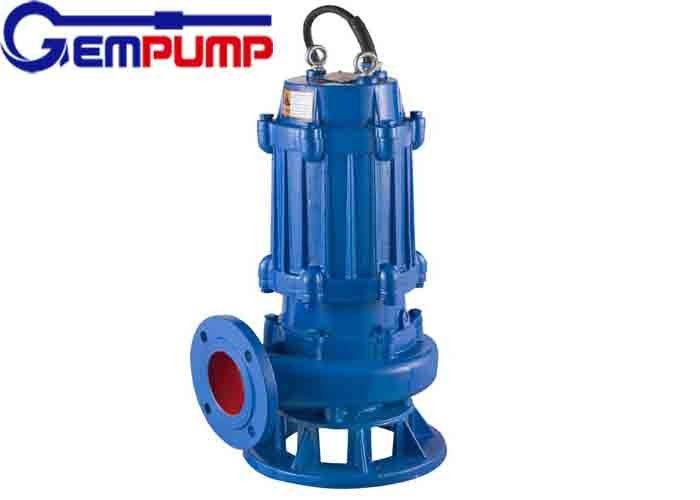

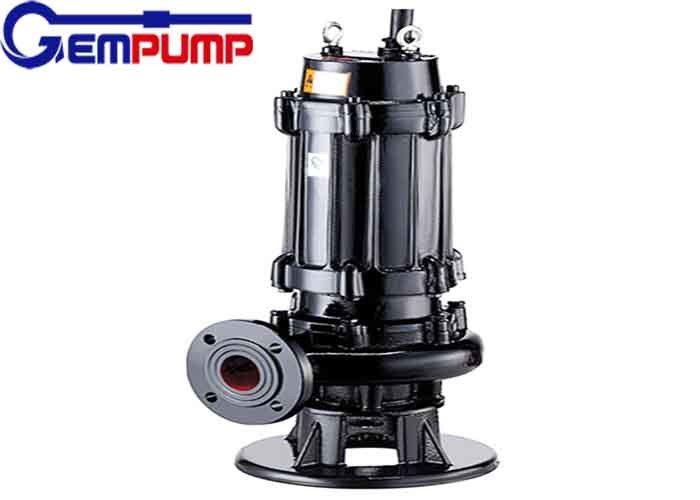

Best Quality Electric Full Automatic Bomba Sumergible Water Sewage Submersible Pump
WQ Submersible Pump Model Code Meaning:
150 WQ 100 - 40 - 30
150 - discharge diameter (mm)
WQ - submersible sewage pump
100 - capacity, m³/h
40 - head, m
30 - motor power, kw
WQ Sewage Centrifugal Pump Model List
|
Pump Model
|
Capacity
(m3/hour)
|
Head(meter)
|
Power(KW)
|
Voltage(V)
|
Discharge DN(mm)
|
|
WQ10-10-0.75
|
10
|
10
|
0.75
|
220/380
|
50
|
|
WQ7-15-1.1
|
7
|
15
|
1.1
|
220/380
|
50
|
|
WQ15-7-1.1
|
15
|
7
|
1.1
|
220/380
|
65
|
|
WQ12-15-1.5
|
12
|
15
|
1.5
|
380
|
50
|
|
WQ25-7-1.5
|
25
|
7
|
1.5
|
380
|
65
|
|
WQ9-22-2.2
|
9
|
22
|
2.2
|
380
|
50
|
|
WQ25-10-2.2
|
25
|
10
|
2.2
|
380
|
65
|
|
WQ40-10-2.2
|
40
|
10
|
2.2
|
380
|
80
|
|
WQ50-7-2.2
|
50
|
7
|
2.2
|
380
|
100
|
|
WQ15-30-3
|
15
|
30
|
3
|
380
|
50
|
|
WQ25-15-3
|
25
|
15
|
3
|
380
|
65
|
|
WQ37-13-3
|
37
|
13
|
3
|
380
|
80
|
|
WQ60-9-3
|
60
|
9
|
3
|
380
|
100
|
|
WQ15-32-4
|
15
|
32
|
4
|
380
|
50
|
|
WQ25-20-4
|
25
|
20
|
4
|
380
|
65
|
|
WQ30-36-4
|
30
|
36
|
4
|
380
|
80
|
|
WQ40-15-4
|
40
|
15
|
4
|
380
|
80
|
|
WQ60-10-4
|
60
|
10
|
4
|
380
|
100
|
|
WQ15-40-5.5
|
15
|
40
|
5.5
|
380
|
50
|
|
WQ25-35-5.5
|
25
|
35
|
5.5
|
380
|
65
|
|
WQ30-30-5.5
|
30
|
30
|
5.5
|
380
|
80
|
|
WQ65-15-5.5
|
65
|
15
|
5.5
|
380
|
100
|
|
WQ100-7-5.5
|
100
|
7
|
5.5
|
380
|
150
|
|
WQ45-22-7.5
|
45
|
22
|
7.5
|
380
|
80
|
|
WQ80-15-7.5
|
80
|
15
|
7.5
|
380
|
100
|
|
WQ100-10-7.5
|
100
|
10
|
7.5
|
380
|
150
|
WQ Submersible Sewage Pump Application:
