Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CDL2-15 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | CDL/CDLF Vertical Stainless Steel Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal / Vertical |
| Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
| High Light: | 90m3/H Stainless Steel Centrifugal Pump,110KW Stainless Steel Centrifugal Pump,110KW Fire Fighting Jockey Pump |
||
CDL 380V Industrial Fire High Pressure Centrifugal Pump Vertical Multistage Pump
CDL(F) Vertical Stainless Steel Multistage Pump Introduction
CDL/ CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The
motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage
components are fixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump
bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from
dry-running, out-of-phase and overload.
|

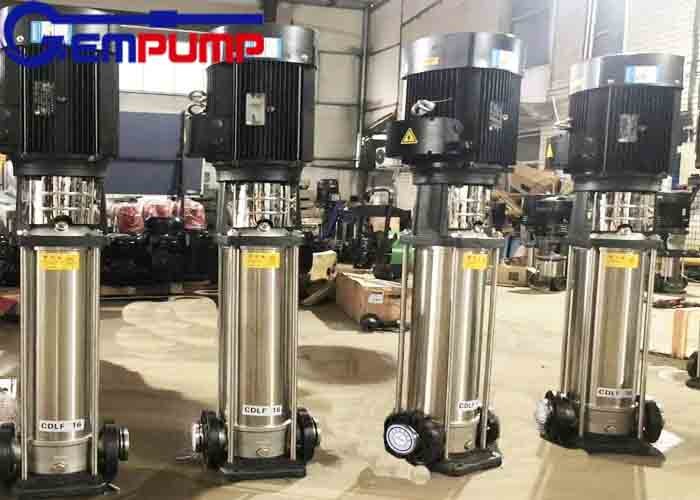

CDL(F) series vertical stainless steel multistage jockey pump
|
||||
|
Max. Flow
|
90m3/h
|
|||
|
Max. Flow
|
247m
|
|||
|
Power Range
|
0.37KW-110KW ( 0.5HP-150HP)
|
|||
CDL Industrial Multistage Pump Operation Conditions
1) Thin,clean,non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperatureNormal temperature type:-15℃ to +70℃.Hot water type:+70℃ to +120℃.
3) Ambient temperature:up to +40℃
4) Altitude:up to 1000m
CDLF Pump Model China Supplier
Application of CDLF Vertical Inline Pump:
1. Common type is used in delivery of liquids that is clean, hot or cold, and in recycling and pressurizing of soft water.
2. Stainless steel type is used in delivery of slightly alkaline water, mineral water, distilled water, swimming pool water and other liquid containing the chloride, the temperature of the liquids shall be decreased to certain degree.
Typical Pump Application Situations
CDL AC 380V Industrial Fire High Pressure Centrifugal Pump Packing
