Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | ZS50-32-160/1.1 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | CNP Stainless Steel Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
| High Light: | ZS Single Stage Centrifugal Pump,7.0 Bar Low Pressure Centrifugal Pump,50Hz Single Stage Centrifugal Pump |
||

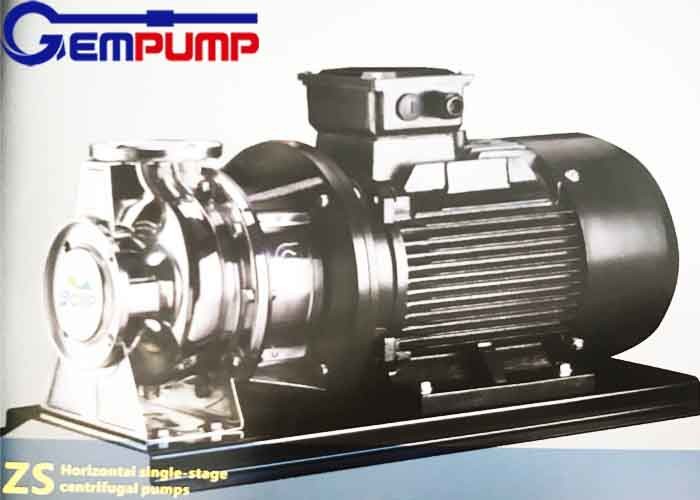

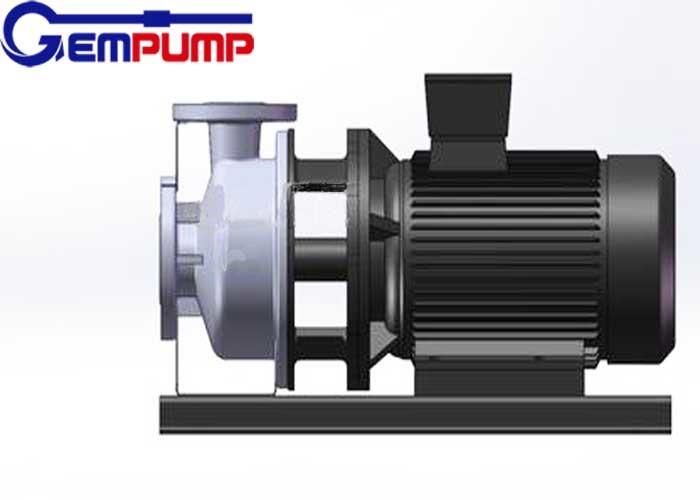

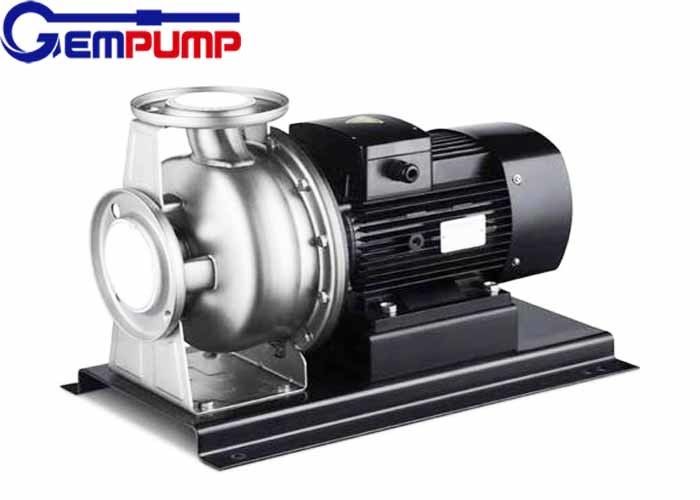

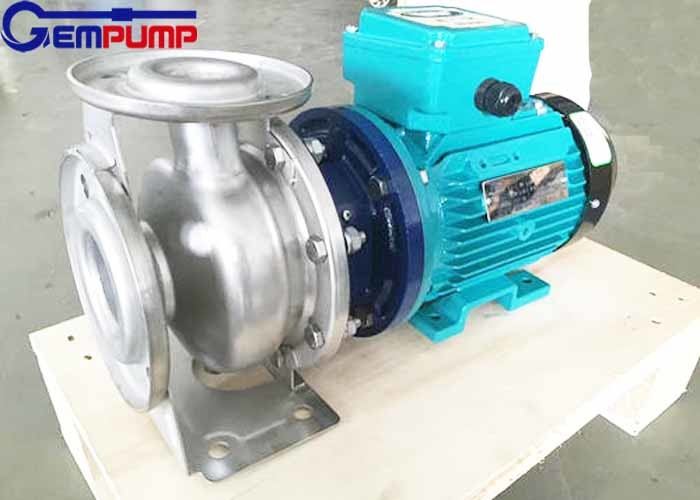

ZS Electric Low Pressure Single Stage Stainless Steel Centrifugal Pump
ZS Stainless Steel Pump Overview
ZS type stainless steel horizontal single-stage centrifugal pump is made of stainless-steel plate stamping and expansion welding and other advanced technology. It can replace the traditional IS centrifugal pump and has beautiful appearance, light structure, high efficiency, energy saving, durability, light corrosion resistance and low noise. ZS pump is used to convey Clean, thin, non-flammable and explosive liquids without solid particles or fibers.
Performance Range :-
| Flow Range (Q) | 3.0 - 200 m³/hr |
| Delivery Head | Max. 70 mtr (7.0 Bar) |
| Liquid Temperature | -20 oC~+ 70 ° C |
| Speed (n) | 2900 rpm |
| Power (P) | up to 37 kW |
| MOC | SS-304 and SS-316 |
ZS China Pump Manufacturer Features
ZS Single-Stage Centrifugal Pumps Application
ZS type stainless steel horizontal single-stage centrifugal pump is a wide range of multi-functional pump. It can transport a variety of water or industrial liquids including different media and is suitable for different temperature, flow, and pressure range.
Water supply: water plant filtration, transportation and regional water delivery and supercharging
Industrial pressurization: flow water system, cleaning system
Industrial liquid transport: boiler feed water, condensing system, cooling and air conditioning system, machine tools, acid and alkali transport
Water treatment: distillation system or separator, swimming pool, etc.
Farmland irrigation, petrochemical industry, medicine and health care, etc.
ZS CNP Stainless Steel Pumps Installation condition:
ZS type stainless steel horizontal single-stage centrifugal pump is a direct connection of pump shaft, which is composed of pump, pump shaft and standard motor.
1) the pump shall be installed in a place with ventilation and anti-freezing
2) the pump shall be installed to ensure that the pump is not affected by the tension of the system pipeline when in use
3) if the pump is installed outdoors, it must be equipped with a suitable outer cover to prevent water or condensation of the electrical components
4) in order to facilitate inspection and maintenance, sufficient space must be left around the unit.
5) the electrical wiring device shall ensure that the pump is not damaged by phase loss, voltage instability, electricity leakage and overload.
6) the pump shall be installed horizontally on the base. The horizontal direction is the suction inlet of the pump and the vertical direction is the discharge outlet of the pump.
ZS Centrifugal Pumps Working condition:
Liquid temperature between -20℃ and +100℃;
High ambient temperature +40℃;
1000 meters above sea level;
System high pressure 10bar.
The motor is a fully enclosed, air-cooled standard motor.
Protection level: IP55;
Insulation grade: F;
Standard voltage: 50Hz 1×220V, 3×380V AC
| Model | Head | Flow(m3/h) | motor power(KW) | Speed(rpm) |
| ZS50-32-160/1.1 | 18 | 6.3 | 1.1 | 2900 |
| ZS50-32-160/1.5 | 20 | 12.5 | 1.5 | 2900 |
| ZS50-32-160/2.2 | 25 | 12.5 | 2.2 | 2900 |
| ZS50-32-200/3.0 | 32 | 12.5 | 3 | 2900 |
| ZS50-32-200/4.0 | 42 | 12.5 | 4 | 2900 |
| ZS50-32-200/5.5 | 54 | 12.5 | 5.5 | 2900 |
| ZS65-40-125/1.5 | 13 | 25 | 1.5 | 2900 |
| ZS65-40-125/2.2 | 18 | 25 | 2.2 | 2900 |
| ZS65-40-125/3.0 | 24 | 25 | 3 | 2900 |
| ZS65-40-160/4.0 | 28 | 25 | 4 | 2900 |
| ZS65-40-200/5.5 | 36 | 25 | 5.5 | 2900 |
| ZS65-40-200/7.5 | 46 | 25 | 7.5 | 2900 |
| ZS65-40-200/11.0 | 62 | 25 | 11 | 2950 |
| ZS65-50-125/3.0 | 13 | 50 | 3 | 2900 |
| ZS65-50-125/4.0 | 18 | 50 | 4 | 2900 |
| ZS65-50-160/5.5 | 25 | 50 | 5.5 | 2900 |
| ZS65-50-200/7.5 | 32 | 50 | 7.5 | 2900 |
| ZS65-50-200/9.2 | 40 | 50 | 9.2 | 2900 |
| ZS65-50-200/11.0 | 48 | 50 | 11 | 2950 |
| ZS65-50-200/15.0 | 58 | 50 | 15 | 2950 |
| ZS65-50-200/18.5 | 68 | 50 | 18.5 | 2950 |
| ZS80-65-125/5.5 | 13 | 100 | 5.5 | 2900 |
| ZS80-65-125/7.5 | 18 | 100 | 7.5 | 2900 |
| ZS80-65-125/9.2 | 23 | 100 | 9.2 | 2900 |
| ZS80-65-160/11.0 | 27 | 100 | 11 | 2950 |
| ZS80-65-160/15.0 | 36 | 100 | 15 | 2950 |
| ZS80-65-200/18.5 | 45 | 100 | 18.5 | 2950 |
| ZS80-65-200/22.0 | 53 | 100 | 22 | 2950 |
| ZS80-65-200/30.0 | 66 | 100 | 30 | 2950 |
| ZS100-80-160/11.0 | 15 | 160 | 11 | 2950 |
| ZS100-80-160/15.0 | 22 | 160 | 15 | 2950 |
| ZS100-80-160/18.5 | 28 | 160 | 18.5 | 2950 |
| ZS100-80-200/22.0 | 33 | 160 | 22 | 2950 |
| ZS100-80-200/30.0 | 45 | 160 | 30 | 2950 |
| ZS100-80-200/37.0 | 54 | 160 | 37 | 2950 |
