Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | MS100 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | CNP Stainless Steel Pump | Principle: | Centrifugal |
---|---|---|---|
Applications: | Chemical | Power: | Electric Motor |
Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
Connection: | Flange | Position: | Horizontal |
Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
High Light: | MS100 Horizontal Centrifugal Booster Pump,CNP Horizontal Centrifugal Booster Pump,MS100 Single Stage Centrifugal Pump |

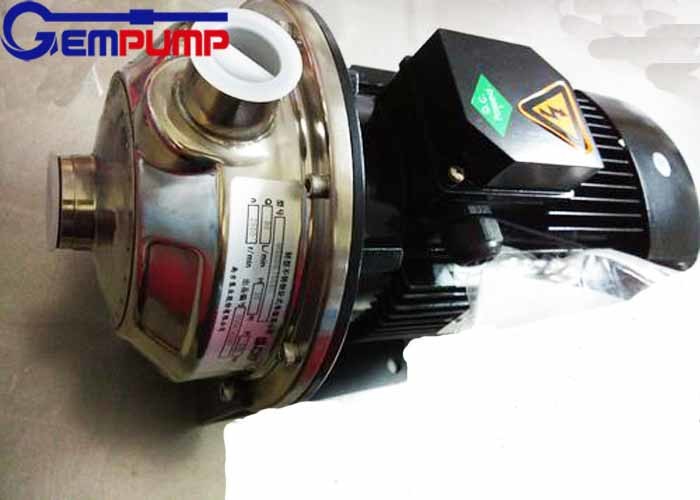

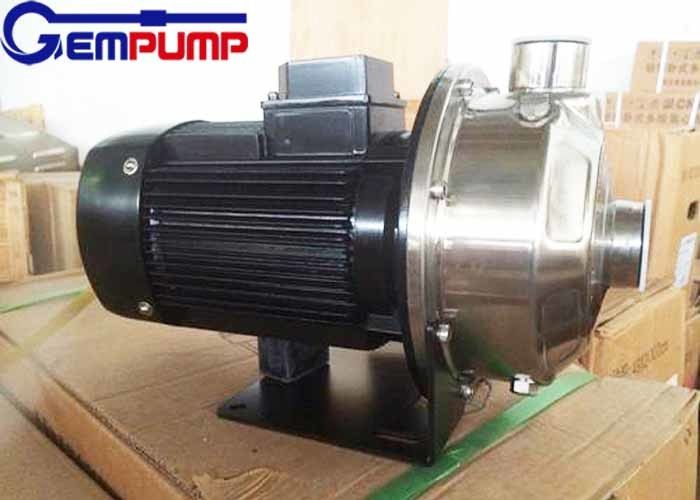

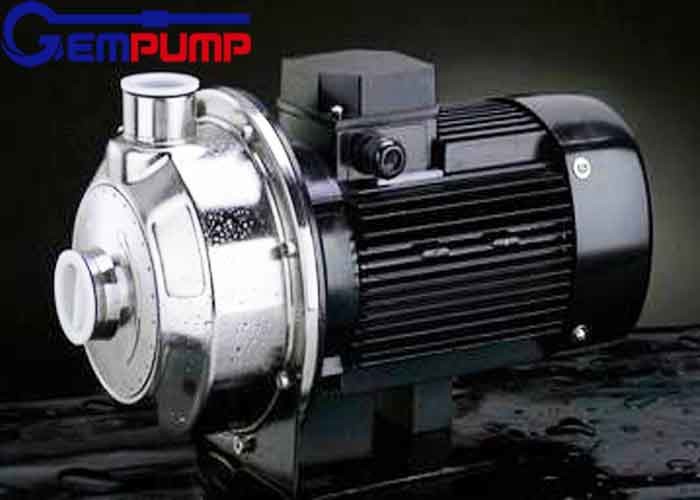

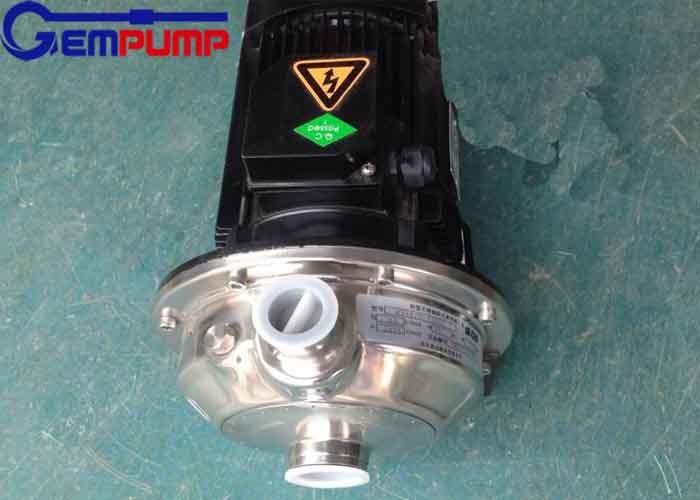

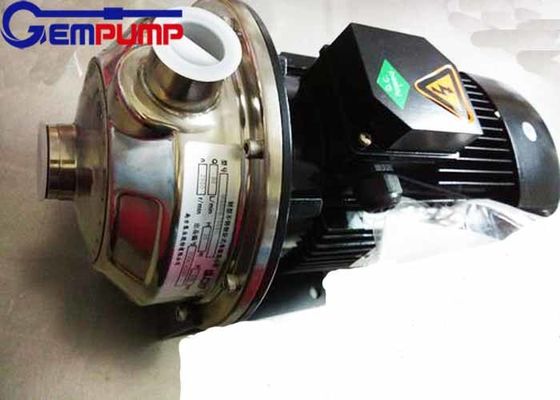

CNP MS100 Light Stainless Steel Horizontal Single-Stage Centrifugal Booster Water Pump
CNP MS100 Light Centrifugal Pump Performance Pange:
Head | up to 60m |
Flow | up to 132m3/h |
Power | up to 30Hp |
Suction Size | 50 to 100mm |
Delivery Size | 32 to 80mm |
CNP MS100 Booster Water Pump Operating Limits:
Max.Working Pressure | 10Mpa(10 bar) |
Ambient Temperature | From-15 °C to +40 °C |
Liquid Temperature | Form -20°C to +110 °C |
MS100 Horizontal Single-Stage Water Pump Technical Features:
MS100 series stainless steel centrifugal pumps,produced by advanced stamping and welding technology,with its exchangeable components,stable quality,small size,light weight,aluminum alloy cold-extruding-shaped motor casing rational structure,beautiful appearance and safe use.
The pump made by stainless steel SU304 or 316L and composed of pump body,impeller,rear cover,seal ring etc.It has features of good oxidation-resisting performance,strong corrosion-resisting to oxidative acid(e.g.nitric acid)and has some corrosion-resistance to alkaline solution and most of organic acids and inorganic acids.The shaft of centrifugal pumps made of 304 and 316L,different kinds of mechanical seal are optional.
Standard:EN733(DIN24255)or GB5662
Materials:Stainless Steel SUS304 or SUS316L for pump case,impeller and shaft.
Fields of application:The pumps are suitable of transporting clean media which are non-aggressive to stainless steelSUS304 or SUS316 .
Water Supply Systems
Pressure Boiler Water Feeding
Pure Water Treating Systems
Pharmaceutical,Food and Regining Chemical Industries.
Washing and Sprinking
MS100 Centrifugal Pump Model
Model
|
Driving Motor
|
Q(l/min)
|
40
|
60
|
80
|
100
|
140
|
160
|
|
(kw)
|
(hp)
|
Q(m3h)
|
2.4
|
3.6
|
4.8
|
6
|
8.4
|
9.6
|
|
MS100/0.55KW
|
0.55
|
0.75
|
H(m)
|
17.8
|
16.7
|
15.4
|
14
|
9.9
|
|
MS100/1.1KW
|
1.1
|
1.5
|
27.4
|
26.3
|
25
|
23.4
|
19.5
|
16.7
|
