Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CDLF2-20 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | High Temperature Booster Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
| High Light: | 23 Bar Stainless Steel Centrifugal Pump,0.37KW Stainless Steel Centrifugal Pump,0.37KW Vertical Inline Multistage Pump |
||

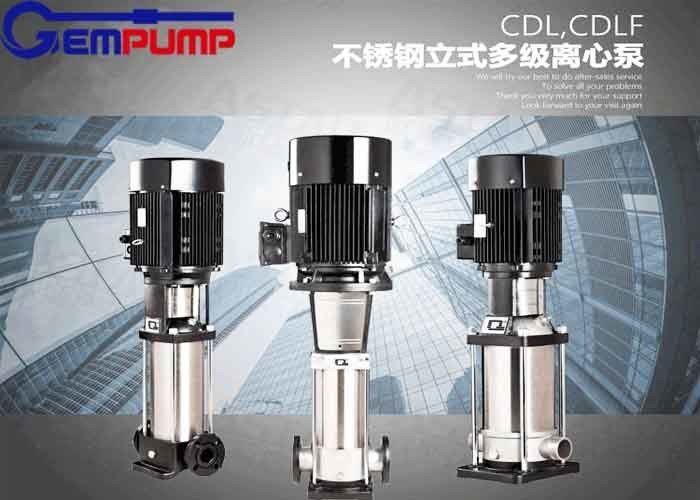

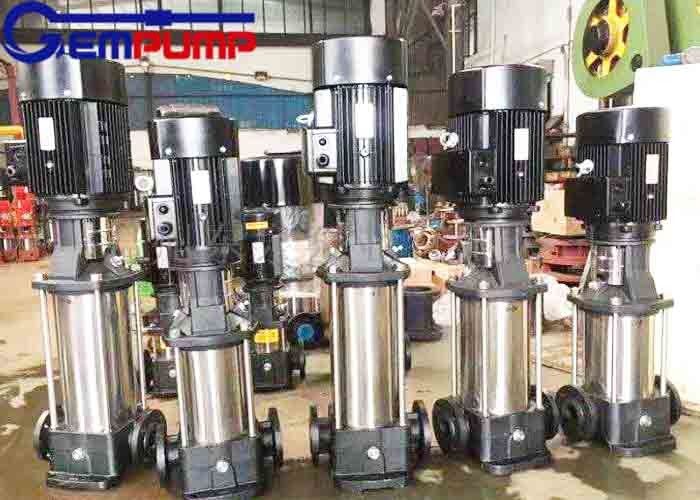

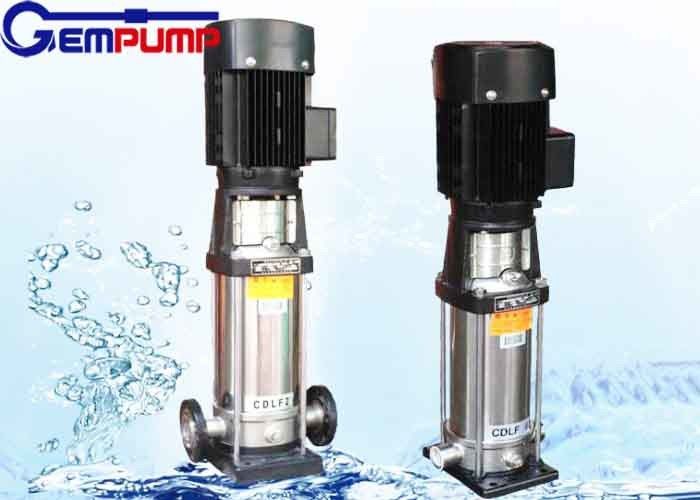

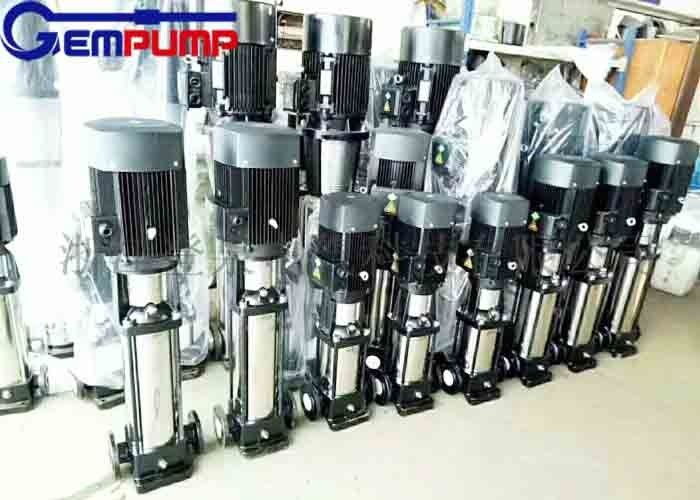

Electric Multi-Stage Stainless Steel Water Vertical Centrifugal Inline Pump
Multi-Stage Stainless Steel Centrifugal Pump Overview
CDLF Vertical Multistage centrifugal Pumps adopt stainless steel AISI304 or 316, special in high
pressure. Impeller,guide vane and all parts contact with liquid are of stainless steel punched and
welded, so the flow road is very smooth and prevent producing second pollution. Shaft and sleeve
are of hard alloy and adopt wear resistant mechanical seal, having super service time and no-leakage. Electrical motor adopt Y2 aluminum motor, importing bearing,insulation gradef.
| Material List | |||
| Casing | SS304 | Shaft | SS304 |
| Impeller | SS304 | Shaft sleeve | SS304 |
| Diffuser | SS304 | Suction casing | Cast iron |
| Shaft seal | Mechanical seal | Balance casing | Cast iron |
Centrifugal Pump Medium:
Hot and cold clean, non-flammable and non-explosive liquid without solid grain and fibre. If for explosive liquid should choose explosion-proof motor.
Mineral water, soft water, pure water, edible oil and other light chemical mediums
When the density or viscosity of liquid is larger than that of water, it is necessary to select a driving motor of high-power
Electric Power Vertical Centrifugal Inline Pump Typical applications:
Urban water supply and pressure boosting
Industrial circulating system and processing system
Water supply for boiler, condensing system, high-rise building or fire fighting system.
Water treatment and infiltration system
Agricultural irrigation
Cooling water system
Many other domestic and industrial special applications
Electric motor:
Full-enclosed fan-cooled two-pole standard motor, 50HZ or 60HZ
Phase: Single-phase or three-phase, standard voltage
Protection class: IP55, Insulation class: F
50HZ Pump Performance Scope
| Model | CDLF2 | CDLF4 | CDLF8 | CDLF12 | CDLF16 | CDLF20 | CDLF32 | CDLF42 | CDLF65 | CDLF120 | CDLF150 |
| Rated flow[m3/h] | 2 | 4 | 8 | 12 | 16 | 20 | 32 | 42 | 65 | 120 | 150 |
| Flow range[m3/h] | 1-3.5 | 1.5-8 | 5-12 | 7-16 | 8-22 | 10-28 | 16-40 | 25-55 | 30-80 | 60-150 | 80-180 |
| Max.Pressure[bar] | 23 | 22 | 21 | 22 | 22 | 23 | 26 | 30 | 22 | 16 | 16 |
| Motor power[Kw] | 0.37-3 | 0.37-4 | 0.75-7.5 | 1.5-11 | 2.2-15 | 1.1-18.5 | 1.5-30 | 3-45 | 4-45 | 11-75 | 11-75 |
| Head range[m] | 8-231 | 6-209 | 13-201 | 14-217 | 16-222 | 6-234 | 4-255 | 11-305 | 8-215 | 15-162.5 | 8.5-157 |
| Temperature range[°C] | -15 -+120 | ||||||||||
| Max.Efficiency[%] | 46 | 59 | 64 | 63 | 66 | 69 | 76 | 78 | 80 | 74 |
73 |
FAQ
1. How to get our quotation in time, pls answer following questions:
(1)What medium do you transfer? Water, Food,Chemical liquid and oil and so on~
(2) What's the flow or capcity (m3/h, L/S)?
(3) What's the head (m, bar )
2.Q: What is your MOQ of this item?
A: 1 PCS
3.Q: What is the delivery time?
A: 1-15 days
4.Q: Where is your Loading Port?
A: Tianjin or Qingdao, China Port.
5.Q: What is your company's available production capacity?
A: 2000 pieces per month
