Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CDLF2-20 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | High Temperature Booster Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
| Highlight: | Stainless Steel Centrifugal Pump,16m3/h Stainless Steel Centrifugal Pump,16m3/h Single Stage Centrifugal Pump |
||
High Temperature Resistant Stainless Steel Vertical Booster Centrifugal Water Pump

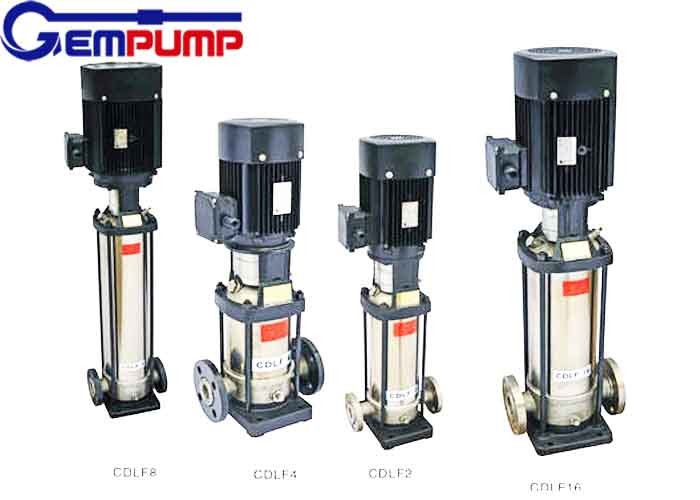

CDLF Vertical Booster Pump Overview
CDLF series closed coupled stainless steel vertical multistage centrifugal inline pumps are driven by standard motors. All parts contact with water made of SS304/SS316. The pump head, suction and discharge part can be made in cast iron on request too. The pressure-resistant cylinder and flow passage components are fixed between the pump head and inlet & outlet section with four stay-bolts. With high reliability, high efficiency and advanced technology, these pumps are capable of satisfying multiple applications in the water market.
Details of multistage centrifugal pump
| Item | multistage centrifugal pump |
| Model | CDLF vertical inline multistage centrifugal pumppump working |
| Material | Stainless steel |
| Motor | 100%copper wire, full power |
| Color | Black and adjustable |
| Theory | Centrifugal Pump |
| Structure | vertical multistage booster pump |
| Power | Electric |
| Pressure | High Pressure |
| Impeller | Vortex impeller |
| Mechanical Seal | Alloy and silicon carbide |
| Capacity | 2-16m³/h |
| Head | 15-180m |
| Power | 0.55-7.5kw |
| Speed | 1450-2900r/min |
| Outlet Diameter | 25-500mm |
| OEM | Acceptable |
Thin, clean, non-flammable and non-explosive liquid containing No solid granules and fibers.
Liquid temperature type: -15°C~+70°C
Hot water type: +70°C~+120°C
Ambient temperature: up to +40°C
Altitude: up to 1000m
1.Water supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise building.
2.Industrial liquid conveying: cooling and air-condition system, boiler water supply and condensing system, machine
associated purpose, acids and alkali.
3.Industrial boosting: process flow water system, cleaning system, highpressure washing system, fire fighting system.
4.Water treatment: ulrafitation system, reverse osmosis system, distillation system, separator, swimming pool.rrigation: Farmland irrigation, spray irrigation, dripping irrigation.
