Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | CDLF2-20 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 1000 SET/Month |
Product: | Vertical Multistage Pipeline Pump | Principle: | Centrifugal |
---|---|---|---|
Applications: | Chemical | Power: | Electric Motor |
Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
Connection: | Flange | Position: | Horizontal |
Material: | Stainless Steel 304/316 | Seal: | Mechanical Seal |
High Light: | CDLF Stainless Steel Centrifugal Pump,SS316 Multi Stage pipeline Pump,AC380V Stainless Steel Centrifugal Pump |

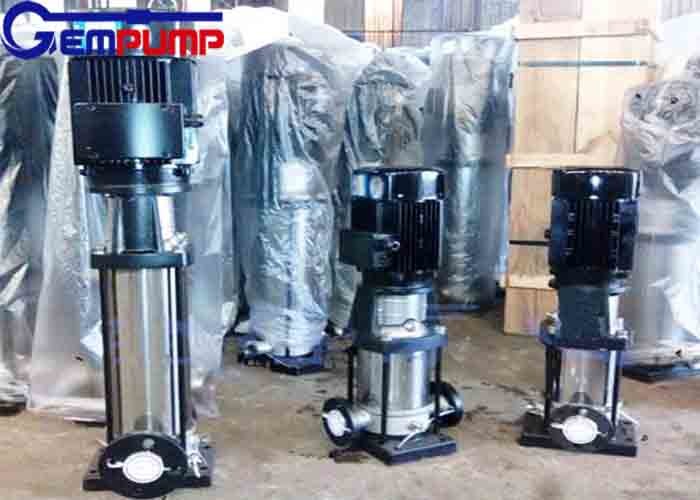

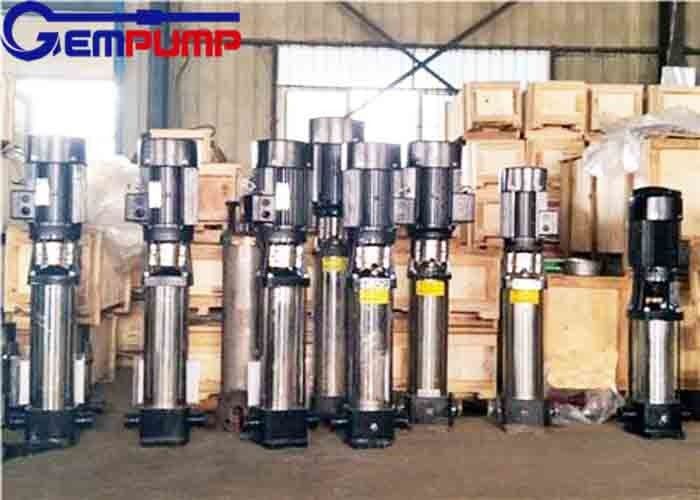

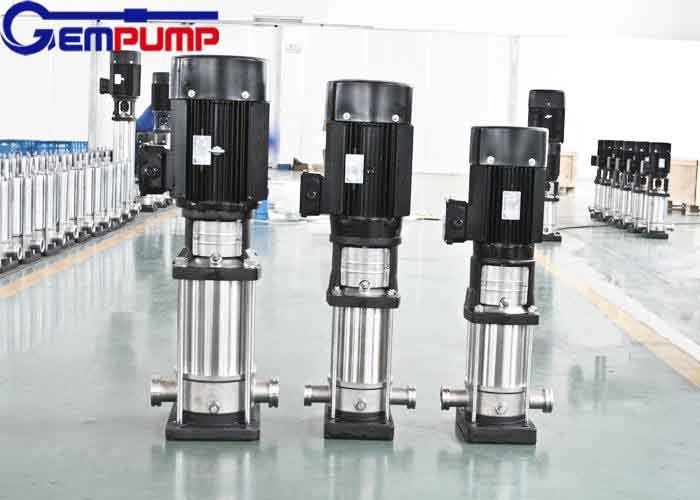

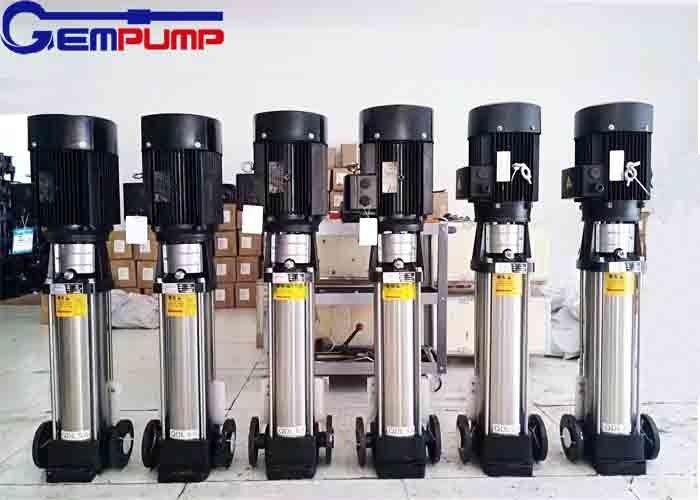

Vertical multistage 304/316 stainless steel pipeline centrifugal pump
CDLF Multistage Centrifugal Pump
CDLF/CDLKF is a non-self-priming multi-stage centrifugal pump with a standard motor. The motor shaft is directly connected to the pump shaft through the pump head with a coupling. The pump can be equipped with an intelligent protector as required to effectively protect the pump from dry running, phase loss and overload.In order to meet the installation depth of the tank or container, the cavity can be installed to change the length of the pump itself. For different series length, please see the size and weight scale and the table of available product range.
Pump Material
|
||||
Motor case
|
Aluminum
|
|||
Pump case
|
Stainless Steel AISI304
|
|||
Support
|
Ductile Iron
|
|||
Diffuser
|
Stainless Steel AISI304
|
|||
Impeller
|
Stainless Steel AISI304
|
|||
Shaft
|
Stainless Steel AISI304
|
|||
Coupling
|
Carbon steelk
|
|||
Mechanical seal
|
Impregnated graphite/Silicon carbide/Viton
|
1.Cooling water system
2.Water supply: water transportation in water plants, boosting system in high buildings pressure boosting in main
3.Industrial liquid transportation: boiler feed, Industrial cleaning Water treatment: swimming pools.
4.Air-condition system
5.Agricultural Irrigation: sprinkler Irrigation, drip-feed irrigation Food & beverage industry
6.Fire-fighting system
