Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 32GDF-20 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | GDF Vertical Pipeline Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoro Plastic, Teflon,F46 | Seal: | Mechanical Seal |
| High Light: | 2900RPM Pipeline Booster Pump,1.5KW Pipeline Booster Pump,1.5KW sulfuric acid pump |
||

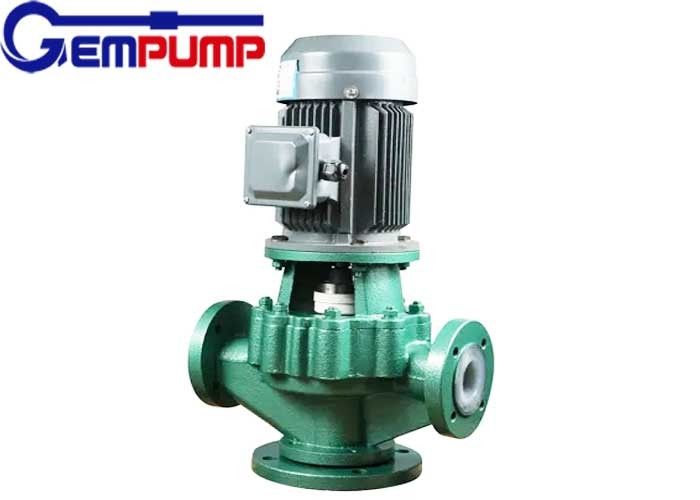

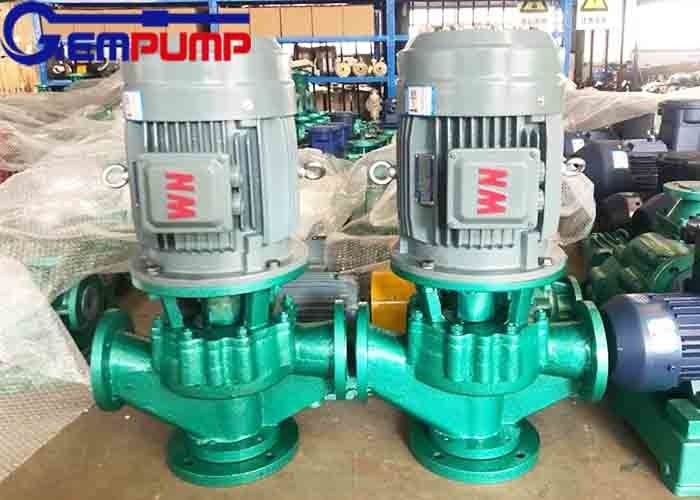

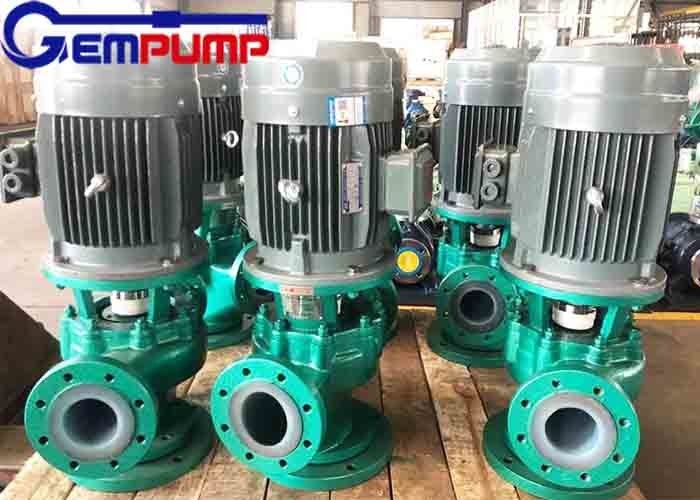

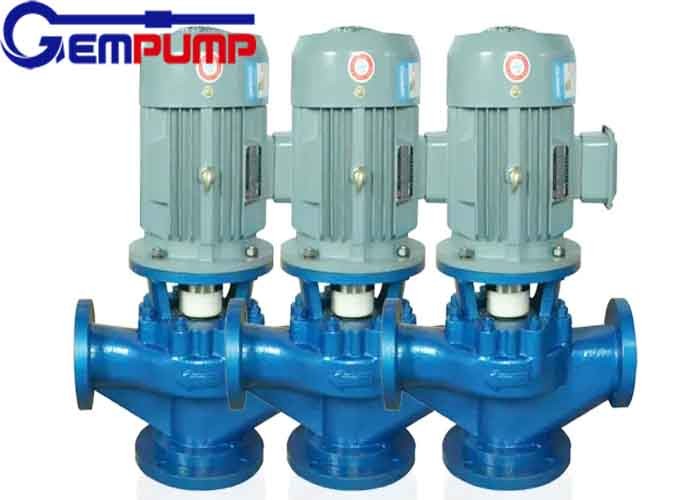

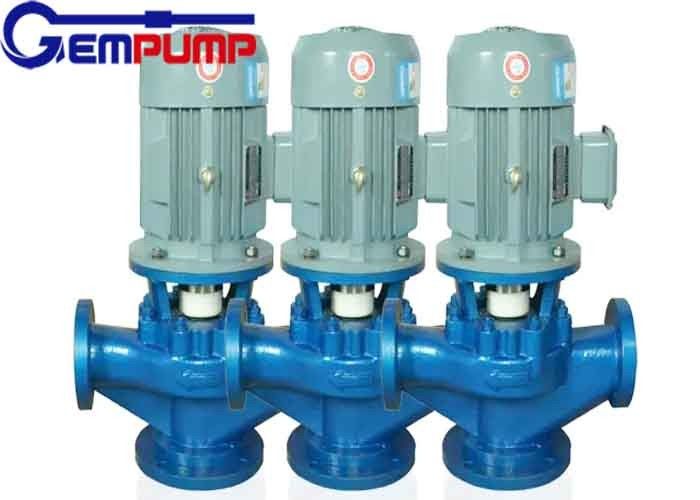

GDF Heavy Chemical Industries Vertical Pipeline Booster Chromic Acid Pumps
Vertical Centrifugal Pickling Industrial Pipeline Pump, Ammonia Pump
Model number: GDF (Fluoroplastic pipeline pump)
Flow range:3.6m³/H-100m³/H(L/min-L/min)
Head range:20M-32M
Motor power:1.5KW-15KW
Speed:2900r/min EFF:30-65m
Voltage:220V-380V-440V
Performance: Corrosion resistance
Brand Name:GEMPUMP CHINA
Material:FEP,PFA,PTFE,PVDF,PP,lined Plastic.
GDF Pump Model Meaning
GDF Pump Characteristics
The vertical design of GDF fluoroplastic pipe pump occupies a small area, and the inlet and outlet is on a horizontal line, which can be used for pressurization of limited space or straight line.
Chemical Acid Resistant Vertical ETFE Lined Pump for Sodium Hypochlorite Discharge
| No. | Item | Material |
| 1 | Mount | 45# steel F46 lined |
| 2 | Shell | HT200 F46 lined |
| 3 | Impeller | fluorine alloy |
| 4 | Pump cover | HT200 F46 lined |
| 5 | Static ring | SIC |
| 6 | Pump cover | HT200/F46 |
| 7 | Pressure cover | HT200 |
| 8 | Moving ring | filled with fluorine |
| 9 | Rack | HT200 |
| 10 | Mechanical seal | WB2 |
GDF Pump Advantages
1. The structure is advanced and reasonable.
2. Strong corrosion resistance.
3. Tight and reliable sealing performance, stable operation, low noise and long service life.
GDF Booster Pump Applicable medium
Hydrochloric acid pump, sulfuric acid pump, acid-base pump, hydrofluoric acid pump, formic acid pump, phosphoric acid pump
