Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | IHF50-32-250 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | IH SS304 Stainless Steel Centrifugal Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | SS304 ,SS316 | Seal: | Mechanical Seal |
| High Light: | SS304 Sulfuric Acid Transfer Pump,11KW Sulfuric Acid Transfer Pump,7.5m3/H sulphuric acid transfer pump |
||

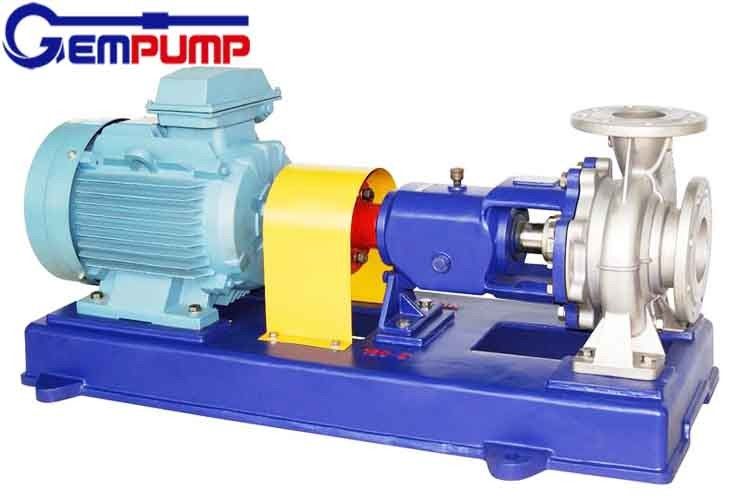

IH Centrifugal SS304 Stainless Steel Sulfuric Acid Transfer Chemical Pumps
IH SS304 Acid Transfer Chemical Pump Introduction and characteristics
IH series end suction pump is a new generation pump. Axial Suction Centrifugal Pump (16 bar).Based on the suspension appearance design of Gempump, the IH pump is provided with strengthening ribs on its casing so that it’s characterized by its nice-looking appearance, safe and reliable operation and long service life.
Suspension part of IH pump: four kinds of suspension, being universal,cover and cross the full line, thus ensuring a faster delivery and a smaller inventory.Shaft seal mode of IH pump: including packing seal, single-end face unbalanced mechanical seal, single-end face balanced mechanical seal, double-end face unbalanced mechanical seal and double-end face balanced mechanical seal, as required by the customer. The seal is safe and reliable and has a long service life.The pump’s body and impeller adopt the precision casting with wax matrix,so it has a higher efficiency and a better appearance quality than the traditional IH.
IH Centrifugal Pumps Main Application
It’s mainly used to transfer corrosive media containing no suspended particles or those unallowed to be polluted for industrial sectors like petrolem, chemical engineering, synthetic fiber, chemical fertilizer, power station, metallurgy, food and hospital.
IH Sulfuric Acid Transfer Chemical Pumps Working conditions
Medium temperature: -20℃<T<+105℃
Up to 400℃ when taking special measures:
Flow Q=3.4~2000m3/h,Head:3-200(m)
Rotation speed n=1450~3600 r/min,50Hz/60Hz
Pump’s rotation direction: clockwise when viewed from the motor to the pump.
IH Acid Pump Model
|
IH type pump performance
|
||||
|
Pump type
|
Capacity(m3/h)
|
Head (m)
|
Motor power(kw)
|
Speed(r/min)
|
|
IH50-32-125
|
7.5
|
23
|
2.2
|
2900
|
|
IH50-32-160
|
7.5
|
34.5
|
3
|
2900
|
|
IH50-32-200
|
7.5
|
51.8
|
5.5
|
2900
|
|
IH50-32-250
|
7.5
|
82
|
11
|
2900
|
|
IH65-50-125
|
15
|
21.3
|
3
|
2900
|
|
IH65-50-160
|
15
|
34.2
|
5.5
|
2900
|
|
IH65-40-200
|
15
|
53.2
|
11
|
2900
|
|
IH65-40-250
|
15
|
81.2
|
15
|
2900
|
|
IH65-40-315
|
15
|
126.8
|
30
|
2900
|
|
IH80-65-125
|
30
|
23.2
|
5.5
|
2900
|
|
IH80-65-160
|
30
|
36
|
11
|
2900
|
|
IH80-50-200
|
30
|
55.2
|
15
|
2900
|
|
IH80-50-250
|
30
|
84
|
30
|
2900
|
|
IH80-50-315
|
30
|
128
|
48
|
2900
|
|
IH100-80-125
|
60
|
23.7
|
11
|
2900
|
|
IH100-80-160
|
60
|
37
|
15
|
2900
|
|
IH100-65-200
|
60
|
56
|
22
|
2900
|
|
IH100-65-250
|
60
|
88
|
37
|
2900
|
|
IH100-65-315
|
60
|
132
|
75
|
2900
|
|
IH125-100-200
|
120
|
61
|
45
|
2900
|
|
IH125-100-250
|
120
|
90
|
75
|
2900
|
|
IH125-100-315
|
120
|
132.5
|
110
|
2900
|
|
IH125-100-400
|
60
|
52
|
30
|
1450
|
|
IH150-125-250
|
120
|
24.8
|
30
|
1450
|
|
IH150-125-315
|
120
|
36.3
|
30
|
1450
|
|
IH150-125-400
|
120
|
57.5
|
55
|
1450
|
|
IH200-150-250
|
240
|
23
|
37
|
1450
|
|
IH200-150-315
|
240
|
35.6
|
55
|
1450
|
|
IH200-150-400
|
240
|
55.8
|
90
|
1450
|
FAQ
Q1: Are you a manufacturer or a trading company?
A: We are a manufacturer, providing OEM & ODM service.
Q2. What standards do your products conform to?
A: Our products conform to GB, ISO or API610, etc. to be decided according to your specific requirements.
Q3. What’s the warranty for your products?
A:1 Year Warranty(except Wearing Parts)
Q4. What about after-sale service?
A: Our after-sales engineers will provide technical support within 24 hours after receiving claims or consultation requirements.
