| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 40FSB-50L |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | Acid Horizontal Centrifugal Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
| High Light: | FSB Fluorine Chemical Centrifugal Pump,FSB Acid Proof Pump,Fluorine Acid Proof Pump |
||

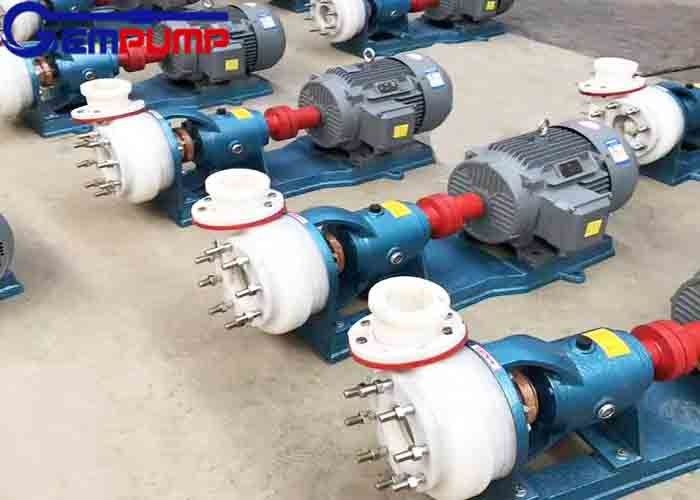

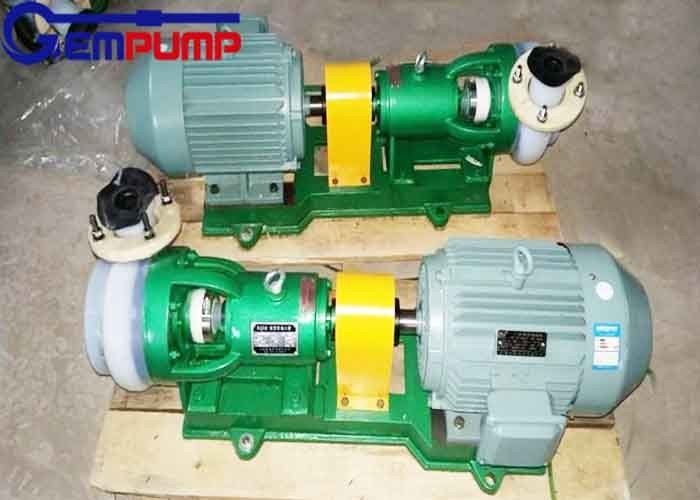

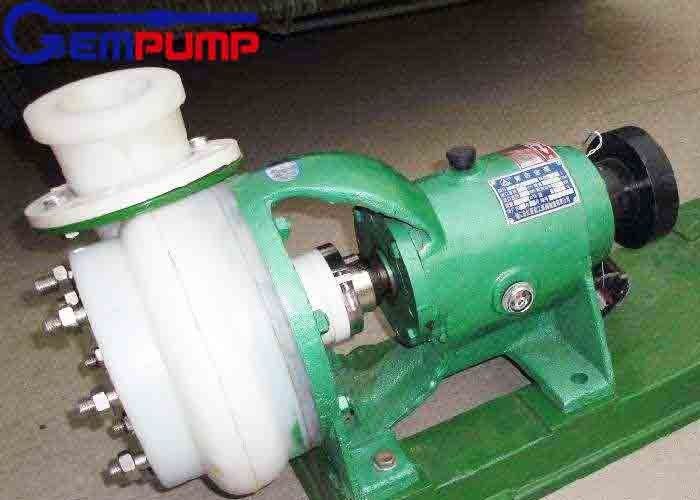

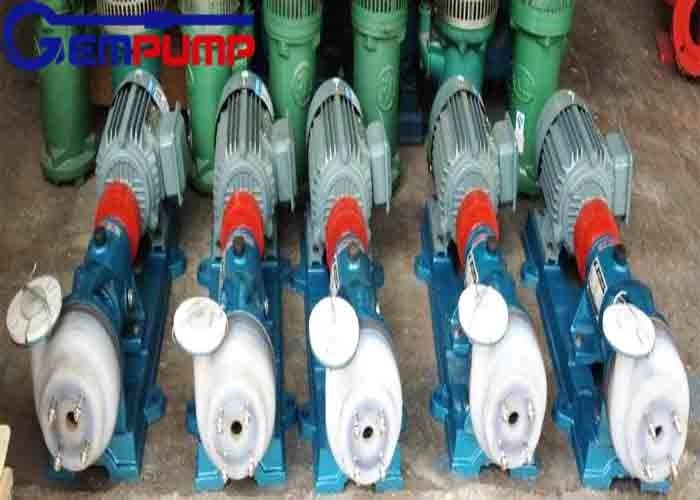

FSB No Leakage Fluorine Plastic Centrifugal Chemical Pump Acid Proof Pump
Brief introduction
1. Fluorine plastic centrifugal pump is used to transfer acid, oxidant, corrosive medium.forbid to transport of medium which is easy to crystallize.
2. IT has the advantages of strong corrosion resistance ability, high mechanical strength, non aging, no toxin decomposed.
3. All wet parts are made of fluorine plastic, which could be PVDF or FEP(F46) for meeting different application requirements.
4. The pump is mainly used for transferring clean corrosive chemical liquids and solvents.It is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, and food, etc.
Product details
| Working Principle: | Centrifugal, full plastic pump head |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 50/60Hz |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | PTFE, UHMWPE, F46, F26 |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 1.5-400m3/h(6.6-1760US.GPM) |
FSB Fluorine Plastic Chemical Pump Assembly Drawing
FAQ
Q: How about delivery time?
A: It is about 3-7 working days .
Q: Could you provide samples?
A: Yes, of course. We will send samples to you against advance deposit, but the price of sample pump and the freight charge is paied by your side.
Q: How about product problem solution?
A: If you can’t solve the problem in your local, please send the product to us, we will repair it, then back to you.
Q: What is your payment term?
A:TT, Western union, etc.
