Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 40FSB-15 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | FSB Plastic Chemical Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
| High Light: | PTFE Lined Chemical Centrifugal Pump,75KW Acid Resistant Pump,0.8MPa Acid Resistant Pump |
||

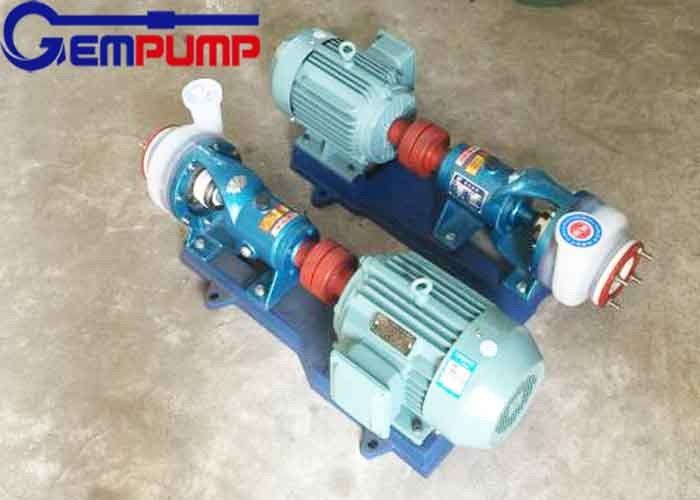

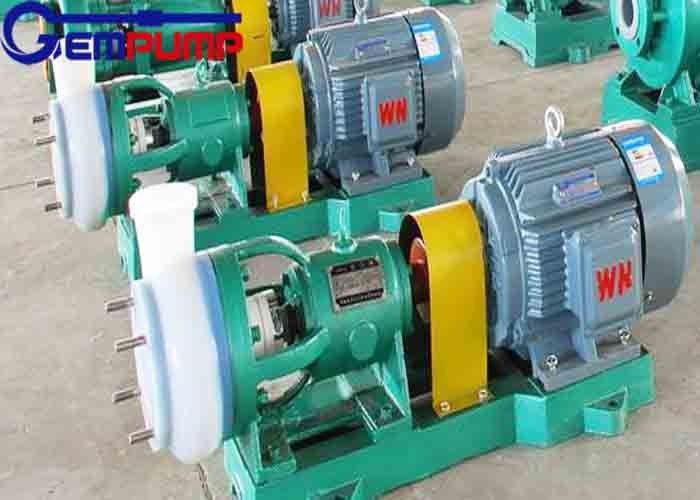

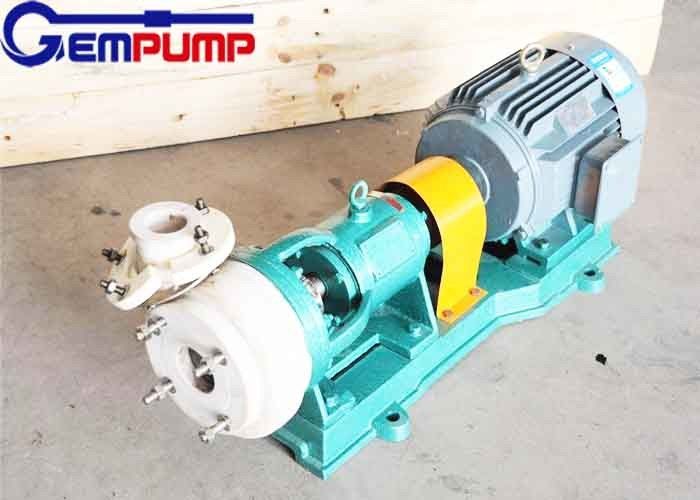

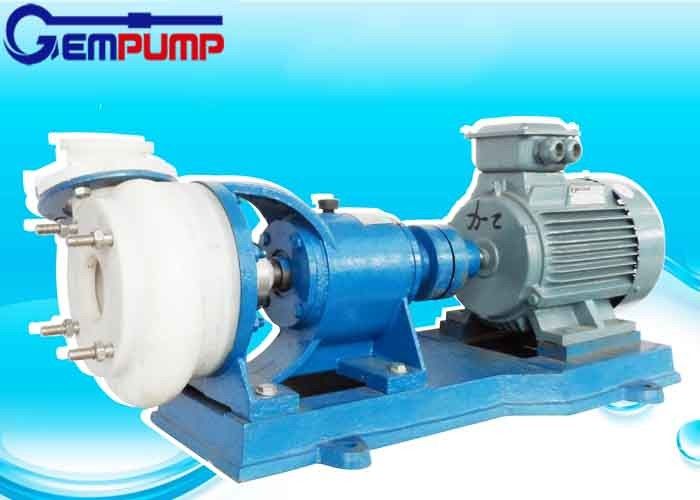

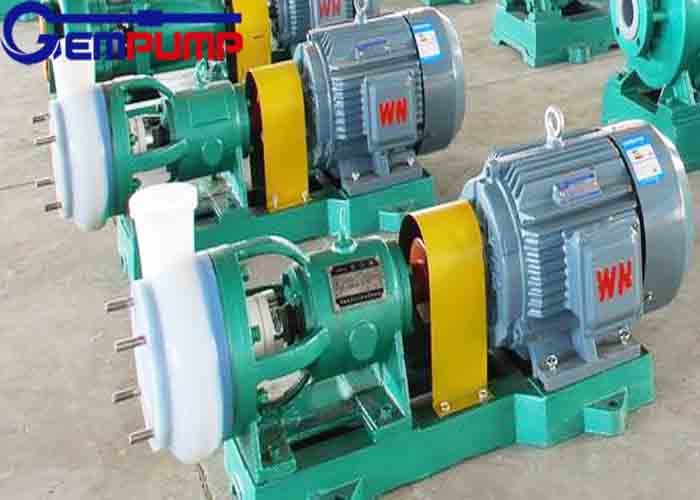

FSB Fluorine Plastic PTFE Lined Chemical Acid Resistant Centrifugal Pump
Acid Resistant Pump Brief introduction
1. Fluorine plastic centrifugal pump is used to transfer acid, oxidant, corrosive medium.forbid to transport of medium which is easy to crystallize.
2. IT has the advantages of strong corrosion resistance ability, high mechanical strength, non aging, no toxin decomposed.
3. All wet parts are made of fluorine plastic, which could be PVDF or FEP(F46) for meeting different application requirements.
4. The pump is mainly used for transferring clean corrosive chemical liquids and solvents.It is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, and food, etc.
FSB Plastic Centrifugal Pumps Product details
| Working Principle: | Centrifugal, full plastic pump head |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 50/60Hz |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | PTFE, UHMWPE, F46, F26 |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 1.5-400m3/h(6.6-1760US.GPM) |
Application
Chlor-alkali industry: lye, electrolyte, refined salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid.
Non-ferrous metal smelting: conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
Iron and steel industry: electroplating, pickling, etc;
Acid production: hydrochloric acid, nitric acidsulfuric acid, phosphoric acid, acetic acid, etc;
Paper-making industry: agents, bleaching liquid, sewage, etc;
Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
Environmental protection: various sorts of medicaments, acid- and alkali- containing wastewater, etc.
FAQ
Q: How about delivery time?
A:1. It is about 3-7 working days if products are in stocks.
2. If product are out of stock, The delivery time depends on the quantity.
Q: Could you provide samples?
A: Yes, of course. We will send samples to you against advance deposit, but the price of sample pump and the freight charge is paied by your side.
Q: How about product problem solution?
A: If you can’t solve the problem in your local, please send the product to us, we will repair it, then back to you.
Q: What is your payment term?
A:T.T, Western union, etc.
