Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 25FSB-18 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | FSB Plastic Chemical Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
| High Light: | Rubber Lined Chemical Centrifugal Pump,1.5kw Chemical Centrifugal Pump,18.5kw Centrifugal Chemical Pump |
||

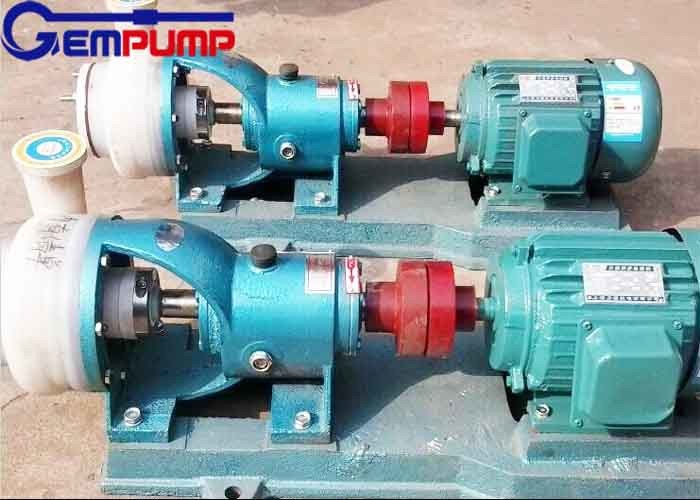

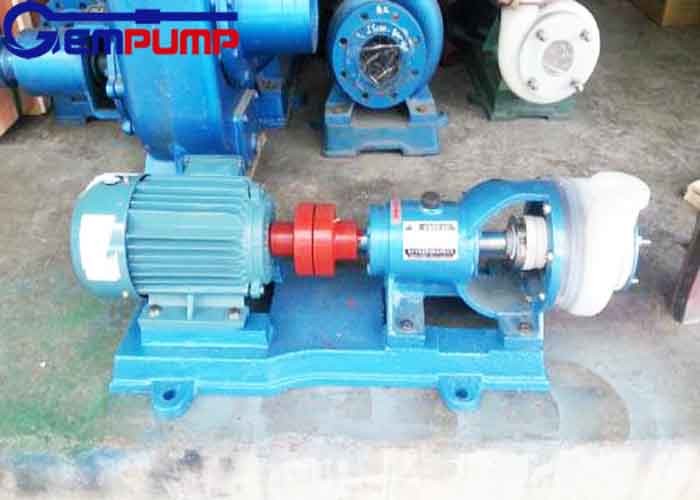

FSB Sugar Slurry Industry Rubber Lined Electric Wear-Resistant Chemical Pump
FSB Pump Introduction
Flow:3.6m3/h-100m3/h Head:15m-55m Power:1.5kw-18.5kw,
Applicable medium:Acids, bases, salts, strong oxidants of any concentration,
Characteristics:Plastic shell, long life of machine seal, portable equipment.
According to the characteristics of different working conditions, choose different configurations
Fluoroplastic centrifugal pump is divided into two types according to the design concept: lining fluorine centrifugal pump (heavy duty) and fluorine alloy centrifugal pump (light). The fluoroplastic centrifugal pump can withstand the corrosion of almost all medium. After selecting suitable mechanical seal, the fluoroplastic centrifugal pump can transport the corrosive medium or high risk chemicals between -20 C and -150 C. For example: hydrochloric acid, fuming sulfuric acid, hydrofluoric acid, concentrated nitric acid, three phosphorus oxychloride, phosphorus trichloride, caustic soda, calcium chloride and so on. Gempump China is fluoroplastic centrifugal pump, fluorine centrifugal pump, fluorine plastic alloy centrifugal pump the most complete model, the lowest price manufacturers.

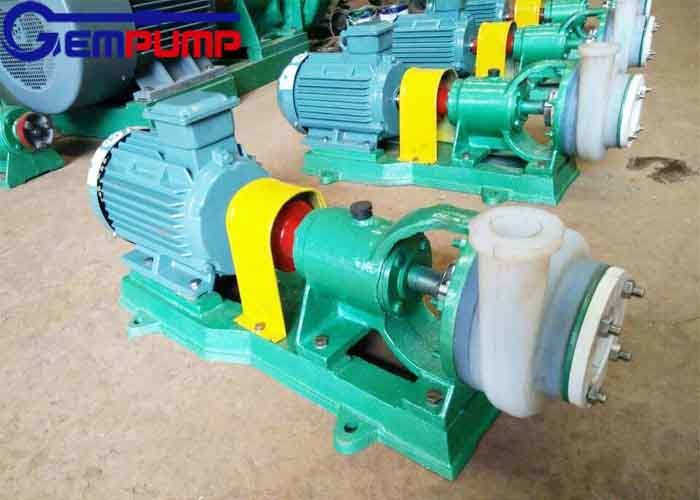

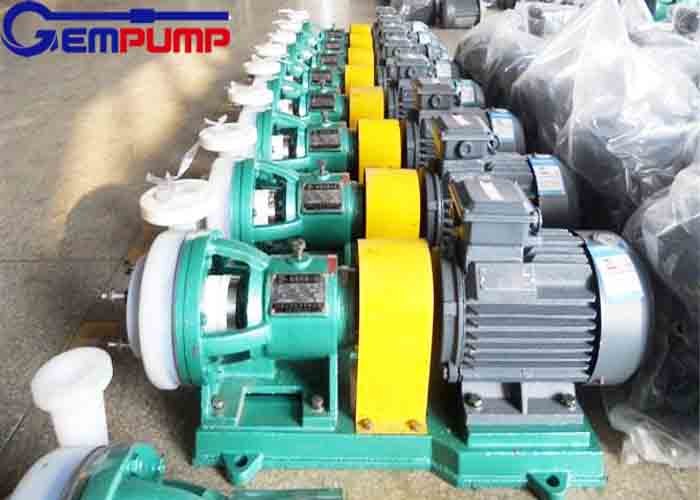

FSB Pump Production Process China Factory
Partial performance parameter table
| TYPE |
Q m3/h |
H(m) | DN (mm) | P (Kw) | N (r/min) |
NPSHr (m) |
n (%) |
||
| IN | OUT | SP | MP | ||||||
| 25FSB-10 | 3.6 | 10 | 25 | 25 | 0.69 | 1.5 | 2900 | 3.0 | 35 |
| 25FSB-20 | 3.6 | 20 | 25 | 25 | 0.97 | 1.5 | 2900 | 3.0 | 35 |
| 25FSB-25 | 3.6 | 25 | 25 | 25 | 1.25 | 1.5 | 2900 | 3.0 | 35 |
| 40FSB-15 | 5 | 15 | 40 | 32 | 0.51 | 3.0 | 2900 | 3.0 | 40 |
| 40FSB-20 | 10 | 20 | 40 | 32 | 1.16 | 3.0 | 2900 | 3.0 | 42 |
| 40FSB-30 | 10 | 30 | 40 | 32 | 1.18 | 3.0 | 2900 | 3.0 | 52 |
| 40FSB-40 | 6.3 | 40 | 40 | 25 | 3.1 | 4.0 | 2900 | 3.0 | 40 |
| 40FSB-50 | 6.3 | 50 | 40 | 25 | 3.55 | 4.0 | 2900 | 3.0 | 52 |
| 40FSB-80 | 6.3 | 80 | 40 | 25 | 7.11 | 7.5 | 2900 | 3.0 | 52 |
| 50FSB-20 | 12.5 | 20 | 50 | 32 | 1.49 | 3.0 | 2900 | 3.5 | 55 |
| 50FSB-25 | 12.5 | 25 | 50 | 32 | 1.86 | 3.0 | 2900 | 3.5 | 55 |
| 50FSB-30 | 15 | 30 | 50 | 32 | 1.90 | 3.0 | 2900 | 3.5 | 54 |
| 50FSB-40 | 12.5 | 40 | 50 | 32 | 4.3 | 7.5 | 2900 | 3.0 | 39 |
| 50FSB-50 | 12.5 | 50 | 50 | 32 | 5.8 | 7.5 | 2900 | 3.0 | 39 |
| 65FSB-32 | 25 | 32 | 65 | 50 | 4.8 | 5.5 | 2900 | 2.0 | 45 |
| 65FSB-40 | 25 | 40 | 65 | 40 | 7.2 | 11 | 2900 | 3.0 | 52 |
| 65FSB-50 | 25 | 50 | 65 | 40 | 8.6 | 11 | 2900 | 3.5 | 52 |
| 65FSB-80 | 25 | 80 | 65 | 40 | 14.1 | 18.5 | 2900 | 4.5 | 50 |
| 80FSB-20 | 50 | 20 | 80 | 65 | 4.7 | 5.5 | 2900 | 3.0 | 45 |
| 80FSB-25 | 50 | 25 | 80 | 65 | 5.7 | 7.5 | 2900 | 3.0 | 50 |
| 80FSB-30 | 50 | 30 | 80 | 65 | 6.9 | 7.5 | 2900 | 3.5 | 59 |
| 80FSB-40 | 50 | 40 | 80 | 50 | 10.2 | 11.0 | 2900 | 3.5 | 48 |
| 80FSB-50 | 50 | 50 | 80 | 50 | 11.9 | 15.0 | 2900 | 3.5 | 57 |
| 80FSB-55 | 50 | 55 | 80 | 50 | 13.5 | 18.5 | 2900 | 4.0 | 50 |
| 80FSB-80 | 50 | 80 | 80 | 50 | 24.6 | 30 | 2900 | 4.0 | 66 |
| 100FSB-20 | 100 | 20 | 100 | 80 | 8.6 | 11.0 | 2900 | 3.5 | 68 |
| 100FSB-32 | 100 | 32 | 100 | 80 | 11.9 | 15.0 | 2900 | 3.5 | 68 |
| 100FSB-40 | 100 | 40 | 100 | 65 | 21.3 | 30.0 | 2900 | 4.5 | 73 |
| 100FSB-50 | 100 | 50 | 100 | 65 | 23.9 | 30.0 | 2900 | 4.5 | 73 |
| 125FSB-32 | 160 | 32 | 125 | 80 | 24.15 | 30.0 | 2900 | 5.0 | 70 |
| 125FSB-50 | 200 | 50 | 125 | 100 | 39.2 | 55.0 | 2900 | 5.0 | 65 |
| 150FSB-32 | 150 | 32 | 200 | 125 | 35.3 | 45.0 | 1450 | 5.0 | 60 |
| 40FSB-15(D) | 5 | 15 | 40 | 32 | 0.51 | 3.0 | 2900 | 3.0 | 40 |
| 40FSB-20(D) | 10 | 20 | 40 | 32 | 1.16 | 3.0 | 2900 | 3.0 | 42 |
| 40FSB-30(D) | 10 | 30 | 40 | 32 | 1.18 | 3.0 | 2900 | 3.0 | 52 |
| 50FSB-20(D) | 12.5 | 20 | 50 | 32 | 1.49 | 3.0 | 2900 | 3.5 | 55 |
| 50FSB-25(D) | 12.5 | 25 | 50 | 32 | 1.86 | 3.0 | 2900 | 3.5 | 55 |
| 50FSB-30(D) | 15 | 30 | 50 | 32 | 1.90 | 3.0 | 2900 | 3.5 | 54 |
| 65FSB-32(D) | 25 | 32 | 65 | 50 | 3.61 | 5.5 | 2900 | 3.5 | 65 |
| 80FSB-25(D) | 42 | 25 | 80 | 65 | 3.8 | 7.5 | 2900 | 3.5 | 67 |
| 80FSB-30(D) | 50 | 30 | 80 | 65 | 6.82 | 7.5 | 2900 | 3.5 | 68 |
FSB Pump Structural Assembly Drawing China
