Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 25FSB-18 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | FSB Plastic Chemical Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
| High Light: | ISO9001 Chemical Resistant Centrifugal Pump,3.6m3/H Acid Circulation Pump,ISO9001 Acid Circulation Pump |
||

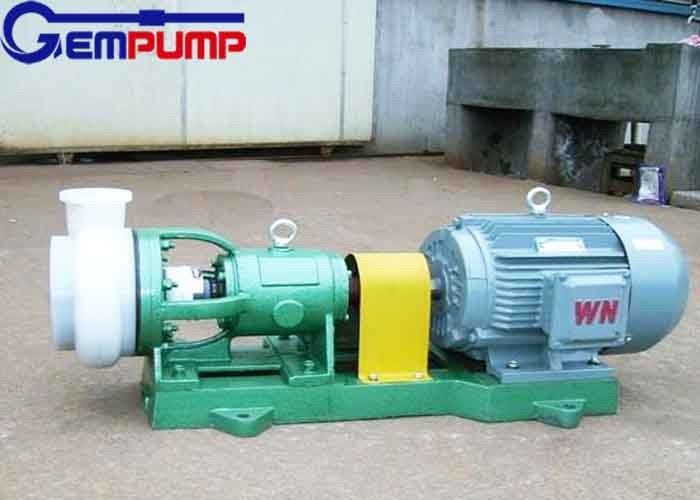

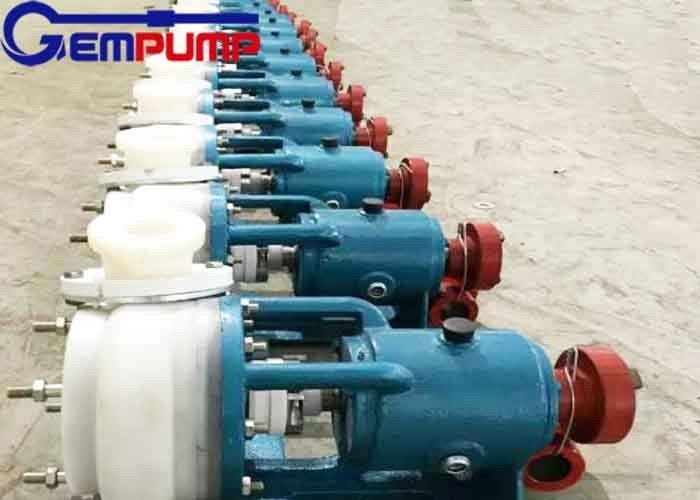

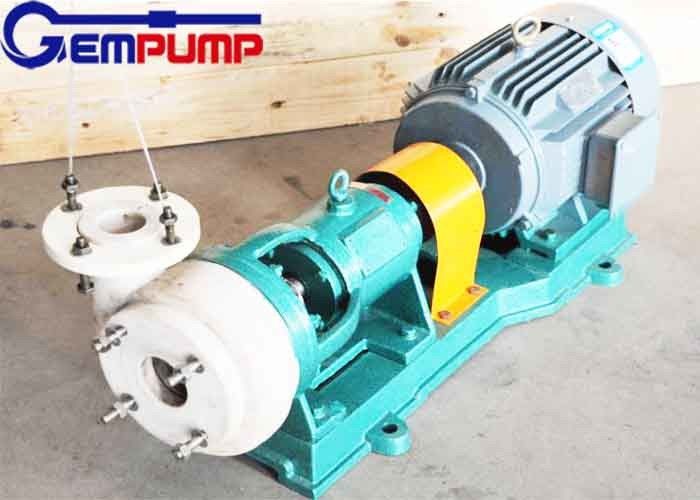

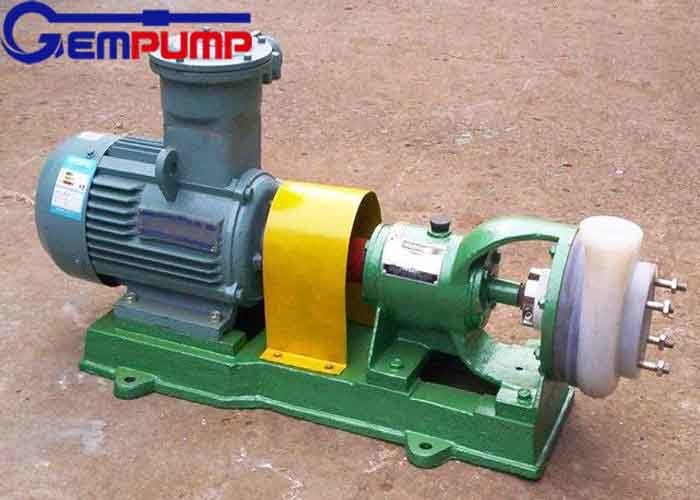

FSB Plastic Chemical Pump for Corrosive Acid Chemical Liquid Centrifugal Pump
FSB Plastic Pumps Overview
Our FSB type chemical dosing pump, can be used under - 80-150 degrees temperature conditions, long-term conveying any concentration of all sorts of acid, alkali, salt, strong oxidizer etc. And its body and flow-passing parts are made of F46 fluorine alloy, it combines the advantage of many fluorine plastic, with particularly strong corrosion resistance, and with high mechanical strength, not aging, no toxin decomposition. This product is with reasonable design, compact structure, reliable performance, convenient operation and maintenance, high efficiency, and energy conservation.
Pump Shaft Seal
FSB type fluoro plastic chemical pump adopts the advanced outside-fitted bellows mechanical seal, with multilayer protection and prolong the service life. For conveying with impurities particle medium, can use waterless cooling single seal face (carborundum material) mechanical seal, so medium solid content should be considered when selection.
Design Features
FSB type fluoroplastic alloy centrifugal pump flow components adopt fluoroplastic alloy material, compact structure, simple operation, low price. The pump body, impeller, pump cover, mechanical seal parts can changed with FSB (D) type direct coupled fluorine alloy centrifugal pump, it is widely accepted by our customers.
Performance Parameters
| Model | Capacity (m3/h | Head (m) | Diameter(mm) | Power(kw) | Speed (r/min) | NPSH (m) | Eff. (%) | ||
| Suc. | Dis. | Shaft | Motor | ||||||
| 25FSB-10 | 1.5 | 10 | 25 | 20 | 0.9 | 1.5 | 2900 | 3 | 25 |
| 25FSB-18 | 3.6 | 18 | 25 | 20 | 1.1 | 2.2 | 2900 | 3 | 27 |
| 40FSB-15 | 5 | 15 | 40 | 32 | 1.1 | 3 | 2900 | 3 | 40 |
| 40FSB-30 | 10 | 30 | 40 | 32 | 1.2 | 3 | 2900 | 3 | 42 |
| 50FSB-25 | 12.5 | 25 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 43 |
| 50FSB-30 | 12.5 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 42 |
| 65FSB-32 | 25 | 32 | 65 | 50 | 4.8 | 5.5 | 2900 | 3.5 | 45 |
| 80FSB-20 | 50 | 20 | 80 | 65 | 4.7 | 5.5 | 2900 | 3.5 | 45 |
| 80FSB-25 | 42 | 25 | 80 | 65 | 5.7 | 7.5 | 2900 | 3.5 | 50 |
| 80FSB-30 | 50 | 30 | 80 | 65 | 6.9 | 7.5 | 2900 | 4 | 59 |
| 80FSB-40 | 45 | 40 | 80 | 50 | 10.2 | 11 | 2900 | 4 | 48 |
| 80FSB-50 | 50 | 50 | 80 | 50 | 11.9 | 15 | 2900 | 4 | 57 |
| 80FSB-55 | 50 | 55 | 80 | 50 | 13.5 | 18.5 | 2900 | 4 | 50 |
| 100FSB-23 | 100 | 32 | 100 | 80 | 11.9 | 15 | 2900 | 3.5 | 68 |
Company Introduction
Gempump China is a ISO9001-2008 listed company, which is located in Shijiazhuang, and has production bases in Hebei. It is a famouse diversified enterprise integrating R&D, production, sales and service of various kinds of pumps. Main products are Centrifugal pumps, Chemical pumps, Sewage pumps, Oil pumps, Vacuum pumps, Diesel pumps, Water supply system, etc. We have obtained import and export license, and own an independent foreign trade department with a good professional team, providing superb and efficient service for foreign merchants. Now 70% of our pumps are exported to over 40 countries in South East Asia, Middle East, Africa, Europe..Sincerely hope to work with you.
Q: What type of company Gempump is?
A: Gempump is a manufacture and trading company, has factories in Shijiazhuang,China, with export and import license.
Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.
Q: What is your payment terms?
A: Western Union, Paypal, T/T, L/C, etc.
Q: Can you provide OEM, ODM service?
A: Yes, we can make products according to your requirements.
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
