Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | 25FSB-10L |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 SET/Month |
| Product: | FSB Plastic Chemical Pump | Principle: | Centrifugal |
|---|---|---|---|
| Applications: | Chemical | Power: | Electric Motor |
| Voltage: | AC220V AC380V AC415V/50HZ | Temperature: | 80°C (176°F) |
| Connection: | Flange | Position: | Horizontal |
| Material: | Fluoroplastic, Polyethylene | Seal: | Mechanical Seal |
| High Light: | polyethylene Monoblock Centrifugal Pump,2.2KW Monoblock Centrifugal Pump,2.2KW centrifugal monoblock pump |
||

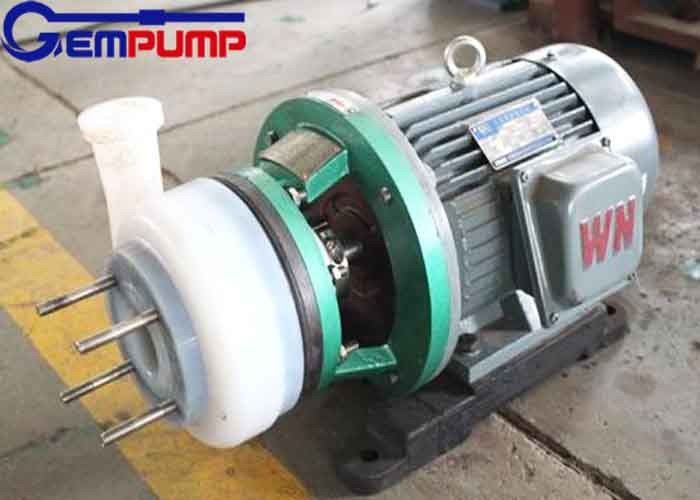

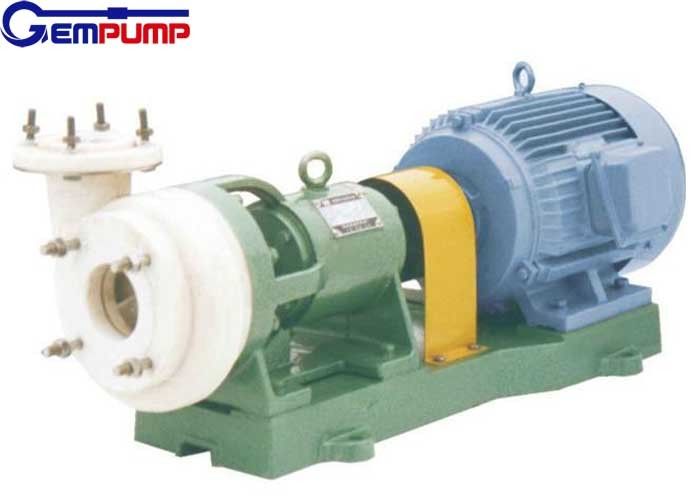

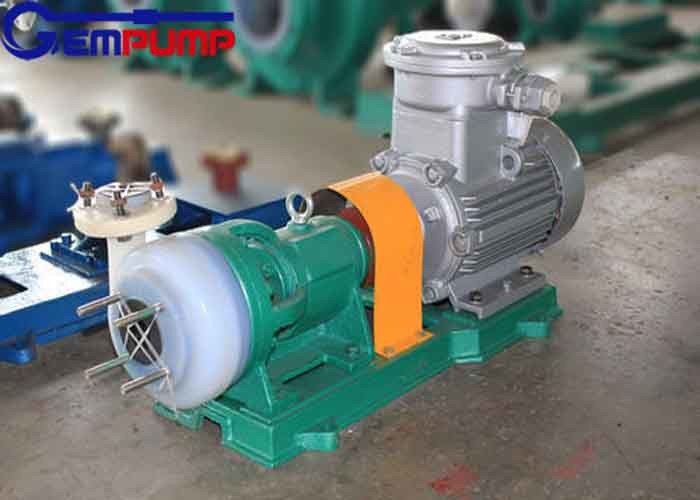

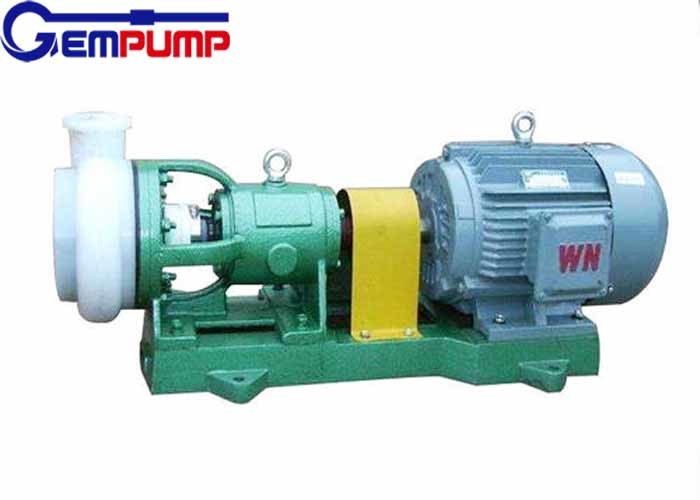

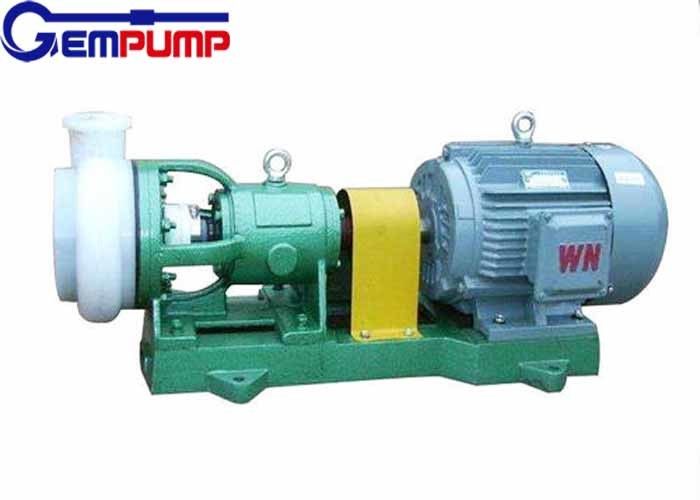

FSB Fluorine Plastic Chemical Pump Acid Resistant Monoblock Centrifugal Pump
FSB Plastic Chemical Pump introduction:
1. FSB fluorine plastic chemical pump acid resistant monoblock pump is applied to convey acid, oxidant, corrosive medium with physical property similar to water.
2. The monoblock pump is with the merits of reasonable design, strong corrosion resistance ability, high mechanical strength, non aging and easy in maintenance.
3. Wet parts are made of fluorine plastic or polyethylene, and pump could be designed to direct connect type or shaft contact type.
4. The acid resistant pump is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, etc.
Acid Resistant Centrifugal Pumps details:
| Working Principle: | Centrifugal |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 220/380/400/415V 3phase;50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Fluoroplastic, polyethylene, etc |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0mm |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 1.5-400m3/h(6.6-1760US.GPM) |
Pump Performance data:
| Model | Capacity | Head | Inlet | Outlet | Power | Speed | Suction | Efficiency |
| (m3/h) | (m) | (mm) | (mm) | (KW) | (r/min) | (m) | (%) | |
| 25FSB-10L | 1.5 | 10 | 25 | 20 | 2.2 | 2900 | 6 | 29 |
| 25FSB-18L | 3.6 | 18 | 25 | 20 | 2.2 | 2900 | 6 | 27 |
| 40FSB-15L | 10 | 15 | 40 | 32 | 3 | 2900 | 6 | 40 |
| 40FSB-20L | 10 | 20 | 40 | 32 | 3 | 2900 | 6 | 42 |
| 40FSB-30L | 10 | 30 | 40 | 32 | 3 | 2900 | 6 | 38 |
| 40FSB-40L | 10 | 40 | 40 | 32 | 4 | 2900 | 5.5 | 35 |
| 40FSB-50L | 10 | 50 | 40 | 32 | 5.5 | 2900 | 5 | 33 |
| 50FSB-20L | 15 | 20 | 50 | 40 | 4 | 2900 | 6 | 51 |
| 50FSB-25L | 15 | 25 | 50 | 40 | 4 | 2900 | 6 | 49 |
| 50FSB-30L | 15 | 30 | 50 | 40 | 4 | 2900 | 6 | 44.5 |
| 50FSB-40L | 15 | 40 | 50 | 32 | 5.5 | 2900 | 5.5 | 35 |
| 50FSB-50L | 15 | 50 | 50 | 32 | 7.5 | 2900 | 5.5 | 33 |
| 65FSB-32L | 29 | 32 | 65 | 50 | 5.5 | 2900 | 6 | 57 |
| 65FSB-40L | 29 | 40 | 65 | 40 | 7.5 | 2900 | 5.5 | 53 |
| 65FSB-50L | 29 | 50 | 65 | 40 | 11 | 2900 | 5.5 | 46 |
| 80FSB-20L | 50 | 20 | 80 | 65 | 7.5 | 2900 | 6 | 69 |
| 80FSB-30L | 50 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 64 |
| 80FSB-34L | 50 | 34 | 80 | 65 | 11 | 2900 | 5.5 | 64 |
| 80FSB-38L | 50 | 38 | 80 | 50 | 11 | 2900 | 5.5 | 60 |
| 80FSB-50L | 50 | 50 | 80 | 50 | 15 | 2900 | 6 | 53 |
| 80FSB-80L | 50 | 80 | 80 | 50 | 22 | 2900 | 5.5 | 36 |
| 100FSB-32L | 100 | 32 | 100 | 80 | 18.5 | 2900 | 5.5 | 70 |
| 100FSB-40L | 100 | 40 | 100 | 80 | 22 | 2900 | 5.5 | 70 |
| 100FSB-50L | 100 | 50 | 100 | 65 | 30 | 2900 | 5.5 | 62 |
| 125FSB-32L | 200 | 32 | 125 | 80 | 30 | 2900 | 5.5 | 72 |
| 125FSB-50L | 200 | 50 | 125 | 100 | 45 | 2900 | 5.5 | 64 |
| 150FSB-32L | 200 | 32 | 150 | 100 | 30 | 1450 | 5.5 | 77 |
| 150FSB-50L | 200 | 50 | 150 | 100 | 55 | 1450 | 5 | 75 |
FSB Plastic Pumps Application Scope
This pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric, organic dissolvent and reducing agent etc. therefore it is applied in the chemical, oil, pharmaceutics, metallurgy, light industry, printing dyeing, paper making, food and etc.
FSB PTFE Pumps Application
Chlor-alkali industry: lye, electrolyte, refined salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid.
Non-ferrous metal smelting: conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
Iron and steel industry: electroplating, pickling, etc;
Acid production: hydrochloric acid, nitric acidsulfuric acid, phosphoric acid, acetic acid, etc;
Paper-making industry: agents, bleaching liquid, sewage, etc;
Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
Environmental protection: various sorts of medicaments, acid- and alkali- containing wastewater, etc.
