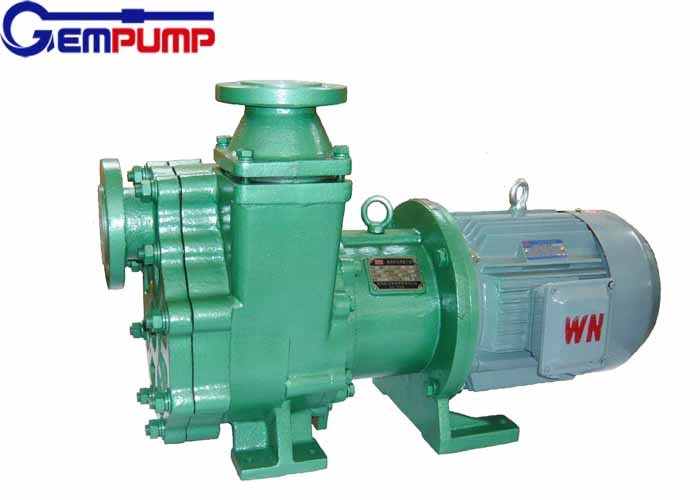

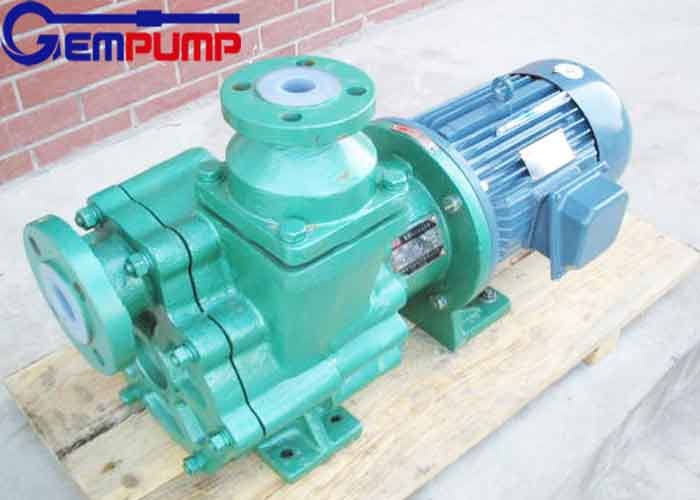

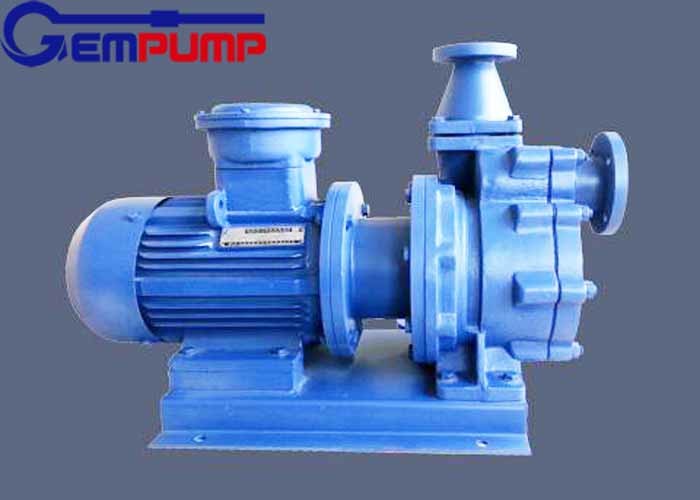

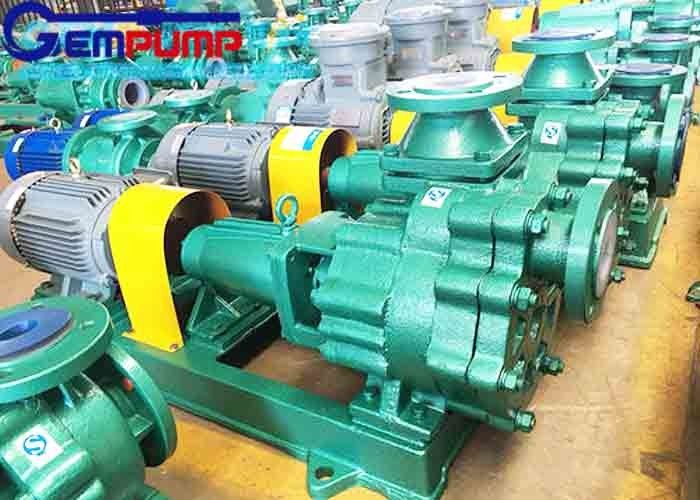

ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump

small.img.alt
small.img.alt ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump small.img.alt ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump small.img.alt ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump small.img.alt ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump ZFT PTFE Lined Magnetic Centrifugal Pump Self Priming Centrifugal Pump
Basic Information
Place of Origin: China
Brand Name: Gempump
Certification: ISO9001 CE
Model Number: 32ZFT-25
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SET/Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product: Self Priming PTFE Magnetic Drive Pump Place Of Orign: China
Application: Aicd,Alkali,Wastewater Transport Warranty: 2 Year
Lead Time: 10 Days Motor Voltage: AC220V,AC380V,AC415V
Pump Material: SS304.SS316.SS316L Power: Electric Motor
Structure: Single Stage Pump Seal: Mechanical Seal,no Leakage
High Light:

ZFT Magnetic Centrifugal Pump

,

PTFE Lined Magnetic Centrifugal Pump

,

ZFT self priming centrifugal pump

CZF Self Priming Centrifugal Pump Non-Leakage PTFE Lined Magnetic Centrifugal Pump



Magnetic Centrifugal Pump introduction:



CZF self priming centrifugal pump non-leakage PTFE lined magnetic pump

1. Pump body is made of suction liquid cavity, liquid storage cavity, volute, reflowing hole, gas-liquid separation cavity, etc.

2. Pump body is made of cast iron lined with fluoroplastics(PTFE, FEP, PFA), inner rotor, pump cover, impeller, spacer sleeve, etc wet parts are made of alloy lined with fluoroplastics(PTFE, FEP, PFA).

3. Shaft sleeve, sliding bearing made by wearable carborundum, graphite, teflon, etc material. And with the lubrication groove, it could help to extend the service life of pump.

4. Closed static seal solved the leakage problem of liquid. Air & liquid mixed self priming type design, pump is with good self priming ability, the self suction height could be reach to 4m.





SPECIFICATION PARAMETER



NO. Type Flow (m³/h) Head (m) Enmcenoy NPSH Import*export Self-priming helght NPSH Speed Power Welght
1 32ZFT-25F 3.6 25 55% 4m 32mm×25mm 1.5m 3m 2900r/min 2.2KW 65KG
2 40ZFT-20F 6 20 46% 3m 40mm×25mm 3m 3m 2900r/min 1.5KW 85KG
3 40ZFT-30F 6 30 43% 3m 40mm×25mm 3m 3m 2900r/min 3KW 120KG
4 50ZFT-20F 12.5 20 50% 3m 50mm×50mm 3m 3.2m 2900r/min 2.2KW 100KG
5 50ZFT-30F 12.5 30 46% 3m 50mm×50mm 3m 3.2m 2900r/min 4KW 130KG
6 50ZFT-45F 12.5 45 42% 3m 50mm×32mm 3m 3.2m 2900r/min 7.5KW 190KG
7 65ZFT-20F 12.5 20 55% 3.5m 65mm×50mm 3m 3.5m 2900r/min 4KW 140KG
8 65ZFT-30F 25 30 48% 3.5m 65mm×50mm 3m 3.5m 2900r/min 5.5KW 170KG
9 65ZFT-45F 25 45 45% 3.5m 65mm×40mm 3m 3.5m 2900r/min 11KW 230KG
10 80ZFT-20F 60 30 57% 4.5m 80mm×65mm 3m 4.5m 2900r/min 7.5KW 180KG
11 80ZFT-30F 60 30 52% 4.5m 80mm×65mm 3m 4.5m 2900r/min 11KW 240KG
12 80ZFT-45F 50 45 50% 4.5m 80mm×65mm 3m 4.5m 2900r/min 18.5KW 320KG
Suction height=Atmospheric water column-NPSHr-0.5m





PTFE Lined Magnetic Pump Performance range:



Flow rate: 2~120m3/h

Designed pressure: 1.6Mpa

Head: 12~80m

Power: 1.1~55kw

Allowed liquid temperature: -20°c ~120°c

Customized device: temperature monitor device, anti-idle device, leakage monitoring device.

Noted: If liquid density bigger than 1.3mg/cm3, pls note it for ref. Free-load running is forbidden. Can't use to transfer liquid with solids or crystal.



CZF Self Priming Centrifugal Pump Application range:



Wide used to transfer flammable & combustible & volatile high temperature alkali, acid, organic solvent, precious liquids, etc for petrochemical engineering, chemical fertilizer industry, alkali manufacturing, steelmaking, tombarthite, pesticide, dyestuff, medicine, paper-making industry, electroplating, electrolysis, scientific research institution, national defence industry, etc.
