Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | ZCQ20-12-110 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SET/Month |
| Product: | Self Priming Magnetic Drive Pump | Place Of Orign: | China |
|---|---|---|---|
| Application: | Aicd,Alkali,Wastewater Transport | Warranty: | 2 Year |
| Lead Time: | 10 Days | Motor Voltage: | AC220V,AC380V,AC415V |
| Pump Material: | SS304.SS316.SS316L | Power: | Electric Motor |
| Structure: | Single Stage Pump | Seal: | Mechanical Seal,no Leakage |
| High Light: | SS316 Magnetic Centrifugal Pump,ZCQ Magnetic Centrifugal Pump,SS304 self priming magnetic pump |
||

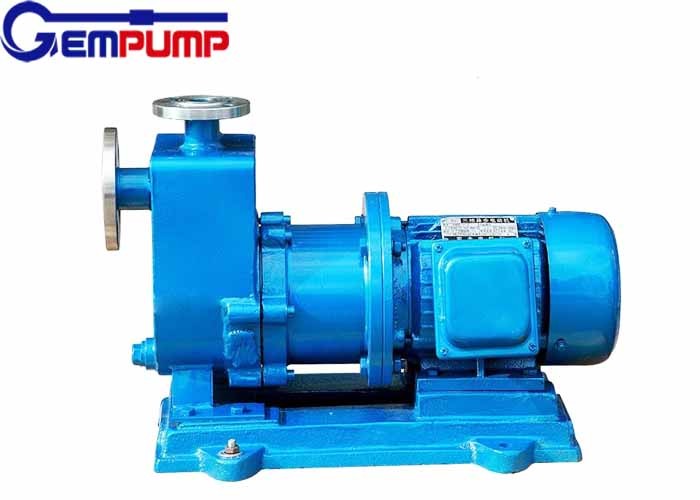

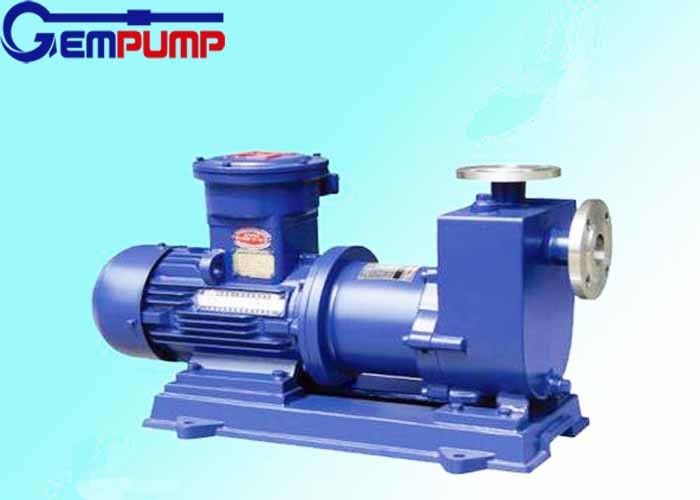

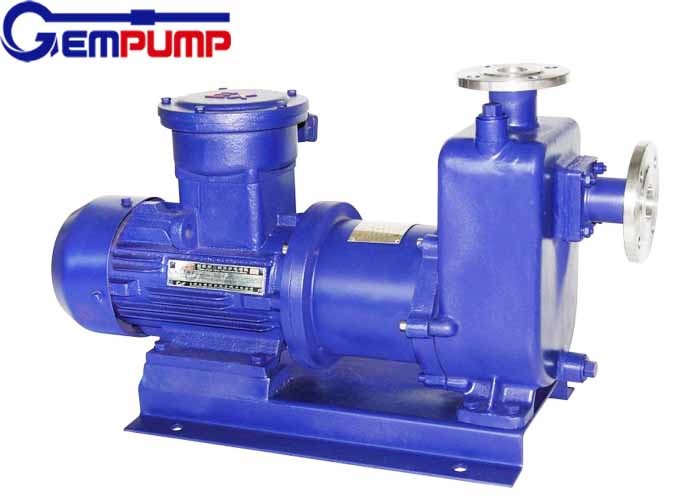

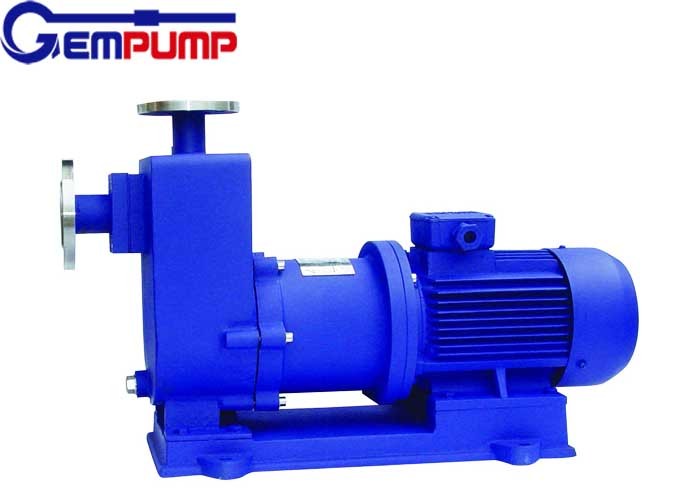

Medicine Chemical Handling Stainless Steel Self Priming Magnetic Drive Pump
Stainless Steel Self Priming Magnetic Drive Pump Introduction:
ZCQ magnetic self priming water pumps for low sump application are new products to apply the working principle of permanent magnetism coupling into the centrifugal pump, characterized by reasonable design, advanced process, full seal, zero leakage and corrosion resistance. Their performance can reach the advanced level of foreign like product.
1. Magnetic self priming water pump for low sump application is full sealed, non-leakage and corrosion resistant.
2. The self-priming magnetic pump is compact in structure, with small volume, good corrosion resistance ability, low noise, reliable running performance and easy to maintain.
3. The centrifugal pump could be used to deliver acid, lye, oils, rare & precious liquid, venom, volatile liquidor works in circulating fluid equipment. Even wonderful to pump the liquid that is inflammable, explosive or volatile.
4. Widely used in petroleum chemical industry, pharmacy, petroleum industry, plating, food industry, film processing, scientific researching and national defense industry, etc.
Magnetic Drive Pumps Details:
| Working Principle: | Centrifugal, Magnetic, Self priming |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Stainless steel |
| Shaft seal type: | Static sealing |
| Suction ablity | 3min/4m(3min/9.8ft ) |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 100mm(4inch) |
| Maximum discharge-side pressure: | 0.86MPa(8.6bar) |
| Maximum head: | 86m(282.1ft) |
| Flow rate range: | 1-120m3/h(4.4-528US.GPM) |
Self Priming Magnetic Drive Pump Structure:
Performance Parameters:
|
Model
|
Diameter
|
Head(m )
|
Capacity(l/min)
|
Power(kw)
|
Speed(r/min)
|
Votage(v)
|
Self-priming time
(m 3 /min)
|
|
|
Inlet
|
Outlet
|
|||||||
|
ZCQ20-12-110
|
20
|
15
|
12
|
50
|
0.37
|
2900
|
380
|
4
|
|
ZCQ25-20-115
|
25
|
20
|
15
|
110
|
1.1
|
2900
|
380
|
4
|
|
ZCQ32-25-115
|
32
|
25
|
15
|
110
|
1.1
|
2900
|
380
|
4
|
|
ZCQ32-25-145
|
32
|
25
|
25
|
80
|
1.1
|
2900
|
380
|
4
|
|
ZCQ40-32-132
|
40
|
32
|
20
|
180
|
2.2
|
2900
|
380
|
4
|
|
ZCQ40-32-160
|
40
|
32
|
32
|
180
|
4
|
2900
|
380
|
4
|
|
ZCQ50-40-145
|
50
|
40
|
25
|
240
|
4
|
2900
|
380
|
4
|
|
ZCQ50-40-160
|
50
|
40
|
32
|
220
|
4
|
2900
|
380
|
4
|
|
ZCQ50-40-200
|
50
|
40
|
50
|
130
|
5.5
|
2900
|
380
|
4
|
|
ZCQ65-50-145
|
65
|
50
|
25
|
280
|
5.5
|
2900
|
380
|
4
|
|
ZCQ65-50-160
|
65
|
50
|
32
|
450
|
7.5
|
2900
|
380
|
4
|
|
ZCQ80-65-125
|
80
|
65
|
20
|
800
|
7.5
|
2900
|
380
|
4
|
|
ZCQ80-65-160
|
80
|
65
|
32
|
800
|
15
|
2900
|
380
|
4
|
|
ZCQ100-80-160
|
100
|
80
|
32
|
1700
|
22
|
2900
|
380
|
4
|
