Place of Origin: | China |
---|---|
Brand Name: | Gempump |
Certification: | ISO9001 CE |
Model Number: | CQB80-65-160 |
Minimum Order Quantity: | 1 set |
Price: | 1000 USD/SET |
Packaging Details: | Ply wooden box |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000 SET/Month |
Product: | No-Leakage Magnetic Pump | Place Of Orign: | China |
---|---|---|---|
Application: | Aicd,Alkali,Wastewater Transport | Warranty: | 2 Year |
Lead Time: | 10 Days | Motor Voltage: | AC220V,AC380V,AC415V |
Pump Material: | SS304.SS316.SS316L | Power: | Electric Motor |
Structure: | Single Stage Pump | Seal: | Mechanical Seal,no Leakage |
High Light: | SS304 High Temperature Circulating Pump,SS304 Acid Transfer Pump,CQB-G High Temperature Circulating Pump |

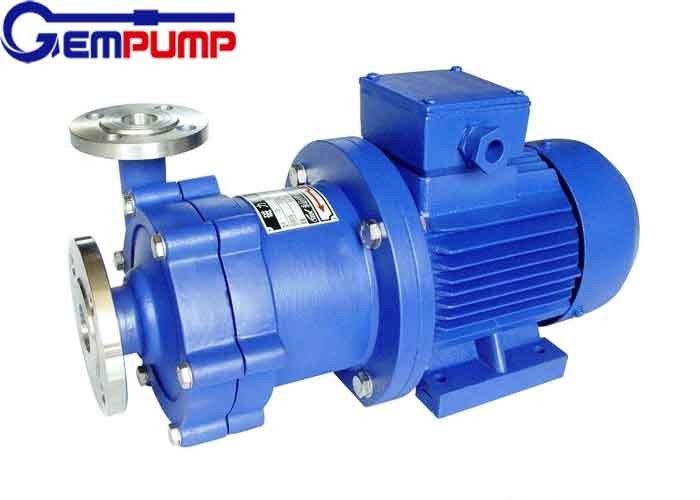

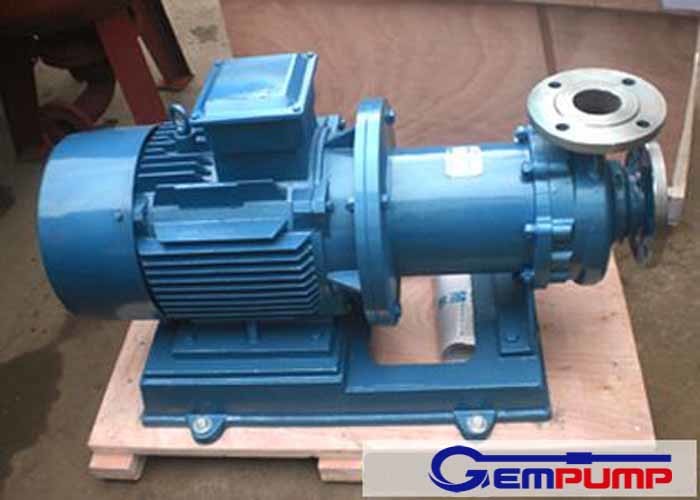

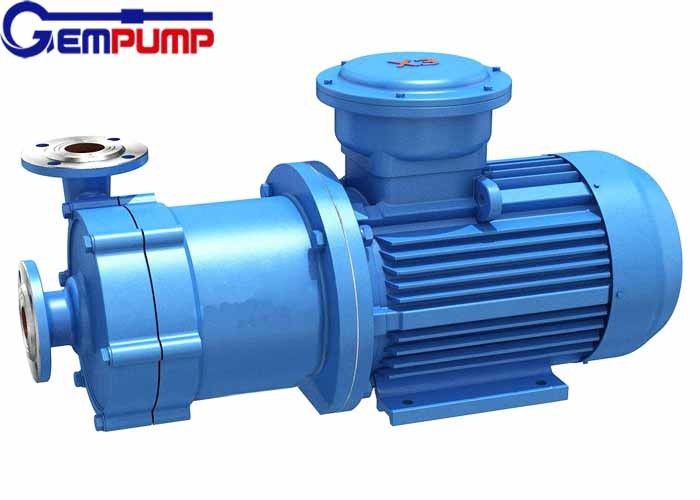

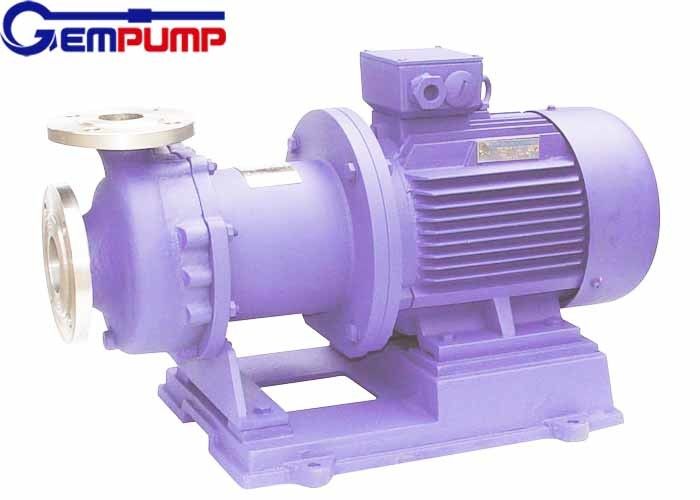

High Temperature Circulating Pump Acid Transfer Pump No-Leakage Magnetic Pump
CQB Stainless Steel Magnetic Pump Introduction:
1. CQB CQB-G high temperature circulating pump acid transfer pump no-leakage magnetic pump adopts the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
2. It is with merits of compact structure, good corrosion resistance ability, reliable running and no leakage.
3. The magnetic pump is used to trasnfer acid, lye, oil, rare and precious liquid, venom, volatile, etc.
4. Widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.
Flow: 3.2-100m3/h head:20-80m power: 0.75~75KW
CQB magnetic pump characteristics
1. Good anti-corrosion performance
The wet part is made of stainless steel, high-density carbon, high-purity oxidized AL ceramics, filled by PVDF, in an anti-leak seal structure.
2. High-efficiency/energy-saving design
High-efficiency 50-55%, energy-saving design.
3. Easy maintenance.
Technical parameters:
Type | Diameter (mm) | flow (m3/h) | head (m) | (npsh)r(m) | Rotation speed (r/min) | Motor power (kw) | |
inlet | outlet | ||||||
cqb32-20-125 | 32 | 20 | 3.2 | 20 | 5.0 | 2900 | 1.1 |
cqb32-20-160 | 32 | 3.5 | 1.5 | ||||
cqb40-25-105 | 40 | 25 | 6.3 | 12.5 | 6.0 | 1.1 | |
cqb40-25-125 | 20 | 6.0 | 2.2 | ||||
cqb40-25-160 | 32 | 3.5 | 3 | ||||
cqb40-25-200 | 50 | 3.5 | 5.5 | ||||
cqb50-40-85 | 50 | 40 | 12.5 | 8 | 3.5 | 1.1 | |
cqb50-32-105 | 32 | 12.5 | 3.5 | 2.2 | |||
cqb50-32-125 | 20 | 3.5 | 3 | ||||
cqb50-32-160 | 32 | 3.5 | 4 | ||||
cqb50-32-200 | 50 | 3.5 | 7.5 | ||||
cqb50-32-250 | 80 | 3.5 | 15 | ||||
cqb65-50-125 | 65 | 50 | 25 | 20 | 4.0 | 5.5 | |
cqb65-50-160 | 32 | 4.0 | 7.5 | ||||
cqb65-40-200 | 40 | 50 | 4.0 | 15 | |||
cqb65-40-250 | 80 | 4.0 | 22 | ||||
cqb80-65-125 | 80 | 65 | 50 | 20 | 4.0 | 7.5 | |
cqb80-65-160 | 32 | 4.0 | 15 | ||||
cqb80-50-200 | 50 | 50 | 4.0 | 18.5 | |||
cqb80-50-250 | 80 | 4.0 | 37 | ||||
cqb100-80-125 | 100 | 80 | 100 | 20 | 4.0 | 15 | |
cqb100-80-160 | 32 | 4.0 | 22 | ||||
cqb100-65-200 | 65 | 50 | 4.0 | 37 | |||
cqb100-65-250 | 80 | 4.0 | 55 |
Model significance:
Examples: CQB50-32-160
CQ ------- magnetic drive pump
B ------- current component materials for metal
50 ------- suction port diameter (mm)
32 ------- row outlet diameter (mm)
160 ------- impeller nominal diameter (mm)
