Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CQ65-50-160 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SET/Month |
| Product: | Stainless Steel Magnetic Pump | Place Of Orign: | China |
|---|---|---|---|
| Application: | Aicd,Alkali,Wastewater Transport | Warranty: | 2 Year |
| Lead Time: | 10 Days | Motor Voltage: | AC220V,AC380V,AC415V |
| Pump Material: | SS304.SS316.SS316L | Power: | Electric Motor |
| Structure: | Single Stage Pump | Seal: | Mechanical Seal,no Leakage |
| High Light: | SS316L Magnetic Drive Chemical Pump,0.5MPa Magnetic Drive Chemical Pump,40HP chemical centrifugal pump |
||

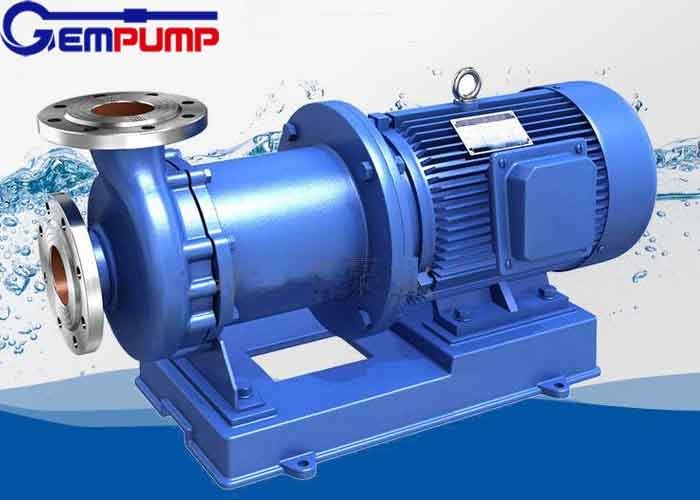

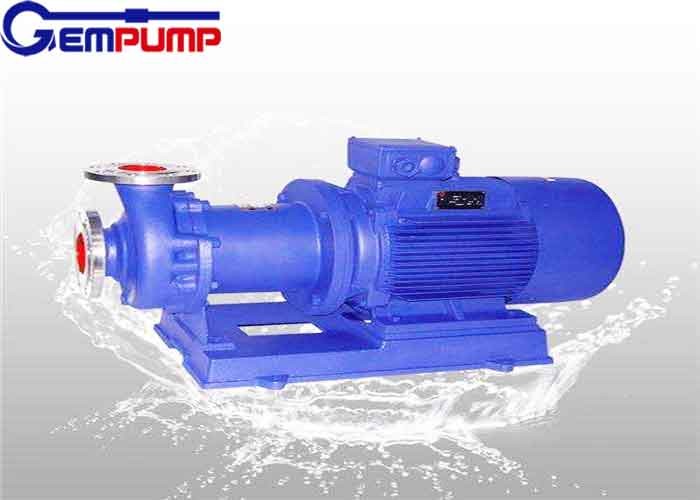

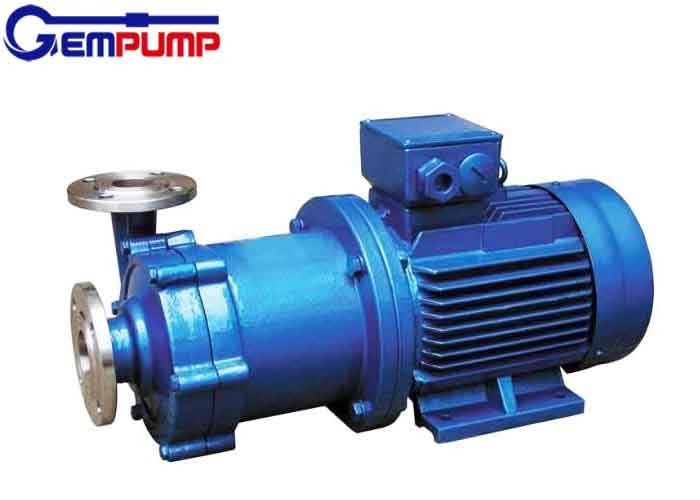

CQB Stainless Steel SS316L Transfer Leakless Dosing Magnetic Pump
Stainless Steel Magnetic Pump Overview:
1. CQB stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion
2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.
3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.
4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.
5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.
6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.
Product details:
| Working Principle: | Centrifugal, Magnetic drive |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 220V/380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 95°C(203°F) |
| Type of connection: | Flange, Tube. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel 304 / 316 |
| Maximum drive rating: | 30KW(40HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.5MPa(5bar) |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 30-3350L/min(7.9-884.4 US.GPM) |
Our Advantages:
1) High quality with Low Price
2) Delivery in time
3) Vibration resistant Easy to transport and install
4) Body with excellent thermal managing design
5) Different colors for your select
Payment Terms:
1 ) Payment:30% in advance,+70% balance should be paid before delivery.
2 ) Lead time:1x20ft for 15 days;1x40ft for 20 days
3 ) Port of loading:guangzhou,Mainland china.
4 ) Discounts are offered based on order quantities.
FAQ:
1.Q: Are your company is trading company or manufacture?
A: China Gempump is a large professional manufacturer for more than 10 years,We have our own factory.
2. Q: What's your factory workshops?

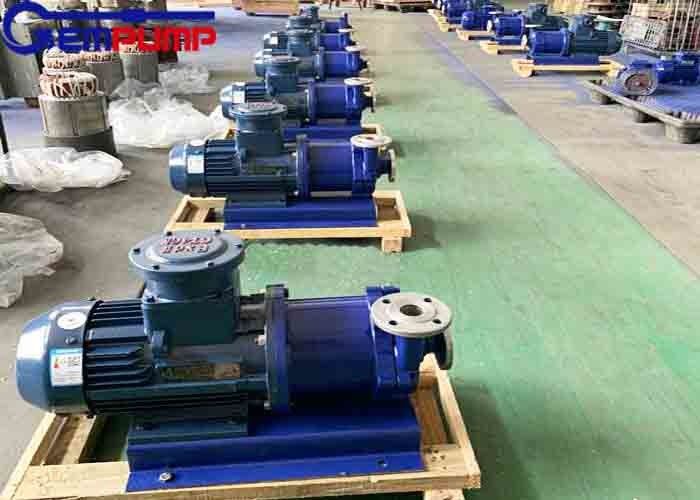

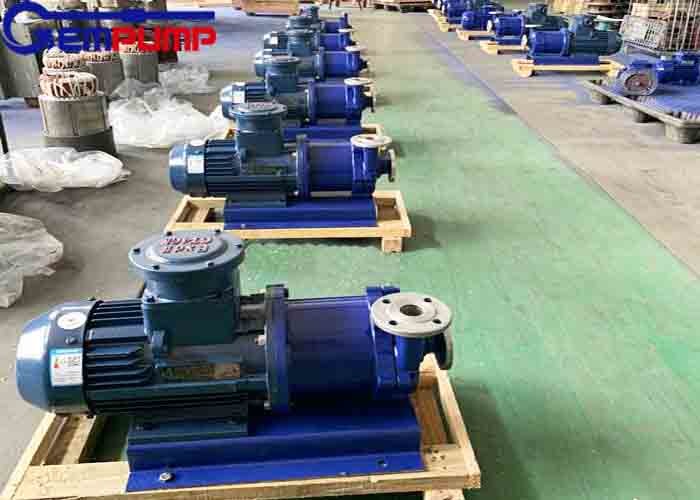

A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc.
3. Q: How about your pumps price?
A: Our price is factory price,and insist high quality for long-term cooperation.
4. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.
5. Q: We don't know which pump model we need,can u help us?
A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate & select most suitable pump model for u,offer pump solution for u.
