Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Brand Name: | Gempump |
| Certification: | ISO9001 CE |
| Model Number: | CQB32-20-125 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SET/Month |
| Product: | Magnetic Drive Centrifugal Water Pump | Place Of Orign: | China |
|---|---|---|---|
| Application: | Aicd,Alkali | Warranty: | 1 Year |
| Lead Time: | 5 Days | Motor Voltage: | AC220V,AC380V,AC415V |
| Pump Material: | FEP, PFA, PTFE, PVDF, PP | ||
| High Light: | CQB Mag Drive Centrifugal Pump,7.5HP Gasoline Mag Drive Centrifugal Pump,7.5HP magnetic drive centrifugal pump |
||

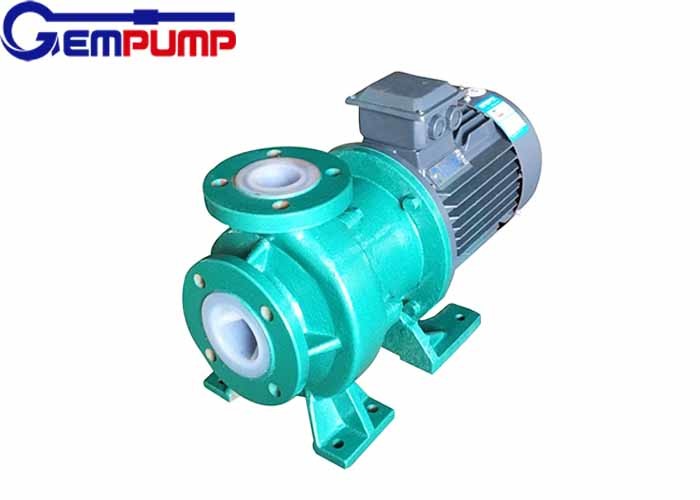

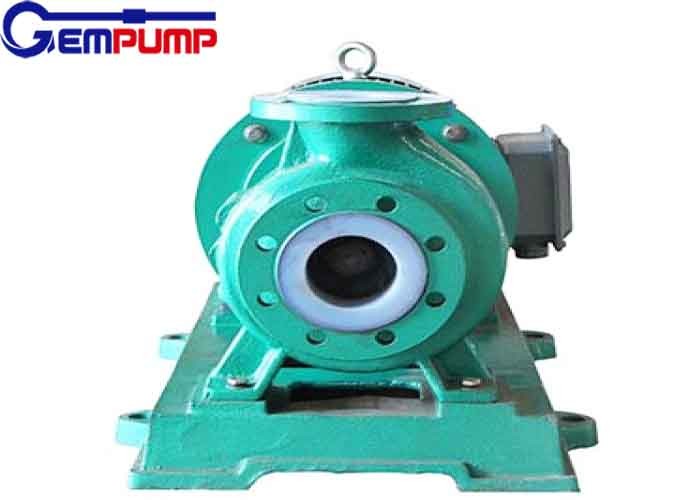

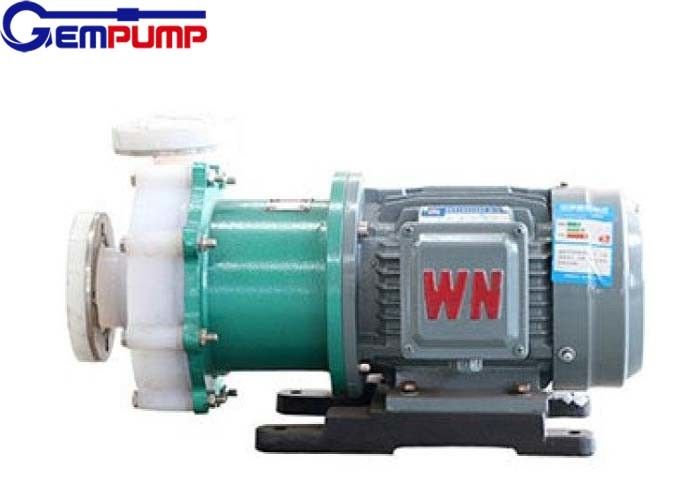

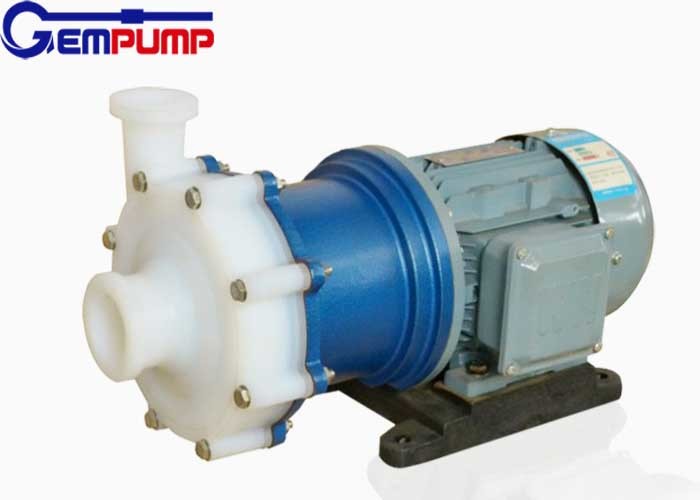

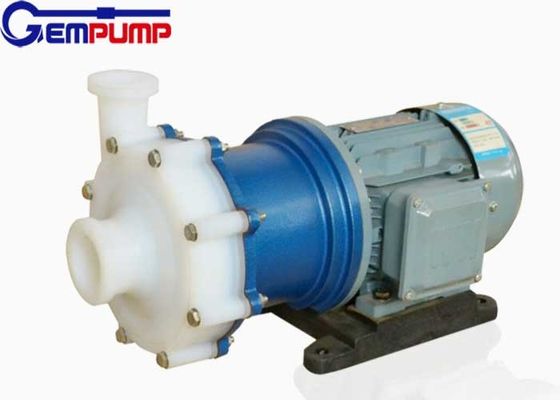

7.5 Hp Gasoline Sea Chemical Cqb Magnetic Drive Centrifugal Water Pump
Magnetic Drive Pump Description:
Product classification:CQB horizontal acid corrosivon resistant magnetic drive circulation pump.
CQB magnetic drive centrifugal pump (CQB magnetic pump). When the outside magnet steel of magnetic drive rotates, the magnetic line of force goes through the gap and spacer sleeve to work on the inside magnet steel driving the pump shaft rotating in step with the motor and transferring torque without contact. The liquid at the drive input end of pump shaft is fully confined inside the spacer sleeve without any dynamic seal, thus avoiding any liquid dripping, leak and spill which is a frequent problem in petrochemical industry. This pump, suitable for conveying toxic, harmful, flammable, explosive and precious liquids, is an ideal pump for factory buildings free from leakage and pollution.
Application field:
Electroplating wastewater, acid cleaning and polishing, pharmaceutical pesticide, fine chemical industry, iron and steel metallurgy
Suitable substances: any concentration of acid, alkali, organic solvents.
Flow:0.6m3/h-100m3/h Head:2m-50m.
Power:0.025kw-18.5kw.
Can be configured according to actual working conditions!
CQB chemical pump for caustic soda.
Fluorinated ethylene propylene or FEP is a copolymer of hexafluoropropylene and tetrafluoroethylene. It differs from the polytetrafluoroethylene resins in that it is melt-processable using conventional injection molding and screw extrusion techniques.
| NO. | Type | Flow (m³/h) | Head (m) | Enmcenoy | NPSH | Import*export | Speed | Power | Welght |
| 1 | CQB16-12-50F | 0.6 | 2 | 8% | 9m | 16mm×12mm | 2900r/min | 0.025KW | 5KG |
| 2 | CQB15-15-65F | 0.8 | 3.2 | 16% | 6m | 15mm×15mm | 2900r/min | 0.18KW | 7KG |
| 3 | CQB20-15-75F | 1.6 | 7 | 22% | 6m | 20mm×15mm | 2900r/min | 0.18KW | 8KG |
| 4 | CQB25-20-100F | 1 | 10.5 | 25% | 6m | 25mm×20mm | 2900r/min | 0.37KW | 12KG |
| 2.5 | 10.5 | 28% | |||||||
| 5 | CQB32-20-110F | 4 | 13.5 | 30% | 6m | 32mm×20mm | 2900r/min | 0.55KW | 18KG |
| 5.5 | 13 | 35% | |||||||
| 6 | CQB40-25-120F | 6.3 | 15 | 42% | 5m | 40mm×25mm | 2900r/min | 0.75KW | 35KG |
| 8 | 12 | 42% | |||||||
| 7 | CQB40-40-100F | 6 | 11 | 43% | 5m | 40mm×40mm | 2900r/min | 0.55KW | 20KG |
| 8 | 9 | 45% | |||||||
| 8 | CQB40-40-125F | 6.5 | 17.5 | 42% | 3.7m | 40mm×40mm | 2900r/min | 1.1KW | 40KG |
| 9 | 16 | 40% | |||||||
| 9 | CQB40-25-160F | 5 | 33 | 45% | 3.5m | 40mm×25mm | 2900r/min | 3KW | 72KG |
| 6.3 | 32 | 50% | |||||||
| 9 | 29 | 57% | |||||||
| 10 | CQB05-32-125F | 7 | 22 | 28% | 35m | 50mm×32mm | 2900r/min | 1.5KW | 45KG |
| 12 | 20 | 42% | |||||||
| 15 | 19 | 46% | |||||||
| 11 | CQB50-32-160F | 7 | 28 | 28% | 3.5m | 50mm×32mm | 2900r/min | 4KW | 80KG |
| 12.5 | 32 | 50% | |||||||
| 15 | 29 | 57% |
