Pumping The Water , Pumping Our Honor
| Place of Origin: | China |
|---|---|
| Certification: | ISO9001 CE |
| Model Number: | D25 |
| Minimum Order Quantity: | 1 set |
| Price: | 1000 USD/SET |
| Packaging Details: | Ply wooden box |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 SET/Month |
| Material: | Cast Iron Or Stainless Steel | Warranty: | 1 Year |
|---|---|---|---|
| Pressure: | High Pressure | Theory: | Multistage Centrifugal |
| High Light: | D Series End Suction Multistage Pump,2900r/Min End Suction Multistage Pump,288m3/H multi stage centrifugal pump |
||

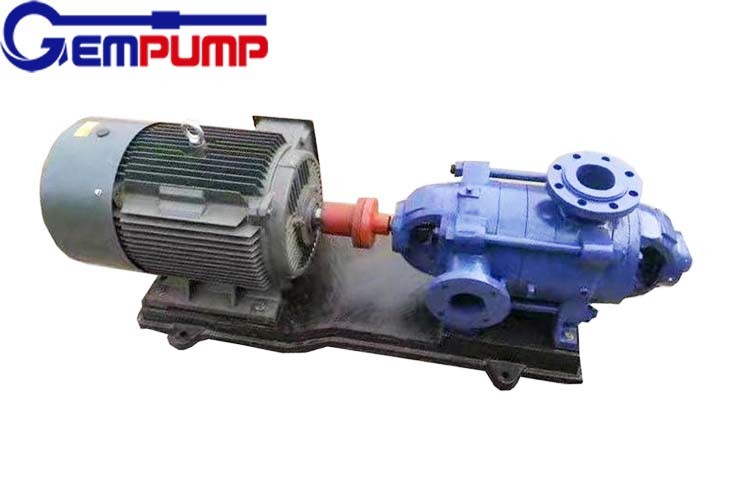

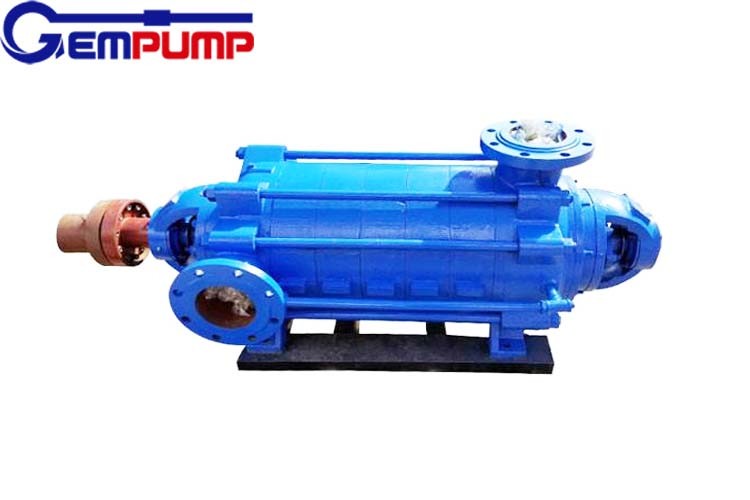

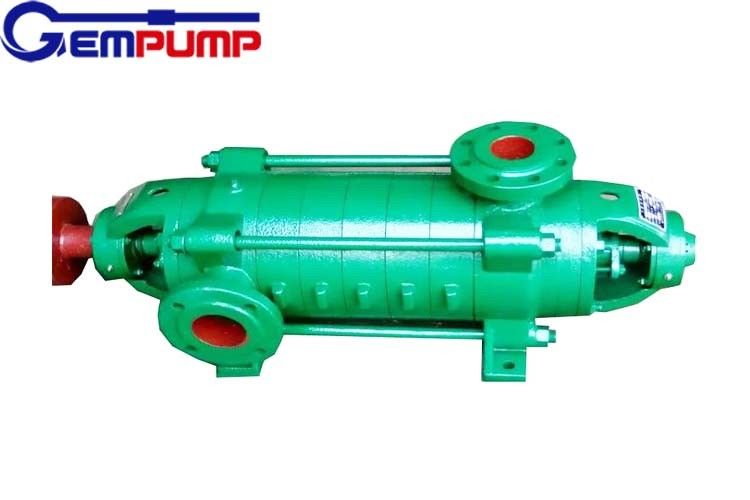

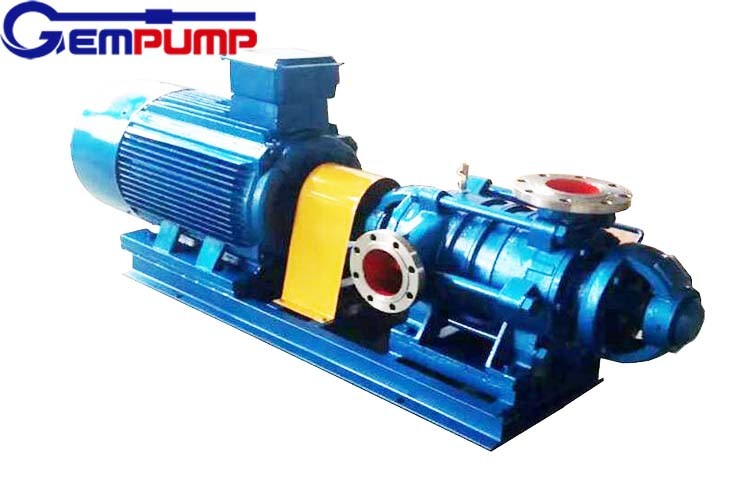

D Series Single-suction Horizontal Boiler Feed Water Multistage Pump
D pump is a kind of single-suction multi-stage segmental centrifugal pump for conveying of fresh water and physical or chemical liquids similar to water to which, the liquid temperature should not be higher than 80℃. As its lift is 16m-370m and its flow is 20m³/h-288 m³/h, it is applicable to water drainage and supply of mines, plants and cities. DF pump is applied to conveying of acidic and alkaline mediums for some of its components have been changed, and ‘F’ in its model implies that its performance, size and material are totally different from the pumps whose components have not been changed.
| Item | Horizontal multistage centrifugal pump |
| Suction | End |
| Model | D/DG series |
| Material | Cast iron or stainless steel |
| Color | Blue or others |
| Mode | Horizontal |
| Drive | Coupling |
| Impeller | Close impeller |
| Seal | Pack seal or mechanical seal |
| Speed | 2900r/min,1450r/min |
| Theory | Centrifugal pump |
| Character | High pressure, multistage |
| Usage | Irrigation, high lift and boiler feed |
| Power | Electric or diesel engine |
| Standard or Non | Standard |
| Shaft | Special material shaft |
| Outlet diameter | 45-200mm |
| Capacity | 6.3-288m³/h |
| Head | 75-600m |
| Power | 5.5-350kw |
| Warranty | 12 months |
| Certificate | ISO9001:2008 |
| OEM | Acceptable |
| Feature | <110 degree C, high pressure |
Model meaning:
D(DG,DM,DF,DY)450-60x4
D-- Multi-stage horizonatl centrifugal pump
DM--Multi-stage wearable centrifugal pump
DF--Multi-stage anti-corrosivecentrifugal pump
DY--Multi-stage centrifugal oil pump
450--The flow is 450m3/h at design point
60--The single stage head is 60m at design point
4--The number stage is 4 stages
Pump Application:
long distance water transferring
boiling water feeding and transferring
water system boosting
agricultural irrigation
mining water supply
fire fighting
offshore projects
