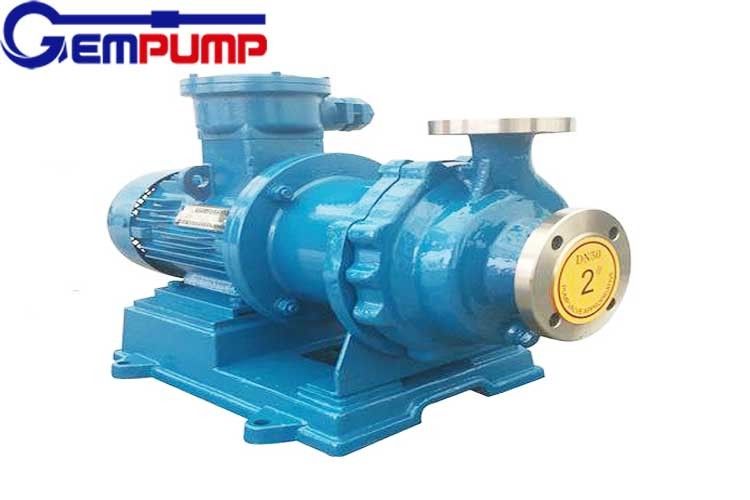

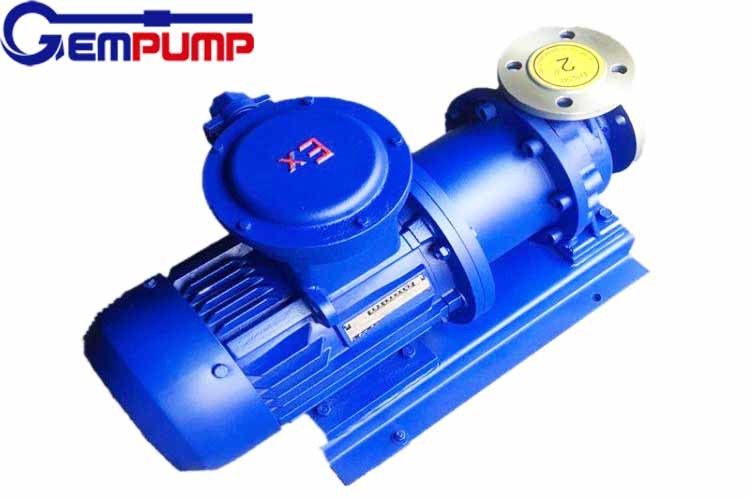

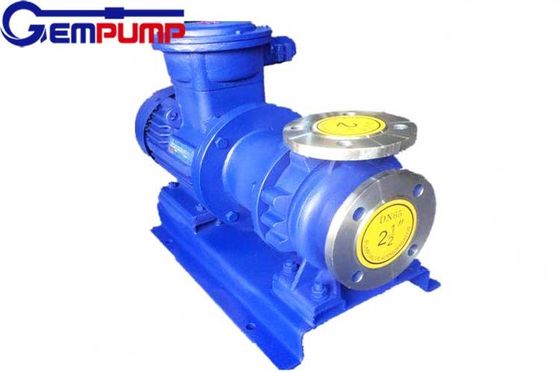

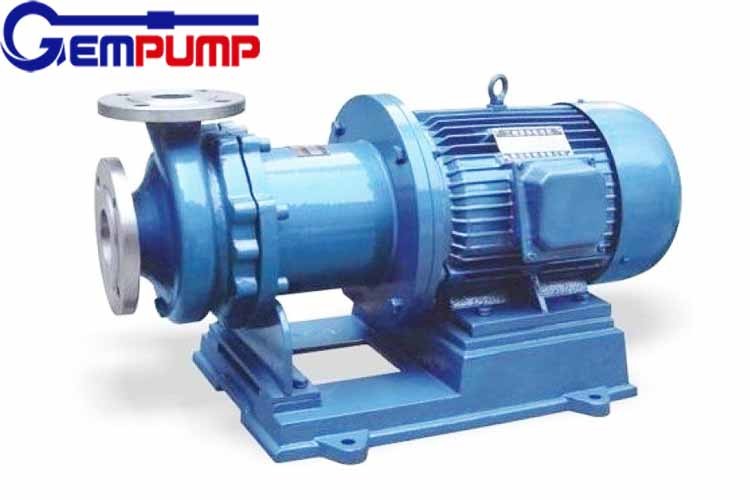

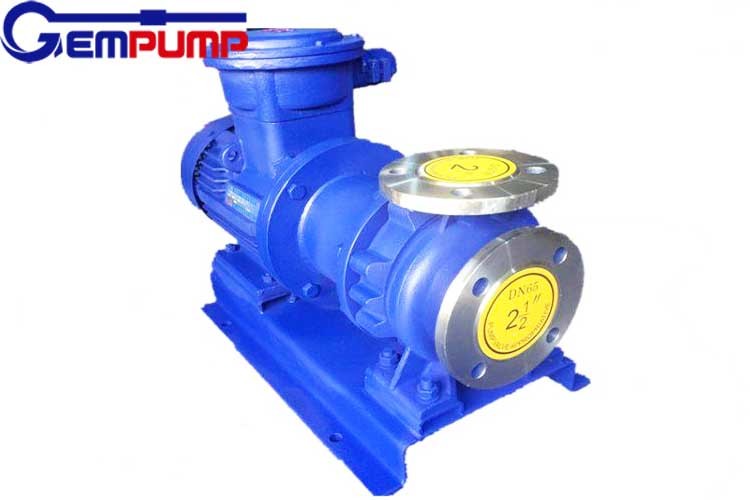

55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump

small.img.alt
small.img.alt 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump small.img.alt 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump small.img.alt 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump small.img.alt 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump
Basic Information
Place of Origin: China
Certification: ISO9001 CE
Model Number: CQB
Minimum Order Quantity: 1 set
Price: 1000 USD/SET
Packaging Details: Ply wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 SET/Month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: CQB Magnetic Pump Warranty: 1 Year
Application: Acid,oil,sea Water Working Principle: Centrifugal, Magnetic
Main Applications:: Chemical Driver: Electric Motor
Power Specs: 380/415 V 3phase 50hz/60hz Max.permissible Fluid Temperature: 100°C(212°F)/280°C(536°F)
Type Of Connection: Flange Installation Position: Horizontal
High Light:

55KW High Temperature Circulating Pump

,

380V 415V Sulphuric Acid Transfer Pump

,

55KW Sulphuric Acid Transfer Pump

CQB high temperature circulating pump acid transfer magnetic pump



CQB Magnetic Ppump Summarize



1. CQ-B stainless steel no-leak chemical liquid pump magnetic drive pump is a new product with the working princ iple of a permanently magnetic clutch applied on a centrifugal pump and features a reasonable design, advanced technologies, full-seal, non-leak and anti-corrosion

2. It uses a static seal instead of a dynamic one so as to have the flow-passing parts in a fully sealed state, completely settling the problems of run-away, pop-up and drop unable to avoid with the mechanical seals of other pumps.

3. The magnetic pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.

4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids and for completing with cycling water equipments and filters in che-mical industry, pharmacy, petroleum, electric plating, food movie and photograph development, scientific research organ, national defense industry etc.

5. Especially for pumping the easily leaking, combustible and explosive liquids, it is more ideal to use this pump.

6. Suitable for transporting the liquid containing no hard grains and fiber and with the suck-in pressure not more than 0.2MPa, the maximum working pressure 1.6MPa, the density not more than 1600Kg/m3 and the graininess not bigger than 30×10-6m2 /S.

CQB Magnetic pump details:



Working Principle: Centrifugal, Magnetic
Main applications:        Chemical
Driver: Electric motor
Power Specs: 380/415 V 3phase 50hz/60hz
Max.permissible fluid temperature: 100°C(212°F)/280°C(536°F)
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Stainless steel/Stainless steel
Shaft seal type:   Static sealing
Free passage: 0 mm
Maximum drive rating:  55KW(75HP)
Maximum caliber:   100mm(4inch)
Maximum discharge-side pressure: 0.8MPa(8bar)
Maximum head: 80m(262.4ft)
Flow rate range:   3.2-100m3/h(14.1-440 US.GPM)



CQB Magnetic pump performance:



Model Caliber(mm) Capacity Head Motor power Voltage
Inlet Outlet (m3/h) (m) (KW) (Phase)
CQB32-20-125 32 20 3.2 20 1.1 3phase
CQB32-20-160 32 20 3.2 32 1.5 3phase
CQB40-25-105 40 25 6.3 12.5 1.1 3phase
CQB40-25-125 40 25 6.3 20 2.2 3phase
CQB40-25-160 40 25 6.3 32 3 3phase
CQB40-25-200 40 25 6.3 50 5.5 3phase
CQB50-40-85 50 40 12.5 8 1.1 3phase
CQB50-32-105 50 32 12.5 12.5 1.5 3phase
CQB50-32-125 50 32 12.5 20 3 3phase
CQB50-32-160 50 32 12.5 32 4 3phase
CQB50-32-200 50 32 12.5 50 7.5 3phase
CQB50-32-250 50 32 12.5 80 18.5 3phase
CQB65-50-125 65 50 25 20 4 3phase
CQB65-50-160 65 50 25 32 7.5 3phase
CQB65-40-200 65 40 25 50 15 3phase
CQB65-40-250 65 40 25 80 22 3phase
CQB80-65-125 80 65 50 20 7.5 3phase
CQB80-65-160 80 65 50 32 11 3phase
CQB80-50-200 80 50 50 50 22 3phase
CQB80-50-250 80 50 50 80 37 3phase
CQB100-80-125 100 80 100 20 15 3phase
CQB100-80-160 100 80 100 32 22 3phase
CQB100-65-200 100 65 100 50 37 3phase
CQB100-65-250 100 65 100 80 55 3phase

55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 0

55KW High Temperature Circulating Pump 380V 415V Sulphuric Acid Transfer Pump 1







Tag:

CQB-F Magnetic Centrifugal Pump,

100M3/H Acid Resistant Pump,

PFA Mag Drive Centrifugal Pump
