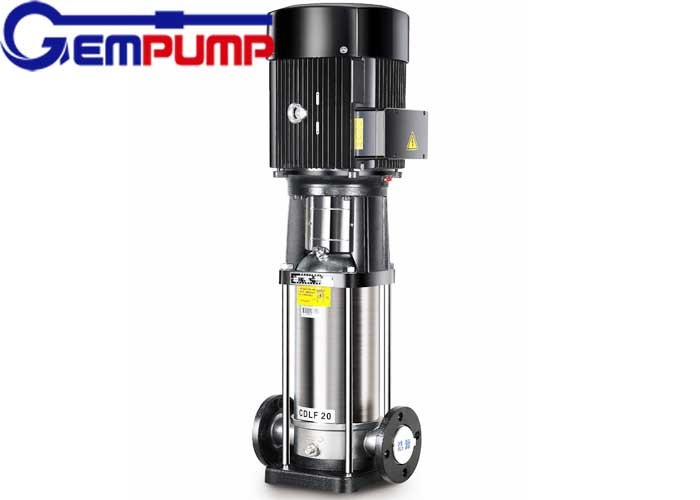

CDL SS316 Vertical Inline Multistage Pump AC220V AC380V

CNP NANFANG Pump CDL Electric Multistage For High Discharge Vertical Multistage Pump

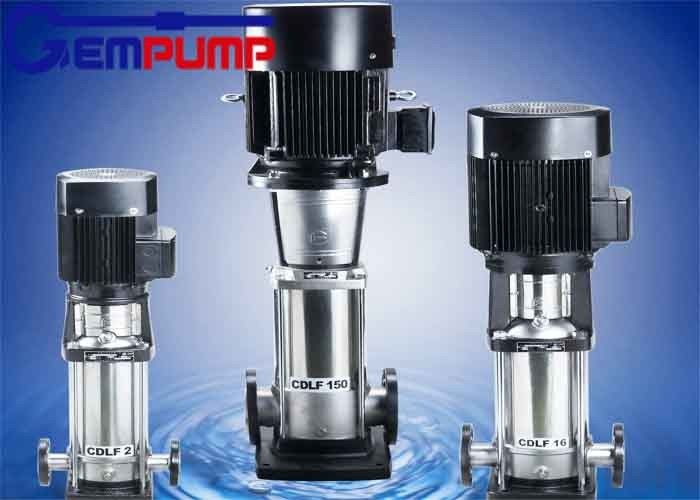

1, CDLF series light stainless steel vertical multistage pump

CDLF series light stainless steel vertical multi-stage centrifugal pump (hereinafter referred to as multi-stage pump) is a non self-priming vertical multi-stage centrifugal pump designed and manufactured by absorbing domestic and foreign technology. It adopts standard vertical motor and quick installation mechanical seal, which is easy to replace.

The overflow part of the pump is made of stainless steel (304-316), which is suitable for mild corrosive medium. This product can replace similar products such as Cr and CrN abroad. After the product is put into the market, it is deeply loved

by the majority of users for its high efficiency, energy saving, good quality and wide range of use.



2, CDLF series light stainless steel vertical multi-stage pump features:

1. The use of excellent model and hydraulic technology greatly improves the service life of the pump. 2. As the shaft seal is made of cemented carbide and fluororubber, the temperature of pump running and conveying medium can be increased. 3. The overflow part of the pump is made of stainless steel plate stamping and welding, which makes the pump suitable for mild corrosive medium. 4. It has compact structure, small volume, light weight, low noise, remarkable energy saving effect and convenient maintenance. 5. The water inlet and outlet of the multi-stage pump are located on the same horizontal line of the pump seat, which can be directly used in the pipeline. 6. Using standard motor, users can easily equip motor according to their needs. 7. According to the needs of users, intelligent protector can be equipped to effectively protect the pump from dry running, phase loss and overload.



3, CDLF series light stainless steel vertical multistage pump conveying medium:

3.1. Thin, clean, non flammable and explosive media without solid particles or fibers.

3.2. Such as mineral water, softened water, pure water, clean oil and other light chemical media.

3.3. The main material of the pump is stainless steel, which can be used to transport mild corrosive medium.



4, CDLF series light stainless steel vertical multistage pump model significance:

CNP NANFANG Vertial Pump Description
CDL / CDLF is a kind of vertical multi-functional centrifugal pumps.It can be used to convey various medium at different
temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is
suitable for slightly corrosive liquid.

Vertical Multistage Stainless Steel Pump Application
1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated
purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

High Discharge CNP Pump Operation Conditions
1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of
high-power.
6) PH 5-8
Note:Special demands can be negotiated.



FAQ

Q: What's your MOQ of this item?
A: 1~2PCS

Q: What is the lead time?
A: 15~30 days after receiving your payment, it depends on pumps.

Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card

Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from
the date of delivery.

Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
